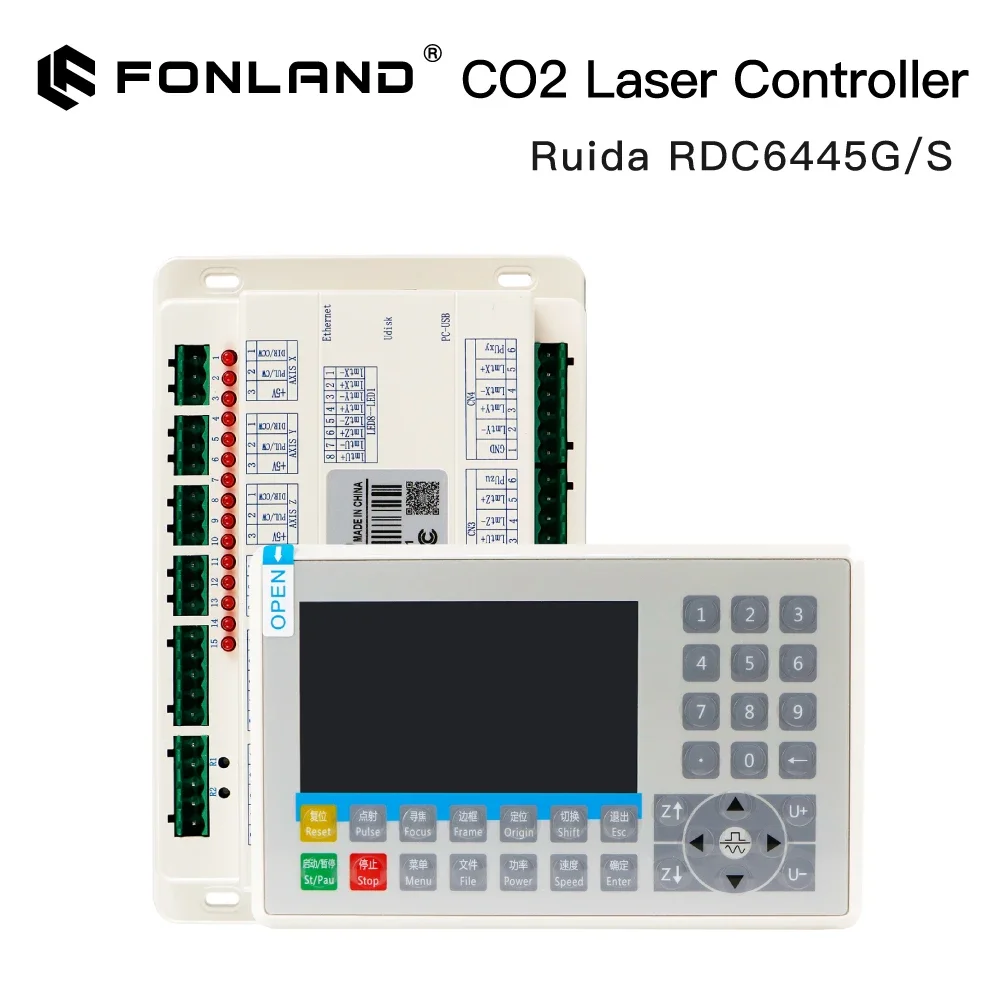

Fonland Ruida RDC6445 RDC6445G RDC6445S Controller for Co2 Laser Engraving Cutting Machine Upgrade RDC6442 RDC6442G

Name:Co2 Laser Controller

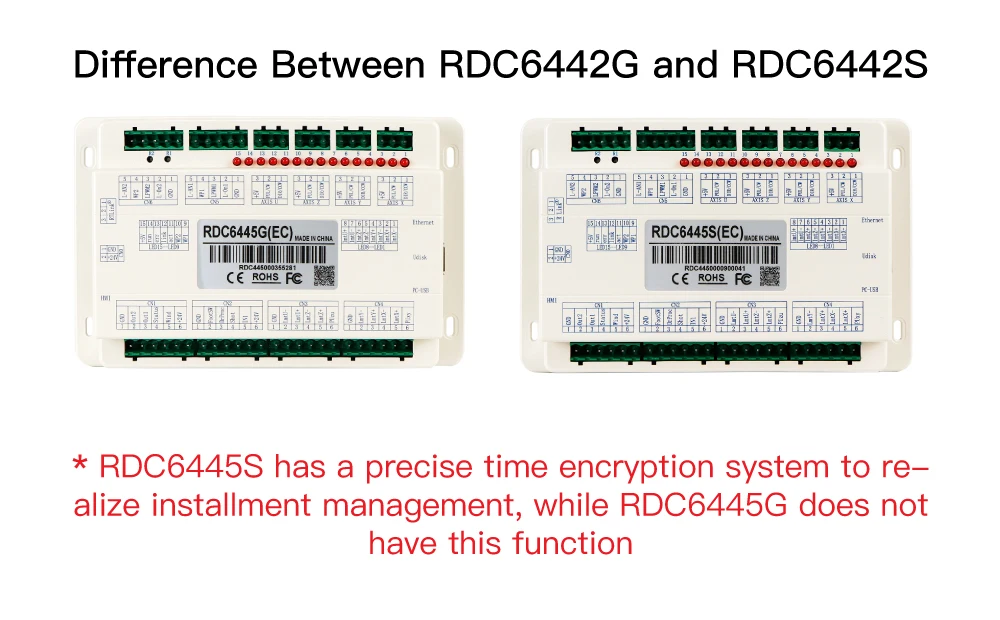

Model: Ruida RDC6445G/S

Feature:

• Working standalone.128M memory on board.

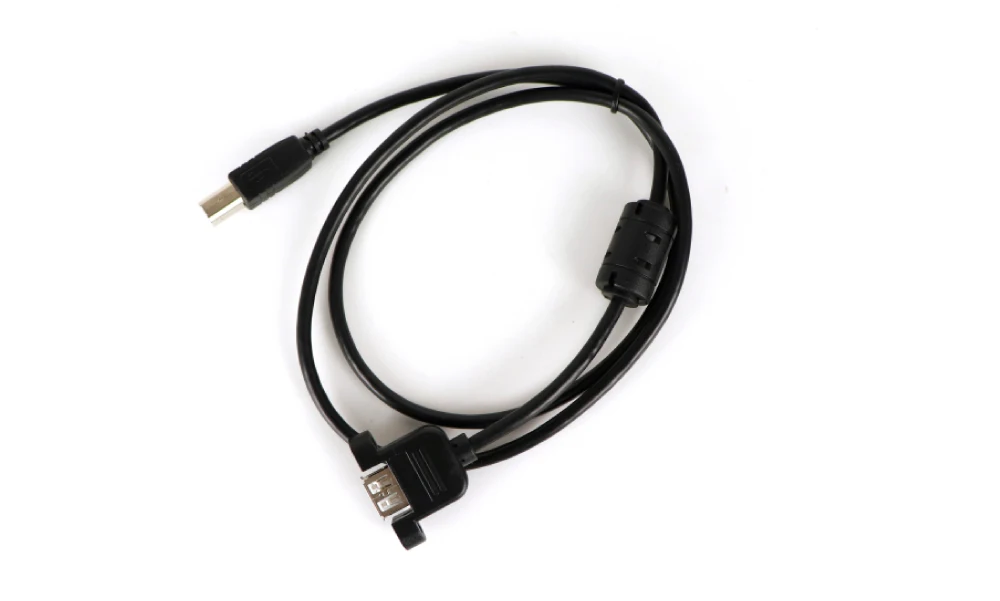

• Support USB/Ethernet communication and U disk.
• Application software: RDWorksV8. AutoCAD, CorelDraw and Al plug-in software.
• Support 4 axes motion control and 2 channels laser control.

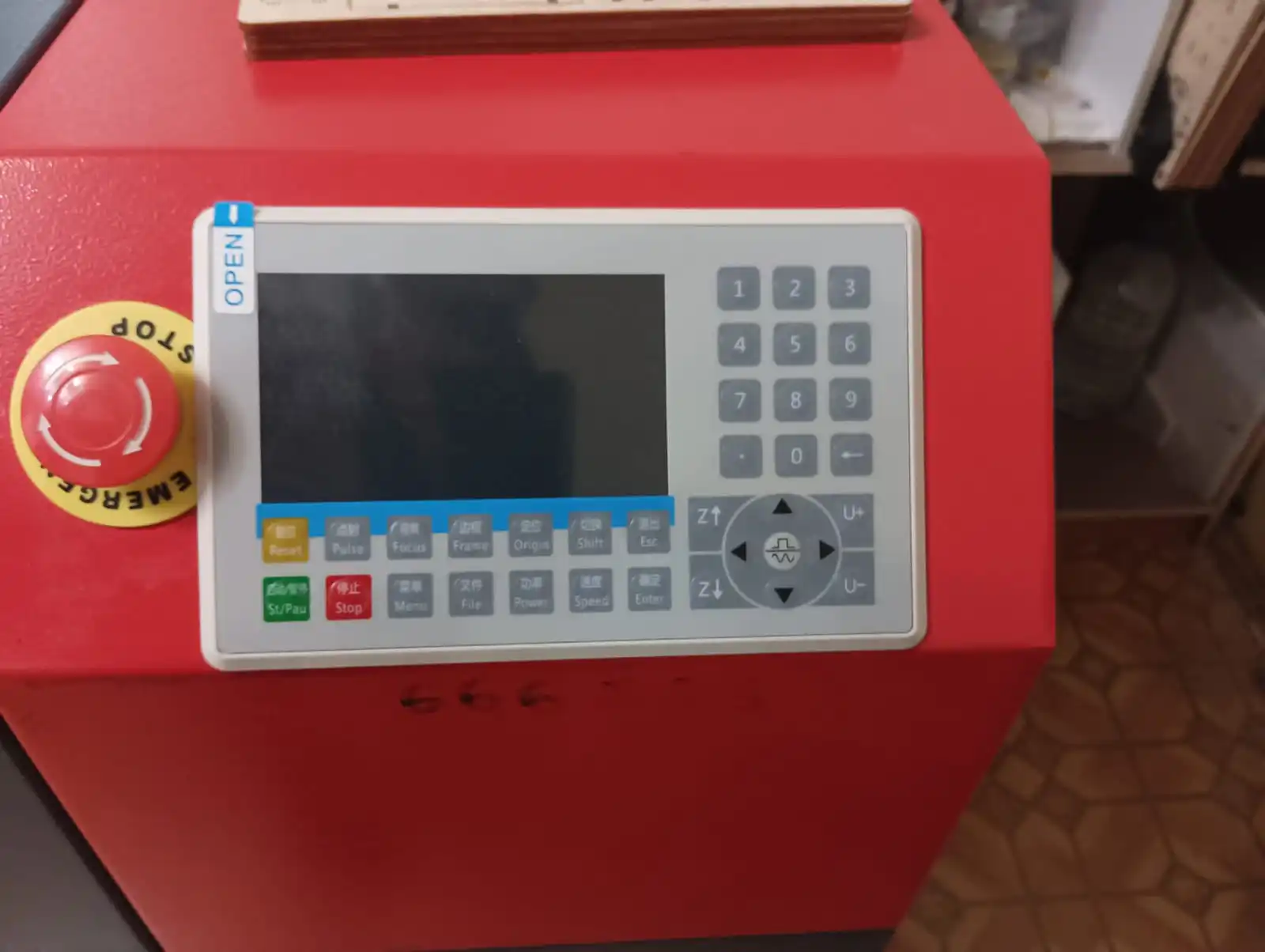

• Support panel to modify manufacturer/user parameters.
• Support manual point/continuous switch,automatic focus and docking point setting functions.
• Yaxis and U axis feeding synchronously.
• Support fixed single and double-head cutting,Double-head shift processing and over-breadth cutting processing.

Parameters:

• Axis: 4 axis.Pulse+ DIR sianalmaximum Pulse freauency y is 400KHZ

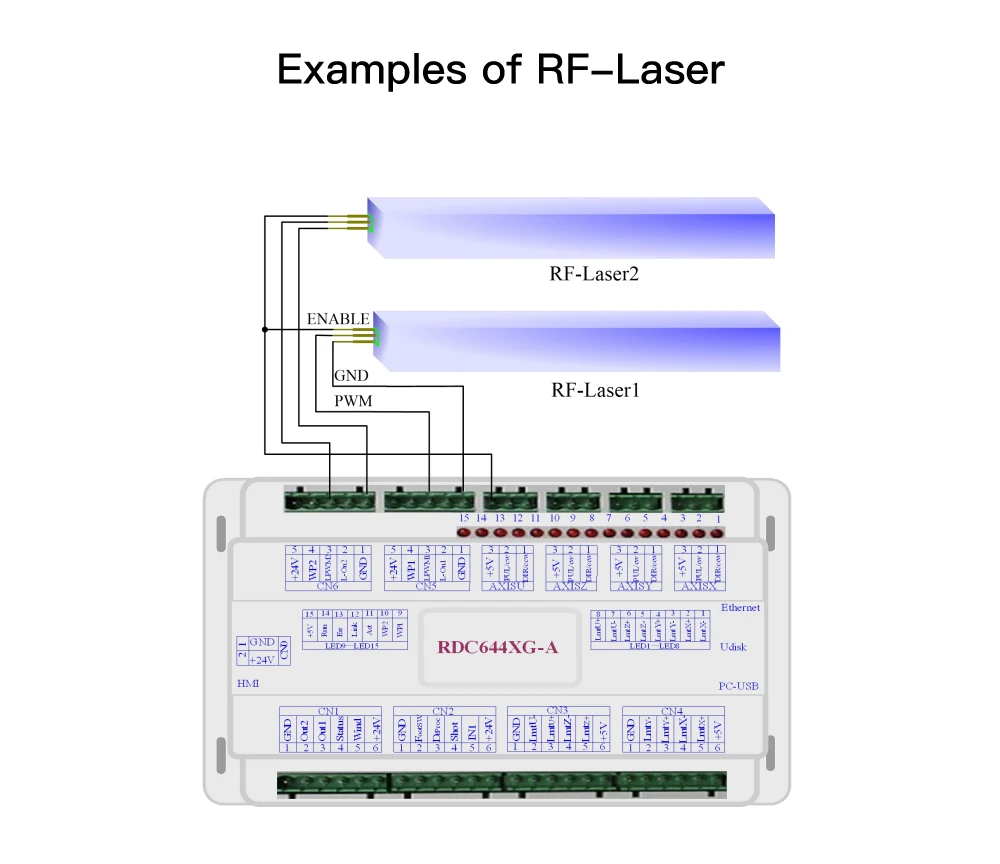

• Laser control: 2 channels
• Safety protection: Security protection and software protection
• Rotary axis: Support
• Engraving function: Planar engraving/grayscale engraving and 3D engraving
• Docking position: Support manual input/automatic extraction of docking coordinates
• Adaptive: CO2 glass tube, CO2 metal RF, fiber and UV laser
• Pecision: +/-0.5 pulse
• Virtual print: Support
• Product licensing: Support
• Firmware upgrade: Support remote upgrade the mainboard and touch screen program

Multiple Languages:

• Support simplified Chinese, traditional Chinese,English,Japaness, German, Russia, Spanish,Portuguese,Korean,French and other 16 languages.

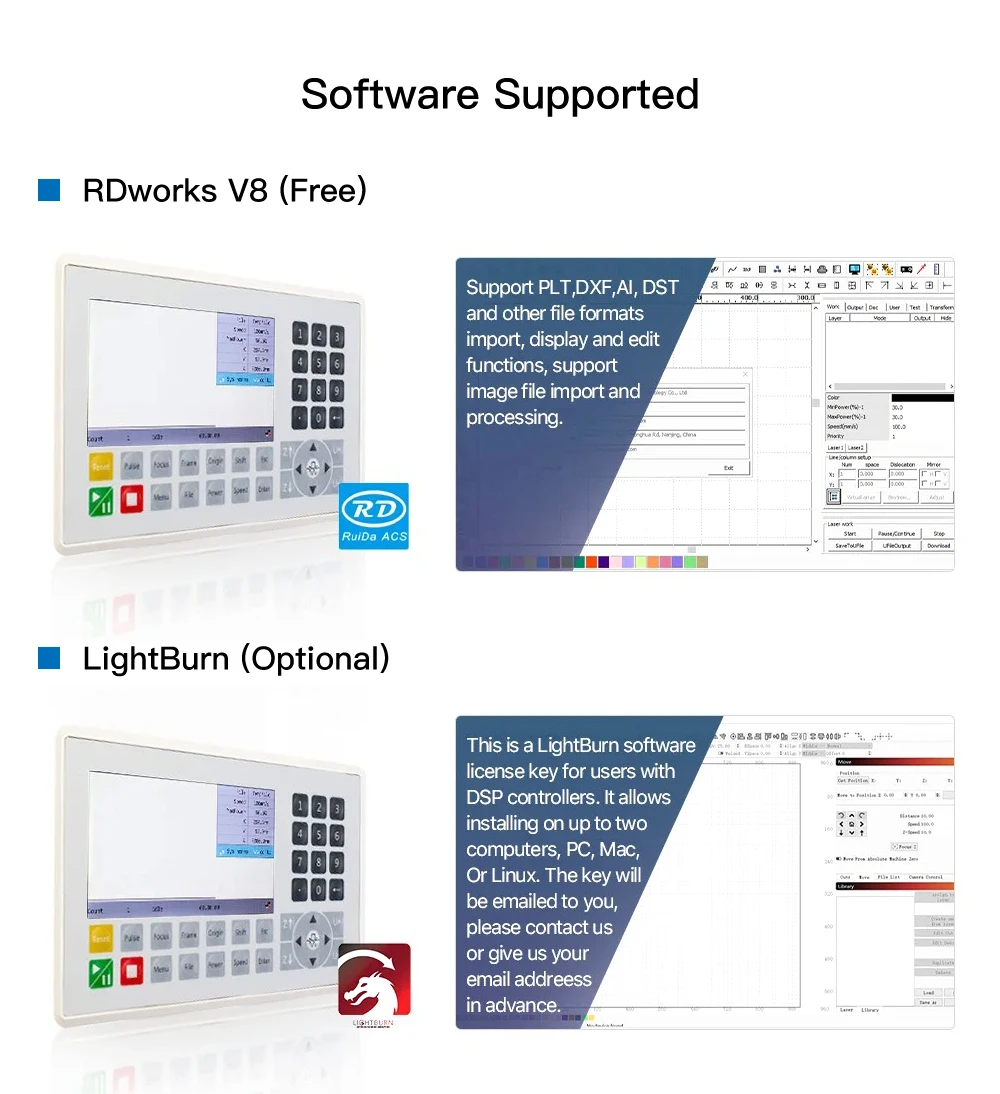

Software RDworks V8:

• Support PLT,DXF,AI,DST and other file formats, display and edit functions, support image file import ans peocessing.

Application Area:

• Focus on non-metal cutting, suitable for leather, fobric, sign and 3C application fields.
