Trocen AWC7813 AWC708S Co2 Laser Controller System for Co2 Laser Engraving Cutting Machine Replace 7AWC708C Lite ruida Leetro

Support Language: Chinese, English, Português, Türk dili，русский， Le Français,한국어, Arabic

AWC7813 Introduction:

Featured with single/double-head cutting that can meet the requirement of laser in low/medium power, is designated for laser cutting/engraving machine. Seamless-shift between working machines is possible when new elements of real-time tracking and go-back-to-positioning-point that make sure of machine safety and enhance accuracy is added.

Features:

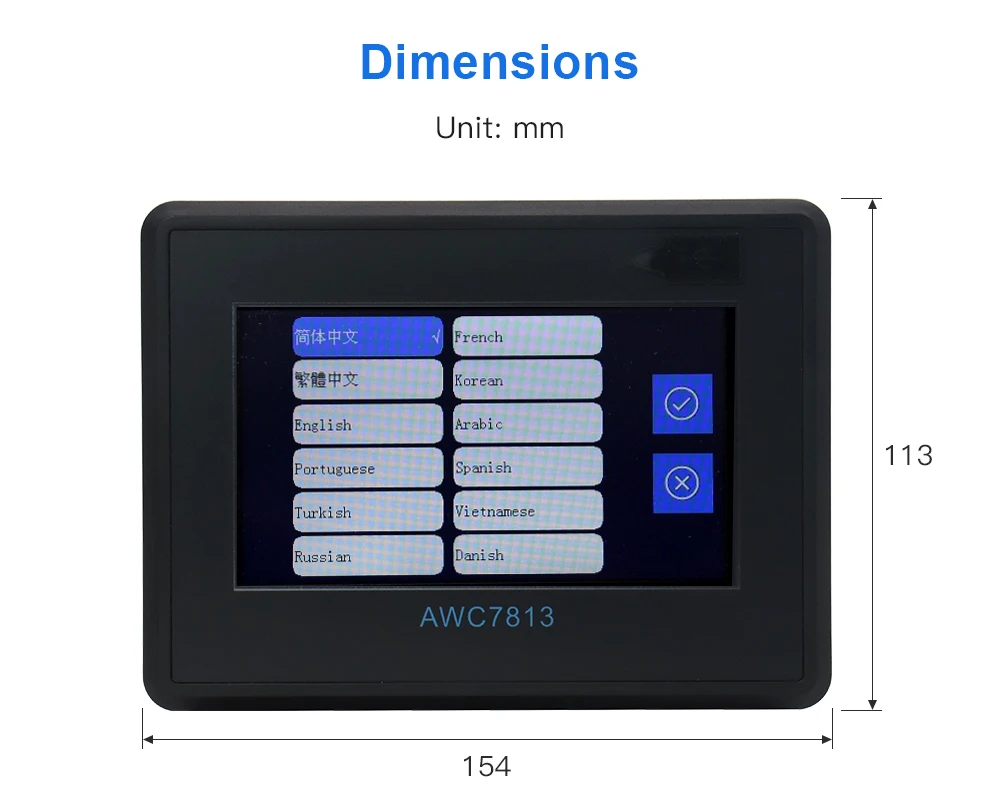

1. 5-inch TFT LCD touch screen, intuitive and simple operation interface

2. Using a new 32-bit high-speed DSP to make the system run faster and more stable;

3. Product is easy to operate, saving time after training;

4. Support U disk offline file preview function, real-time display of laser head movement track;

5. Device parameters can be set completely away from the PC;

6. All optocouplers isolate external electromagnetic interference, and the system works stably and reliably;

7. Support multi-languauge;

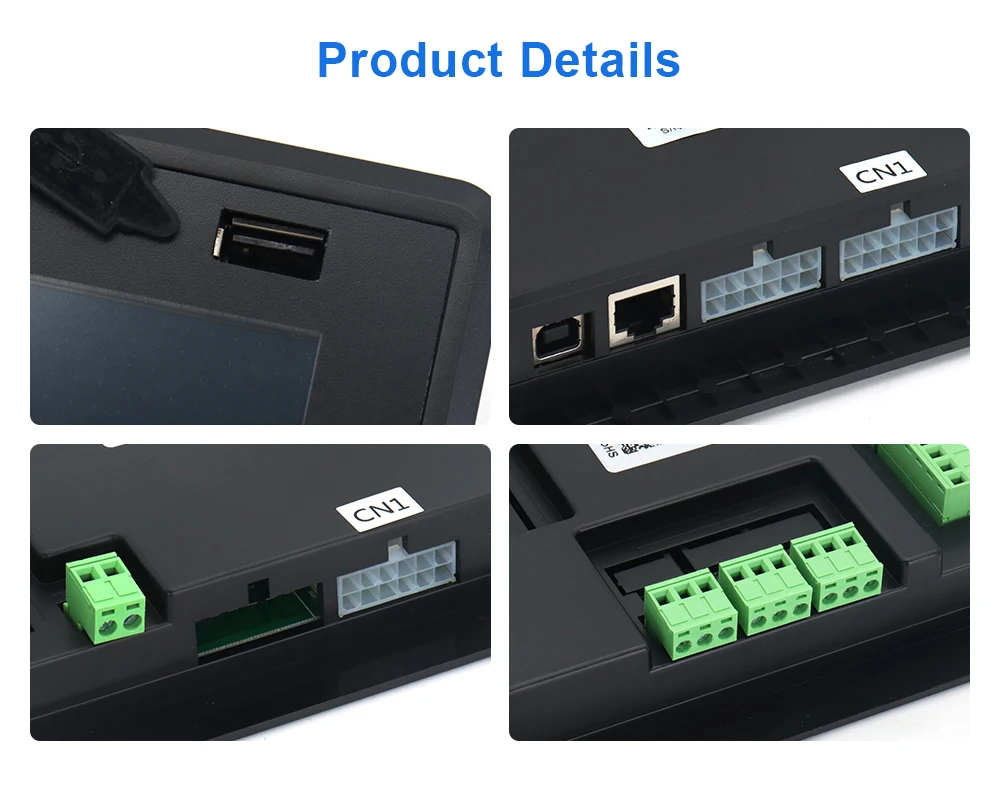

8. Support USB2.0 high-speed interface, U disk read and write files are more stable, can identify various brands of U disk;

9. Support network communication and USB communication, the transmission speed is faster and more stable;

10. Support Z-axis auto focus, Y-axis dual drive function;

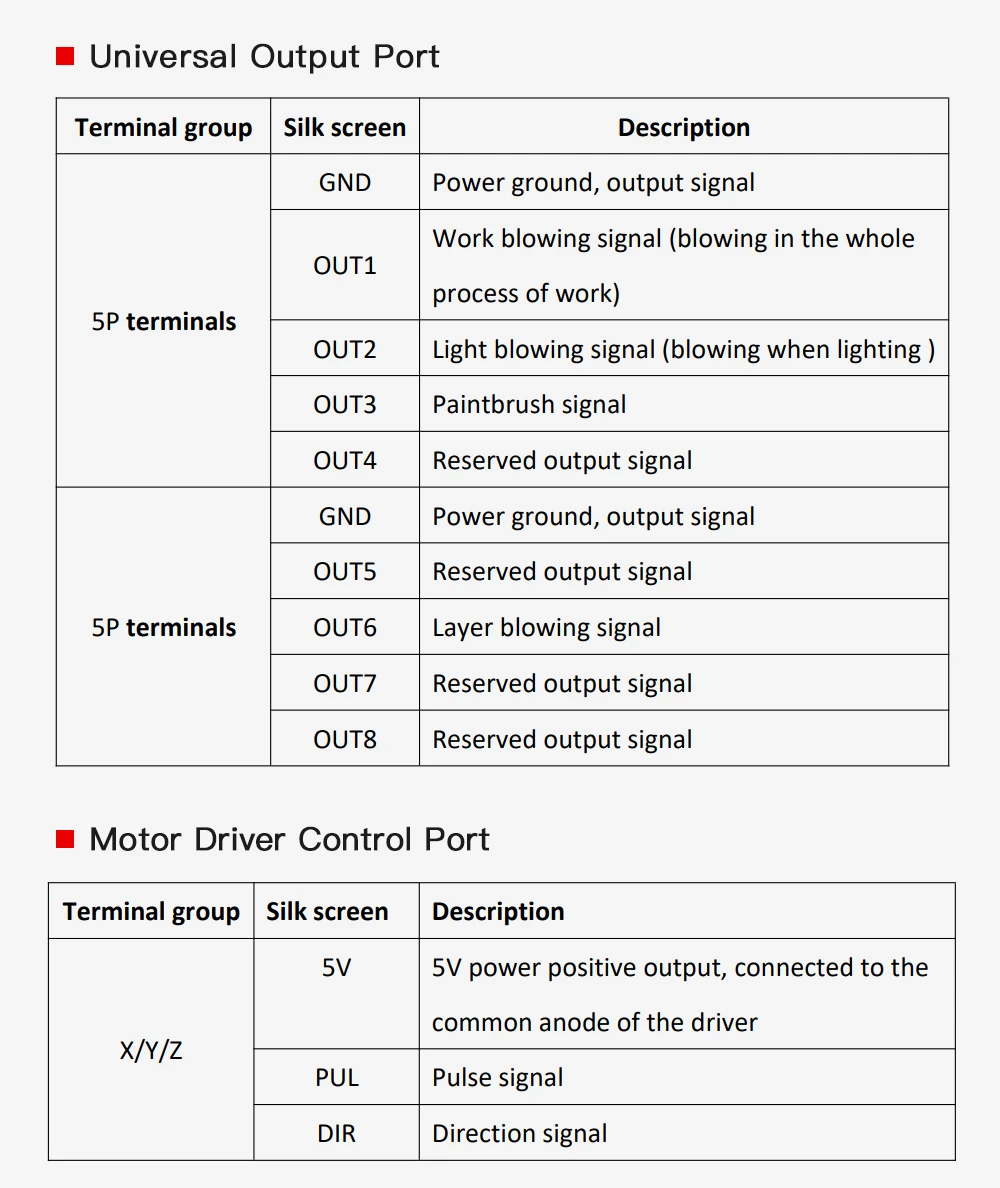

11. Support full blowing, work blowing, layer blowing

12. Intelligent diagnosis system self-fault;

13. One key to switch the way of manually moving the axis;

14. A variety of humanized positioning modes and return modes, which are convenient for customers with different habits to operate the machine;

15. One-key continuous cutting, convenient to continue cutting after the processing file is interrupted in any way;

16. When adjusting the cutting effect, there are few setting parameters, and the user is easy to hold.
