GRBL 1.1 USB Port CNC Engraving Machine Control Board 3-Axis Control Board Integrated Driver For 2117,1610,2418,3018 Machine
Package Included：
1. 1 x Control board (incl a USB cable).

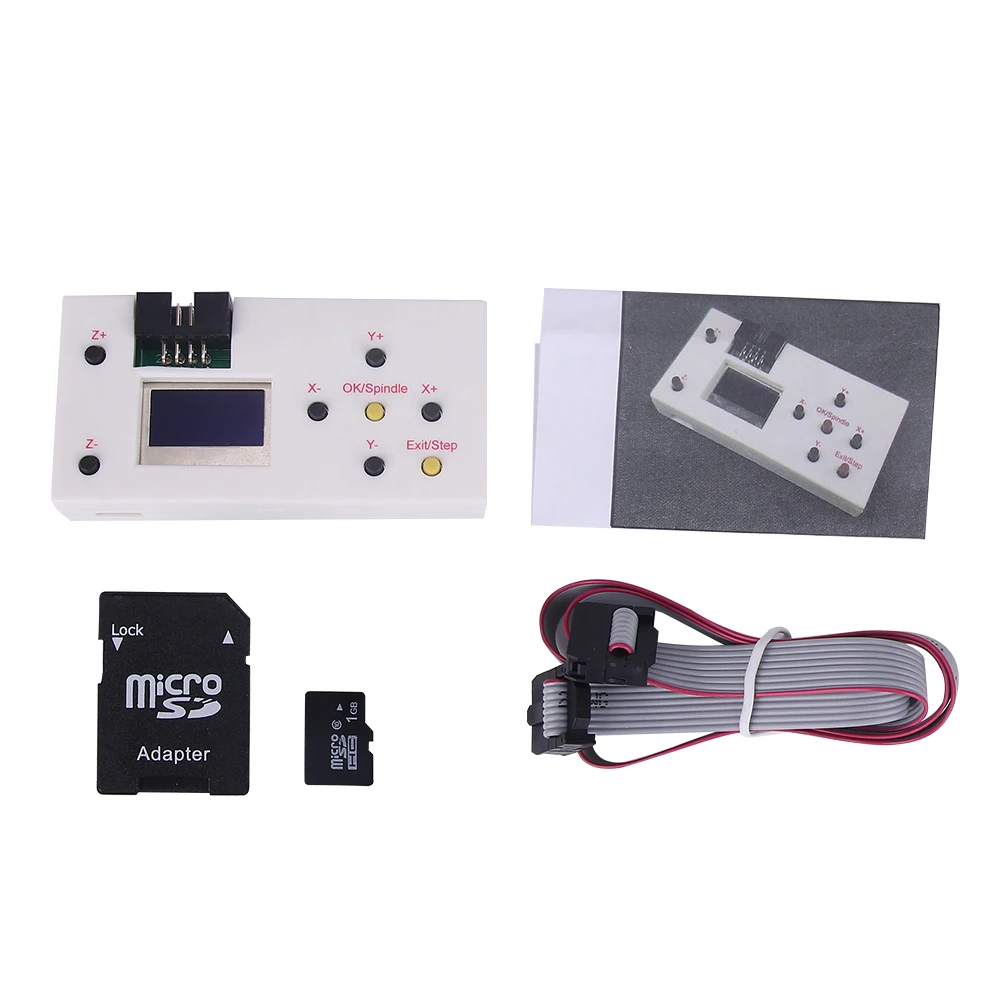

2. 1 x Offline controller (incl 1G SD Card).
3. 1 x Control board + Offline controller
If you want the control board, please choose the GRBL Control Board option, not the offline controller.
Parameter of control board:
Connection: USB (USB-CH340)
Software: GRBL controller, Universal Gcode Sender
Master chip: atmel 328P (arduino nano)
Stepper motor driver: A4988
Spindle drive chip: MOSFET, the highest 60V (recommendation within 48V, current: within 10A )
Support stepper motor: 12V, maximum current of 2A or less is recommended within 1.5A and additional heat. (Any stepper motor 42, 57)
Laser engraving: Support

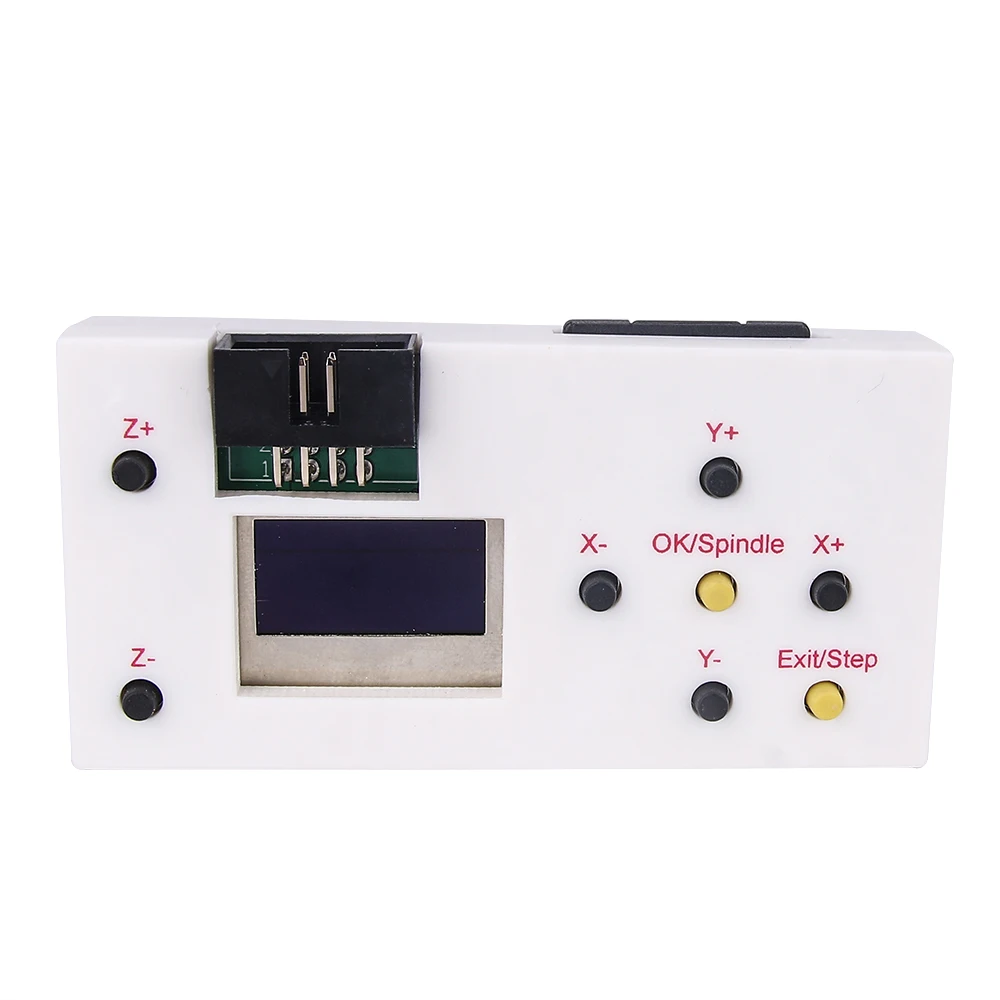

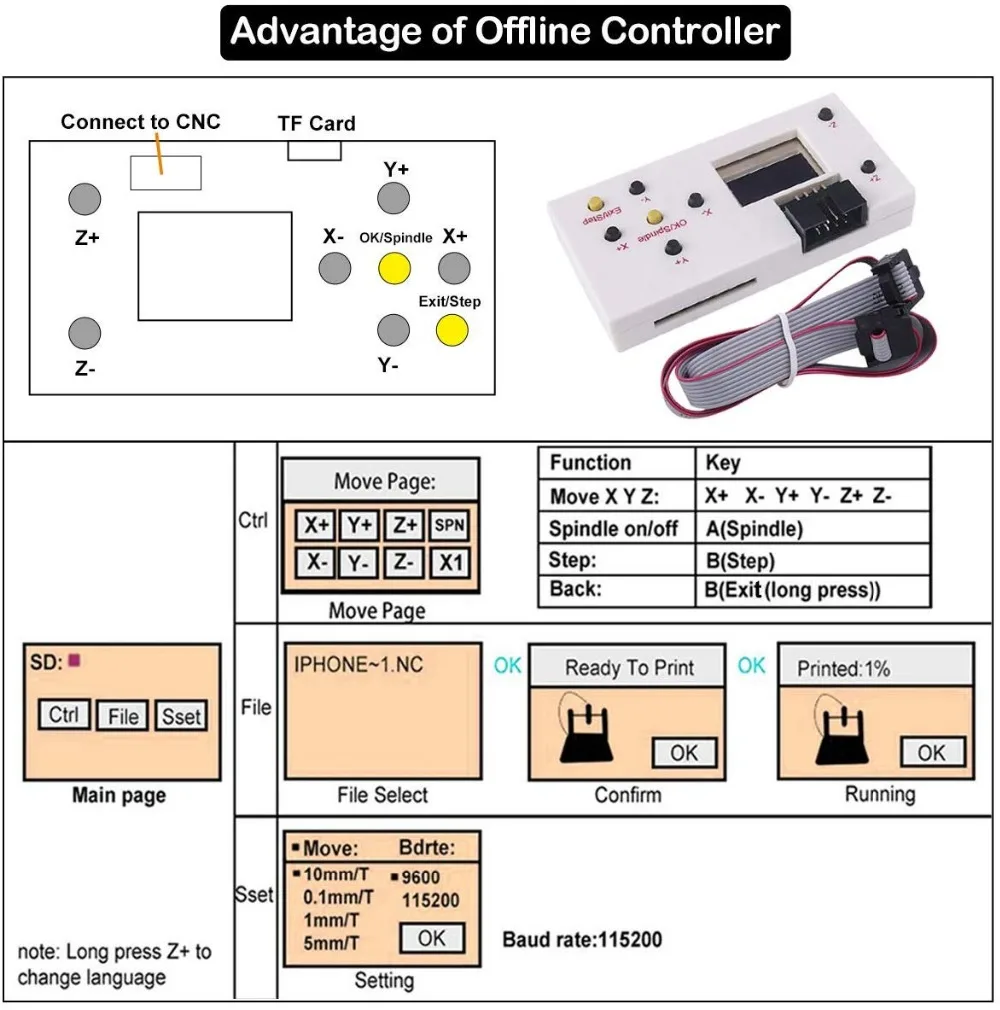

Specification of offline controller:
Press Z+ and Z- , the Z axis will move up and down.
Press X+ and X- , the X axis will move left and right.
Press Y+ and Y- , the Y axis will move Front and Back.
Press SPIN: Spindle on (Laser on), Spindle off (laser off)
Press SMOD: return
Press Z+ for 5 seconds, change the Language to English.
SD card: Included, you need a SD card reader to write into the root directory G-code files.
PLEASE NOTE:
Not every engraving machine can use our control panel, it is a matter of compatibility. It is recommended that you are not sure whether it can be used, please consult our customer service before buying.
PLEASE NOTE
1. Not every engraving machine can use our control panel, it is a matter of compatibility.
It is recommended that you are not sure whether it can be used, please consult our customer service before buying.

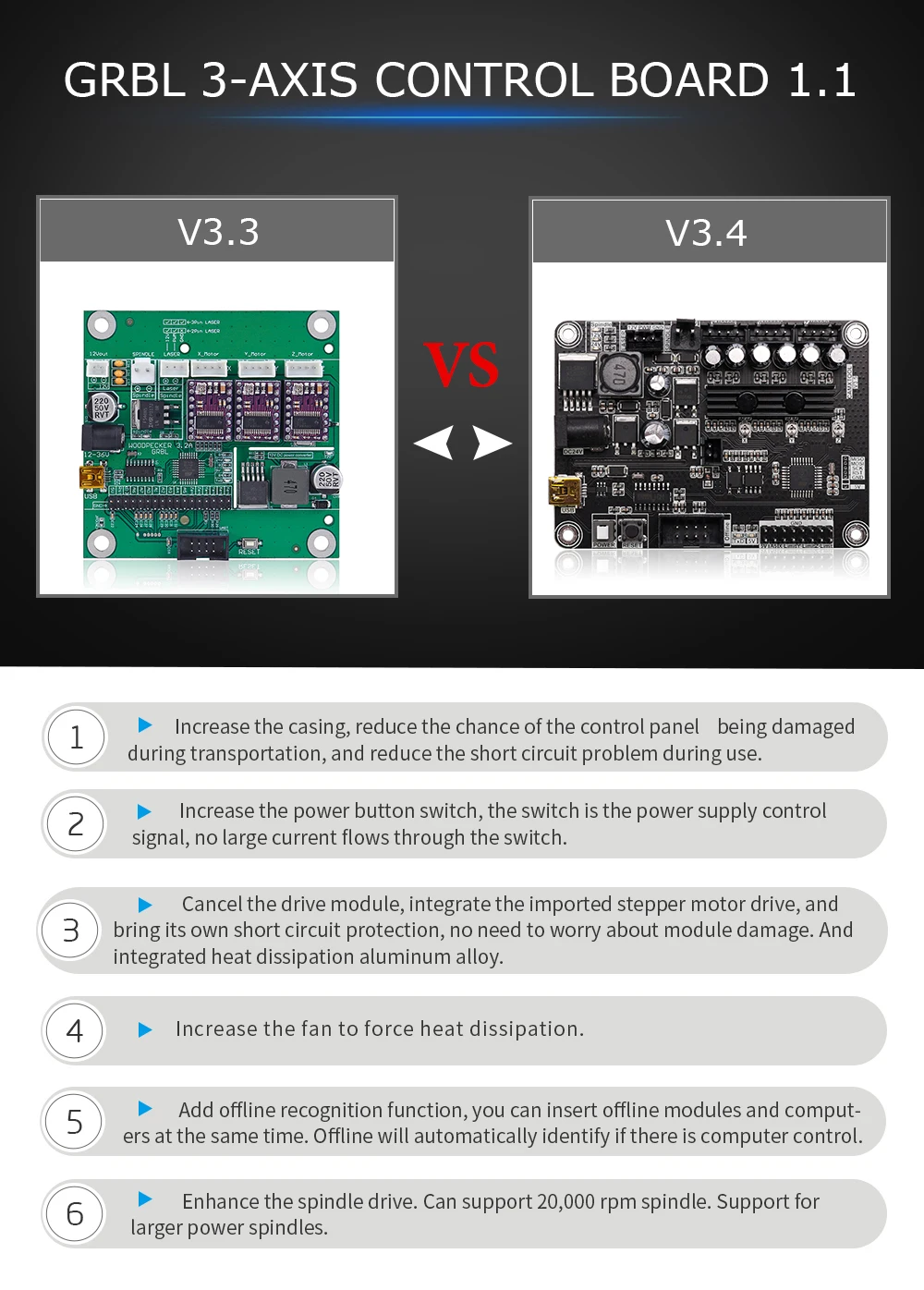

2. Our control panel has been updated to the latest version as shown below:
However, there are still some old versions in stock, which will be shipped randomly. Thank you for your understanding!

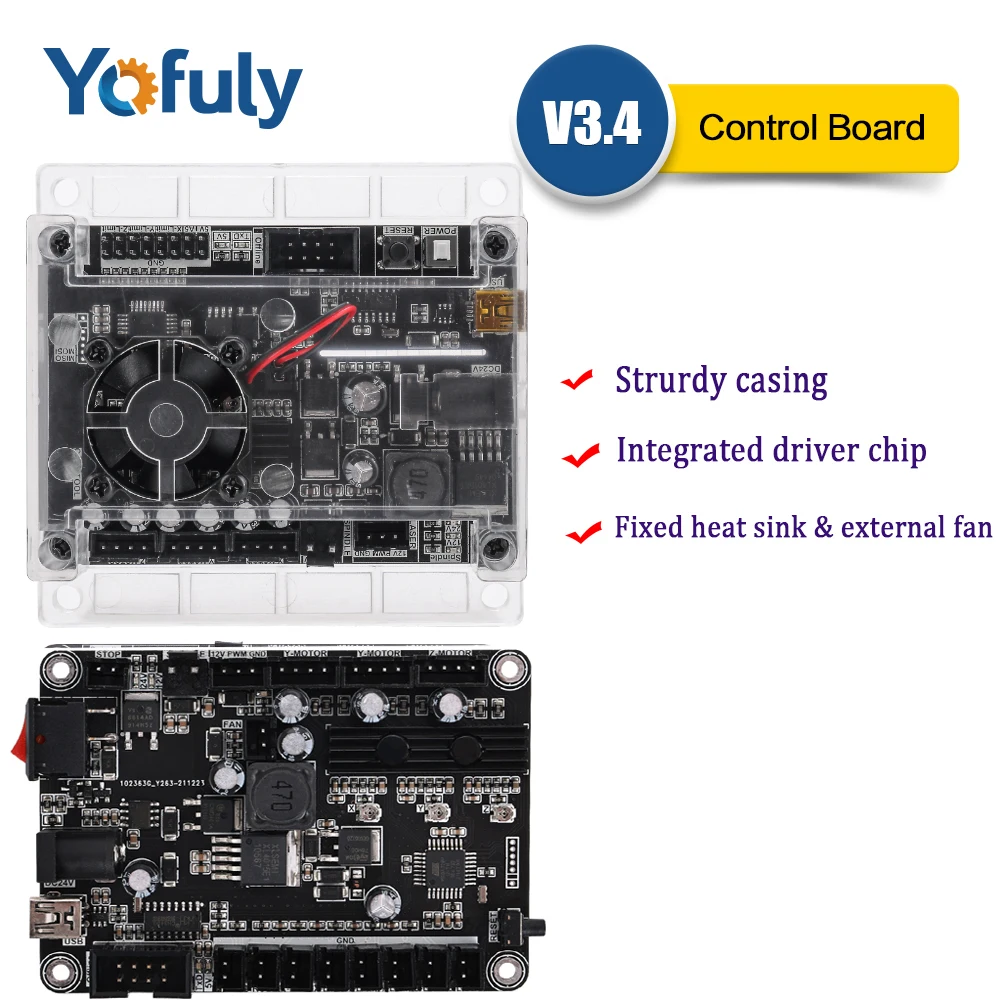

Please note that our control panel has been upgraded. Better functionality：
