IP55 Safety beam infrared sensor, garage door photoelectric detector, anti-theft motion detector, infrared sensor security alarm

Automated Gate Safe Infrared Detector Sensor

Model: single beam

Waterproof grade: IP55

Temperature: +45~ (-20)

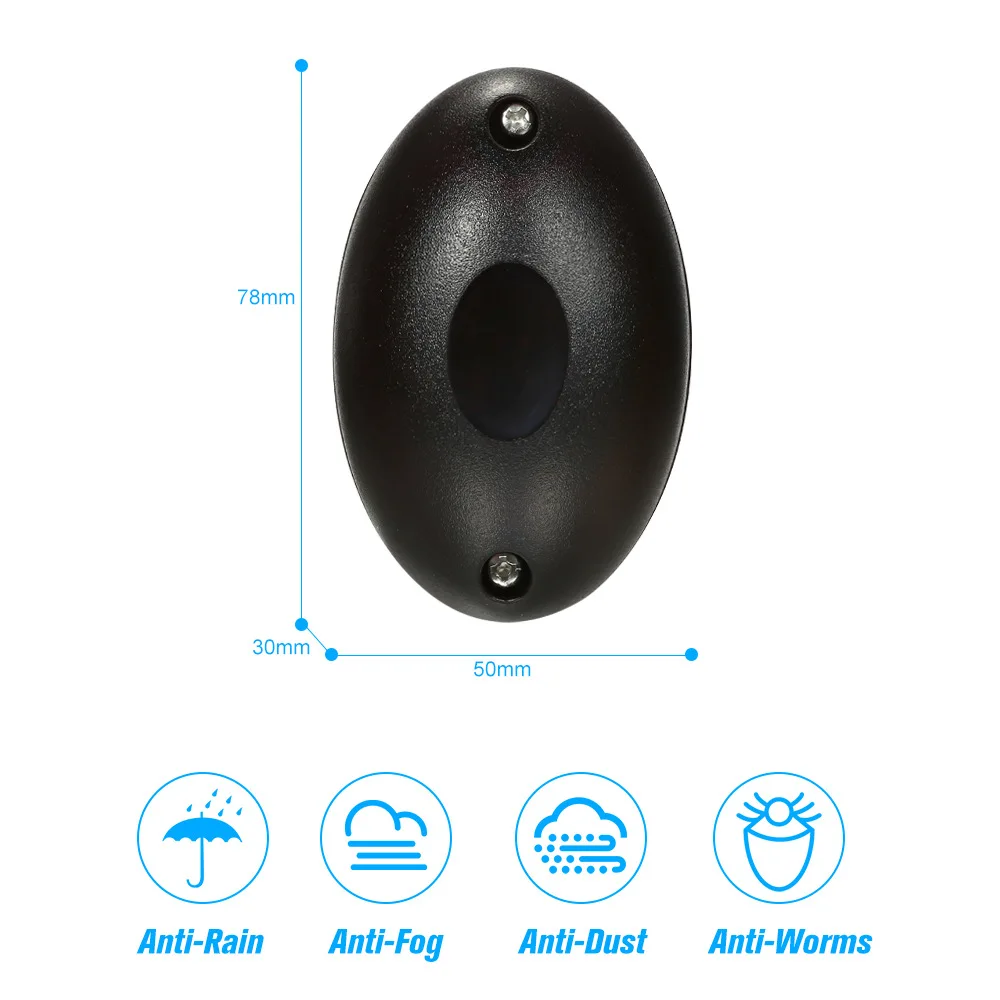

Dimensions: 49.2 x 76 x 21.6MM

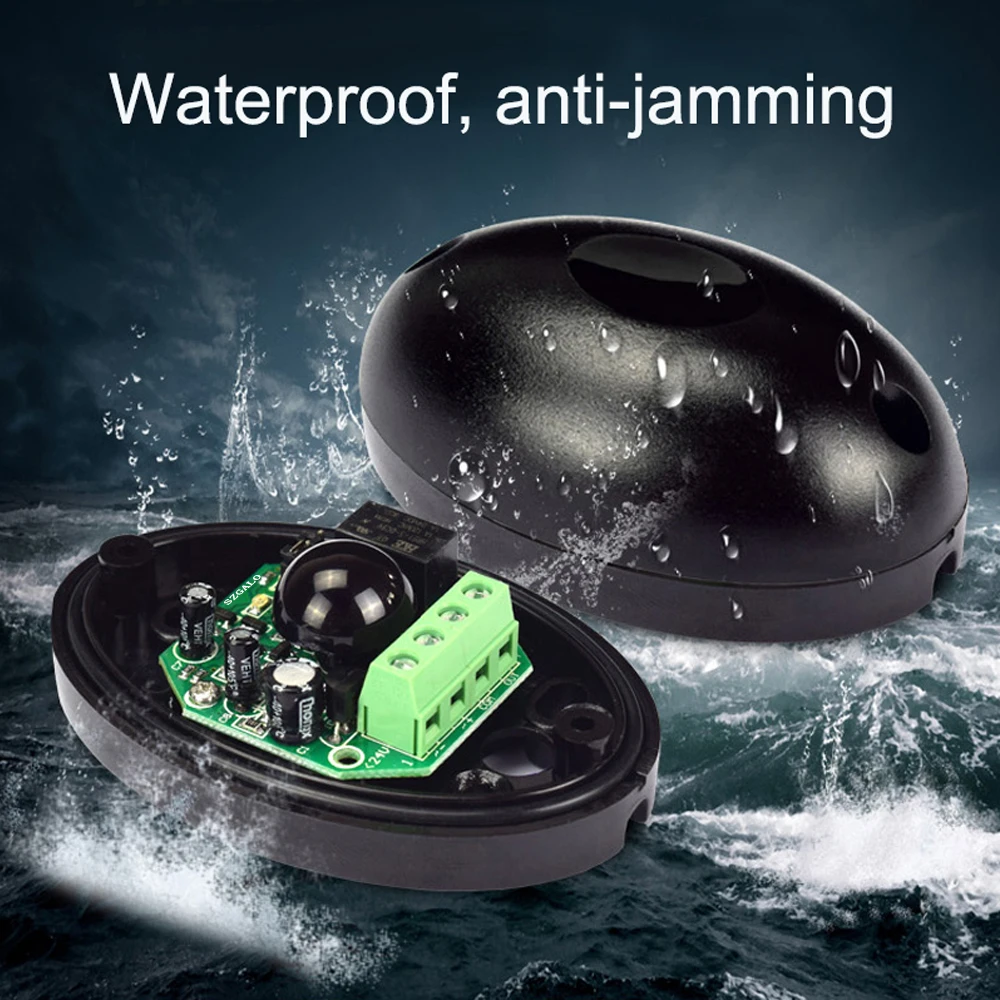

Waterproof and UV resistant

Detector sensing length: indoor 20m outdoor 15m

Working voltage: 12VDC24VDC

Maximum current: TX: 15maMAX RX: 30maMAX

Light source: infrared pulse

Infrared wavelength: 940nm

Infrared emission frequency: 1.92KHz

Response speed: 50ms

Alarm output time: ≥ 1 second

Detection method: block infrared beam

Ideal for installation in security systems in schools, office buildings, hospitals, home yard garage doors, and more.

Two modes adjustable

Normally open

Normally closed

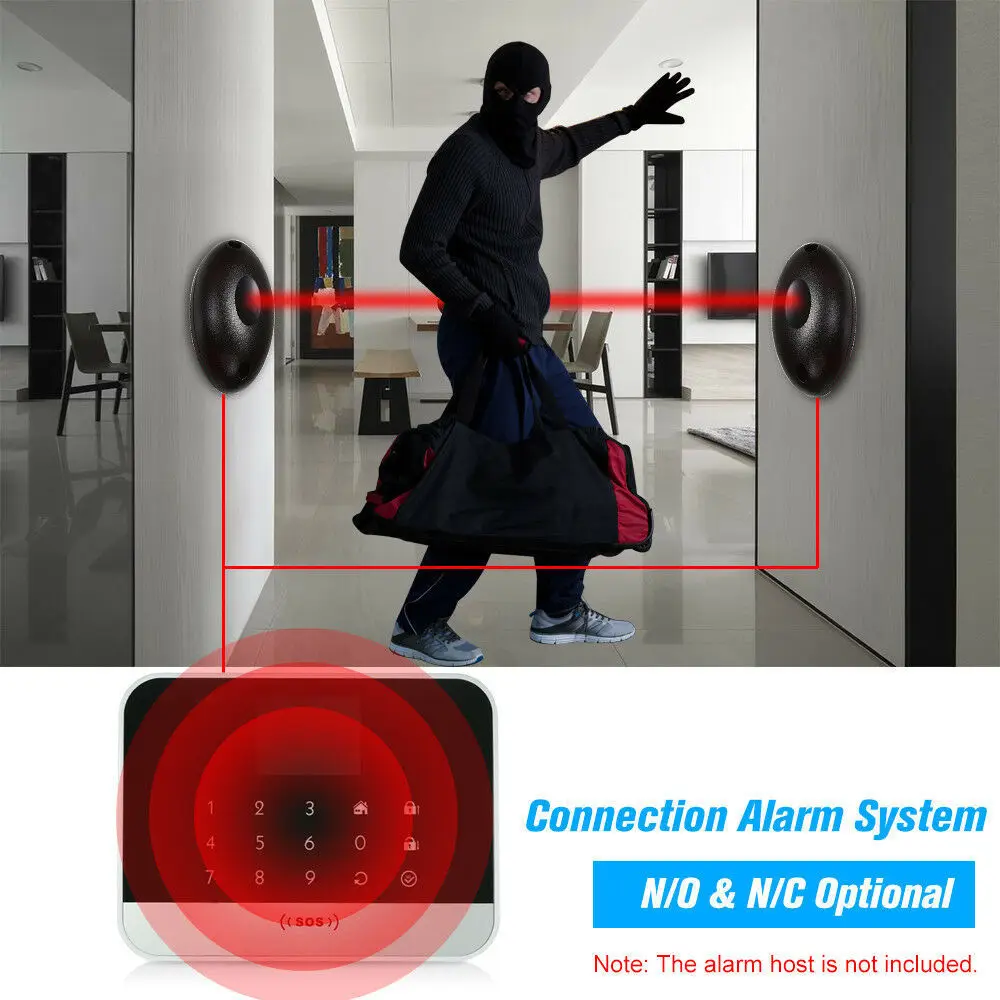

You can connect the infrared beam with Alarm host. When the infrared beam is blocked , it will send an alarm signal to the alarm host When the alarm host receives the alarm signal, it will call the master phone by setting the telephone number
