Recommend : LT-K1-MINI-10W (10W Laser Engraving Machine)
LT-K30(30W+ Laser Module)
LT-K40(40W+ Laser Module)

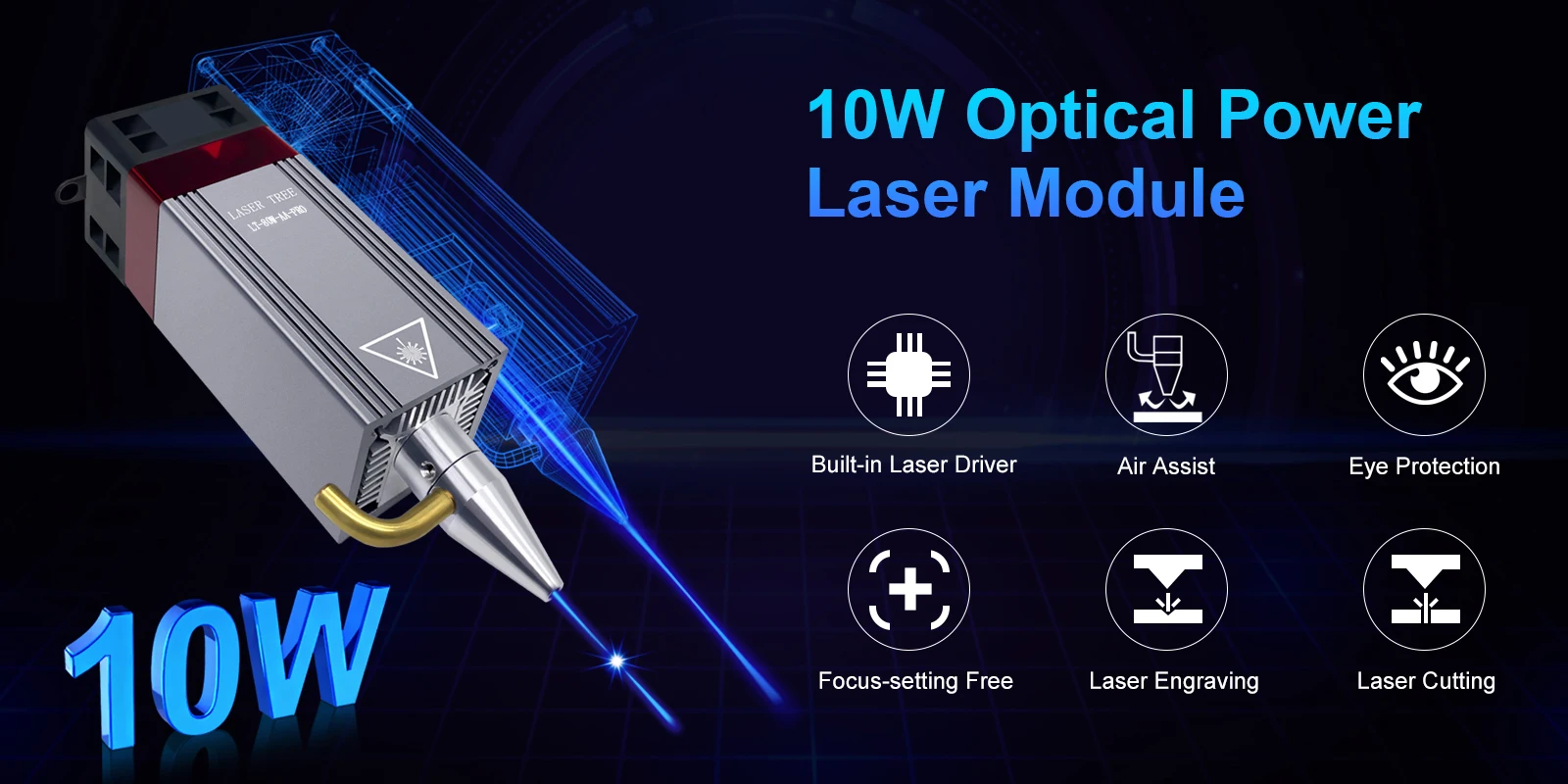

10W Laser Module: LT-80W-AA-PRO
Product Features
1. High Power Laser Module— 2-Beam compression technology, 10W optical power laser module
2. Powerful Cutting Ability
Cut 8mm bass plywood: 120mm/min, 100% power, by one pass
Cut 5mm black acrylic: 50mm/min, 100% power, by one pass
Cut 5mm MDF: 150mm/min, 100% power, by 2 passes
3. Professional Air Assist— Blowing through the air nozzle to get clean-cut edges, improve cutting performance
4. Super Fast Engraving Speed— ultra-fast engravingon stainless steel-30mm/s
5. Widely Compatibility— Suitable for Z*aitu,O*tur,Tw* Trees,S*ulpful9, Xtool, A*omstack and other models of DIY laser engraving machines.
Specification:
Material: aluminum alloy
Optical Power：10W (±1W)
Wavelength: 450nm (±10nm)
Light color: blue
Focus Length: 45mm
Spot form: Punctiform, fixed focus
Electric power: 12V 3.2A(3A-3.5A); 24V 1.7A(1.5A-2A)
PWM Modulation: 0/3-12V 0-5kHz TTL/PWM
Input port: XH2.54-3P socket
Item size: 40*40*147mm
Laser module net weight: 250g
With Air Assist VS No Air Assist
Blowing through the air nozzle to get clean-cut edges, improve cutting performance
without Air Nozzle: Scorched Edges
with Air Nozzle: Clean-Cut Edges
Dual-LDs with Beam Compressed Technology
One laser module has two built-in laser diodes.The optical power of each diode is 5W.
With beam combination technology, our laser module is double powerful and the beam quality is as good as a single diode.
Powerful Cutting Ability
Cut 8mm bass plywood: 120mm/min,100% power,by one pass
Cut 5mm black acrylic: 50mm/min,100% power,by one pass
Cut 5mm MDF: 150mm/min,100% power,by 2 passes
Minimum 0.08mm Ultra-thin Beam
Ultra-fast engraving on stainless steel-30mm/s

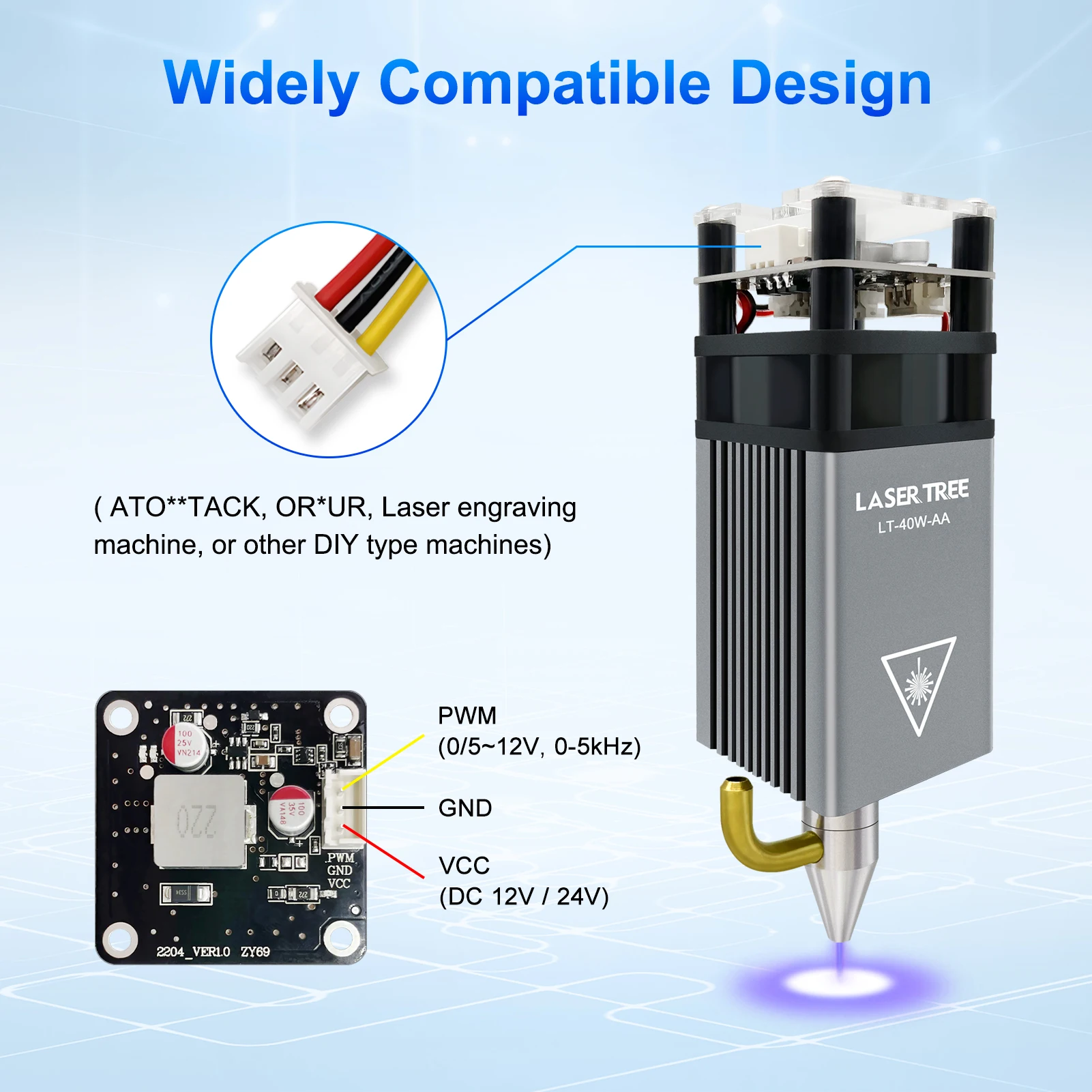

Widely Compatible Design
Suitable for Z*aitu,O*tur,Tw* Trees,S*ulpful9, Xtool, A*omstack and other models of DIY laser engraving machines
Reference Settings for Cutting
Reference Settings for Engraving
4W Laser Module: LT-20W-A
450nm Adjustable Focus Laser Module for Laser Engraving Machine
By LASER TREE
Product Description：
The blue laser module is specially designed for CNC milling machine and DIY engraving. The wavelength is 450nm, which is an effective tool for laser engraving and cutting. They can engrave and cut various materials.
Features:
Blue Laser Module — Professional laser head with high speed and high stability. Bright blue-violet light, easy for locating when engraving.
Adjustable Focus — Adjustable laser head, easy to adjust, ensure engraving with good quality and high efficiency.
Easy to assemble—small, compact, convenient and easy to install.
Specification:
Mode: LT-20W-A
Optical power: 5W
Material: aluminum alloy + plastic
Wavelength: 450nm
Light color: blue
Spot form: Punctiform, Adjustable focus
Input voltage: 20W- 12V 1.6A(1.4A-1.8A)
Interface parameters: support TTL signal control power
Product weight: 100g
Packing List:
1 * Laser head
1 * Cable
Can cut 1-2mm Plywood by one pass
5W Laser Module: LT-40W-A-GOLD
450nm 40W Adjustable Focus Blue Laser Module
Specifications:
Effect Laser Power: 40W
Optical Output Power: 5W
Material: Aluminum Alloy+Plastic
Light Color: Blue
Wave Length: 450nm
Facula Form: Punctiform, Adjustable Focus
Input Voltage: 12V 1.5-2A
Modulation: 0/5-12V TTL/PWM
Item Size: 40x40x120mm
Item Weight: 225g

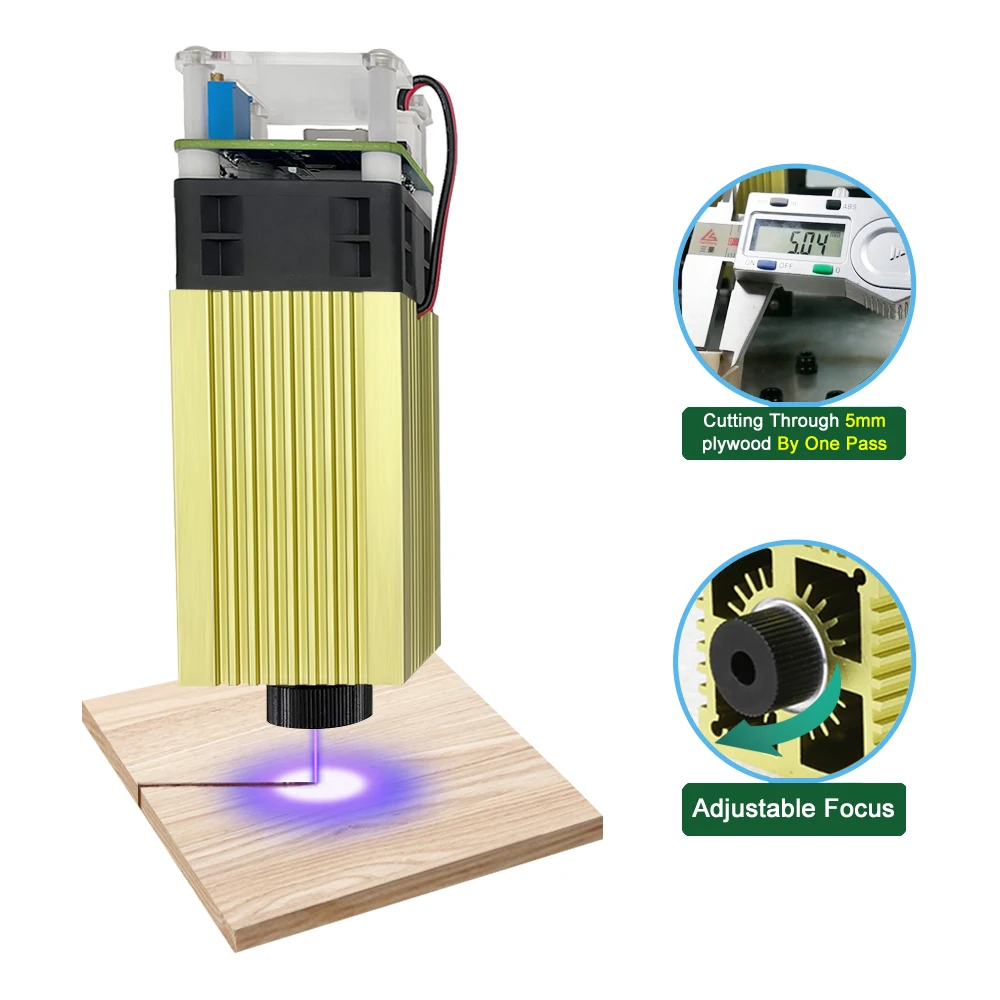

Cutting Through 5mm Plywood By One Pass
Ultra-fast Engraving on Stainless Steel-30mm/s

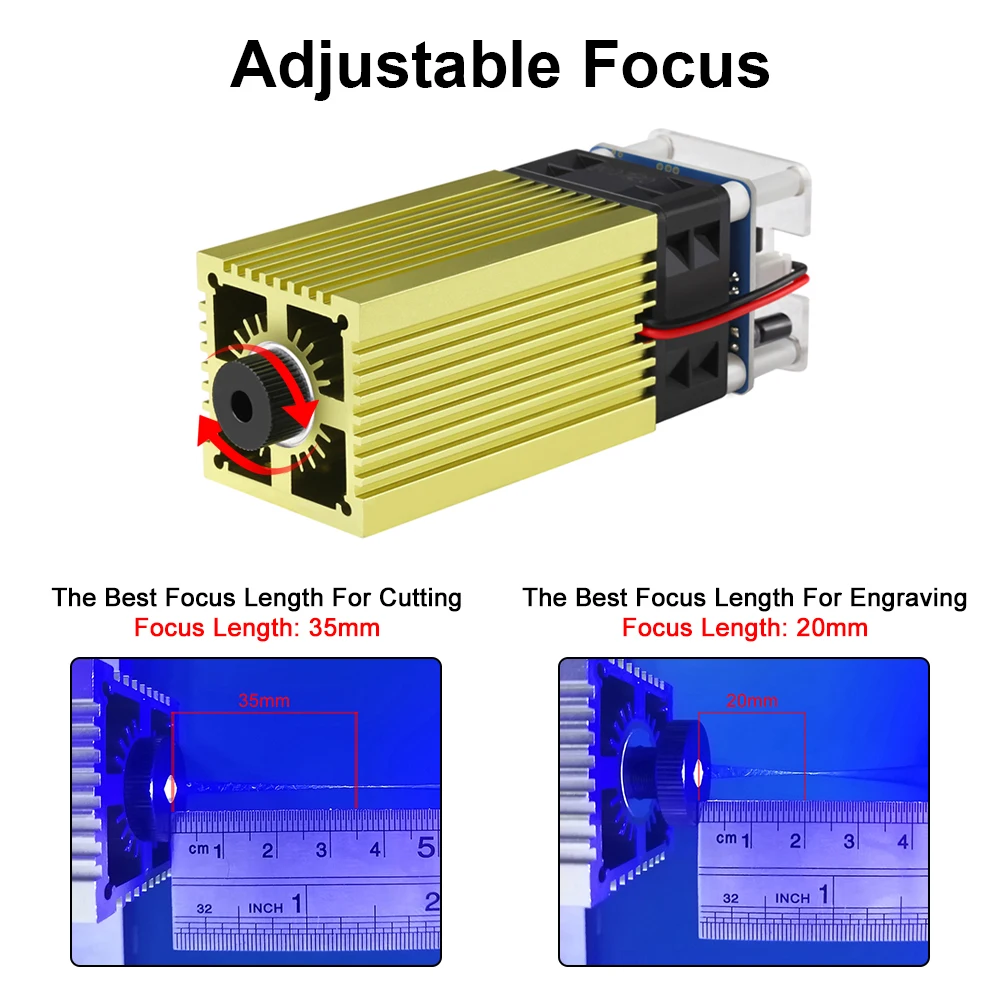

The Best Focus Length For Cutting Focus Length:35mm
The Best Focus Length For Engraving Focus Length:20mm
5W Laser Module: LT-40W-AA
LT-40W-AA, as a 5W laser module with air assist, can effectively get clean-cut edges, improve cutting performance and increase the service life of lens.
Features:
1. Optical power is 5W (±0.5W), electrical power is 12V (1.5A-2A).
2. It can cut through 4mm plywood by one pass, the speed is 190mm/min, 100% power.
3. High precision engraving resolution 0.08mm.
4. With air assist, when performing laser cutting operations, the air assist system blows air through the air nozzle to remove dust and debris to improve cutting performance and reduce burn marks, and can also prevent the dust and debris generated during the cutting process from contaminating the optical lens and lens surface , thereby increasing the service life of the lens.

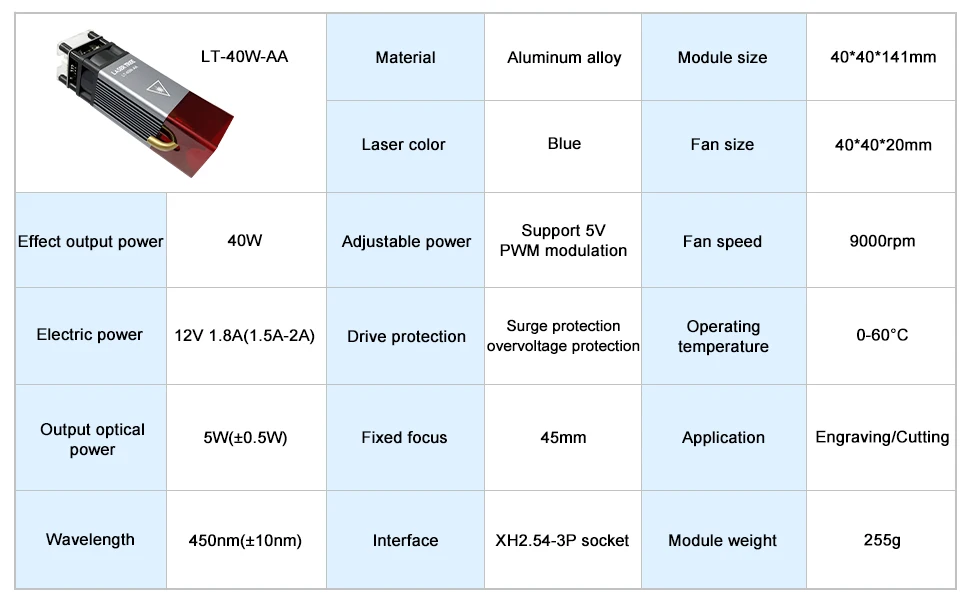

Specification:
Output optical power: 5W
Material: aluminum alloy + plastic
Light color: blue
Wavelength: 450nm
Spot form: Punctiform, fixed focus
Input voltage: 12V 1.8A(1.5A-2A)
Interface: XH2.54-3PIN socket
Modulation: 0/3-12V 0-5kHz TTL/PWM (0V off, 3-12V on)
Item size: 40*40*141.4mm
Product weight: 255g

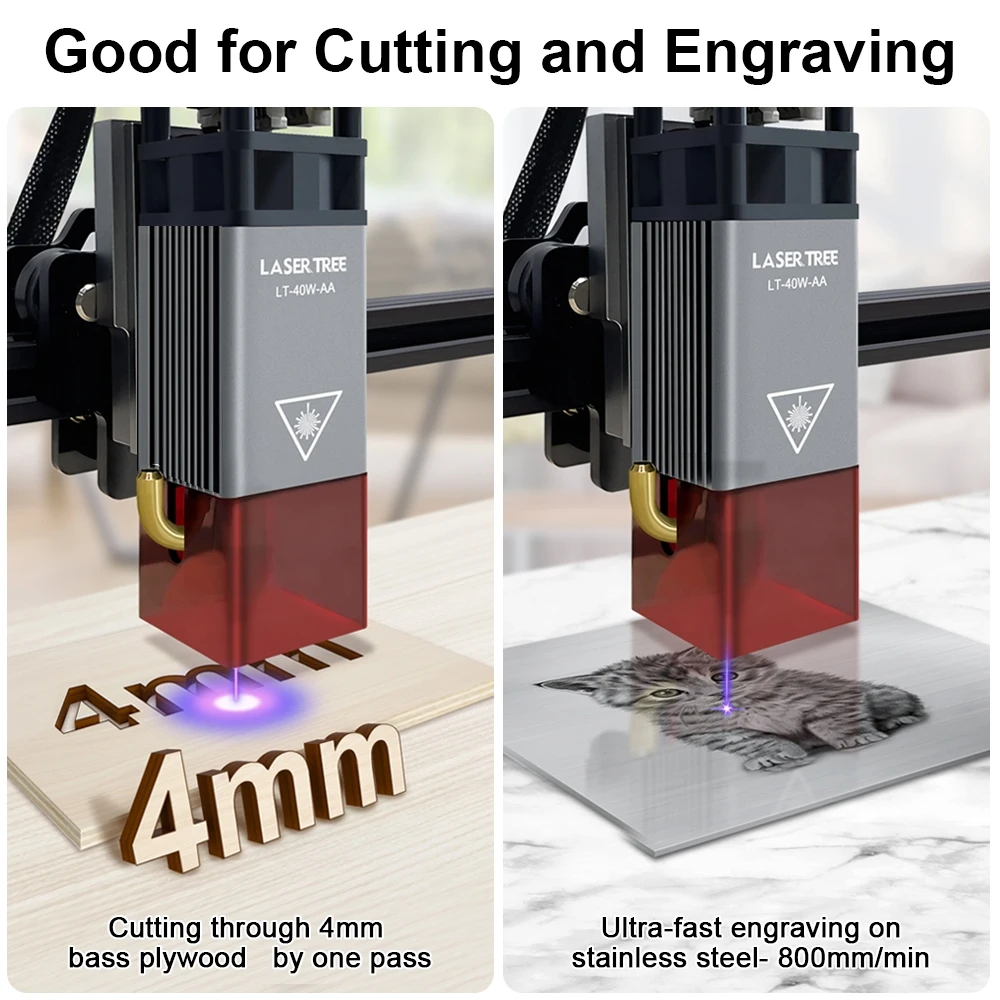

Good for Cutting and Engraving
Cutting through 4mm bass plywood by one pass
Ultra-fast engraving onstainless steel -800mm/min

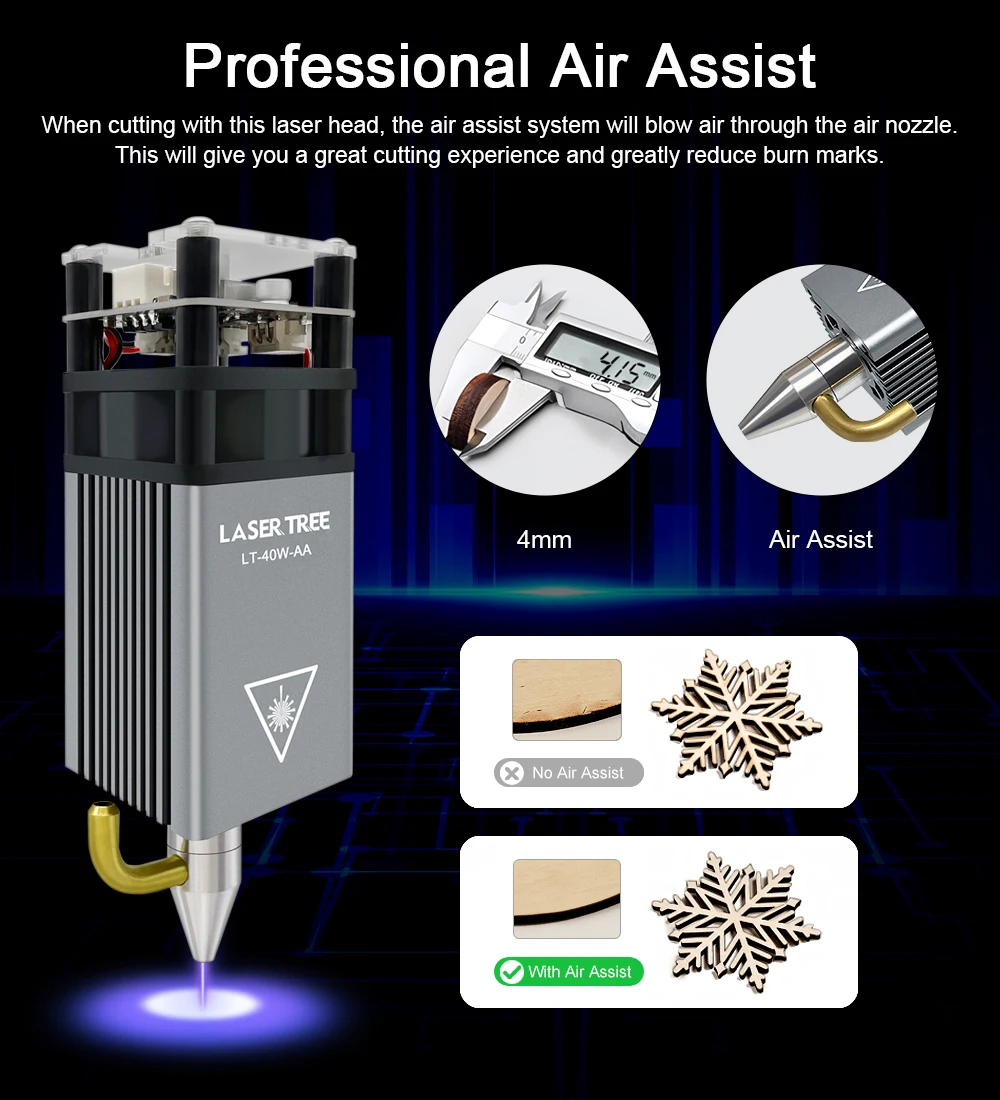

Professional Air Assist

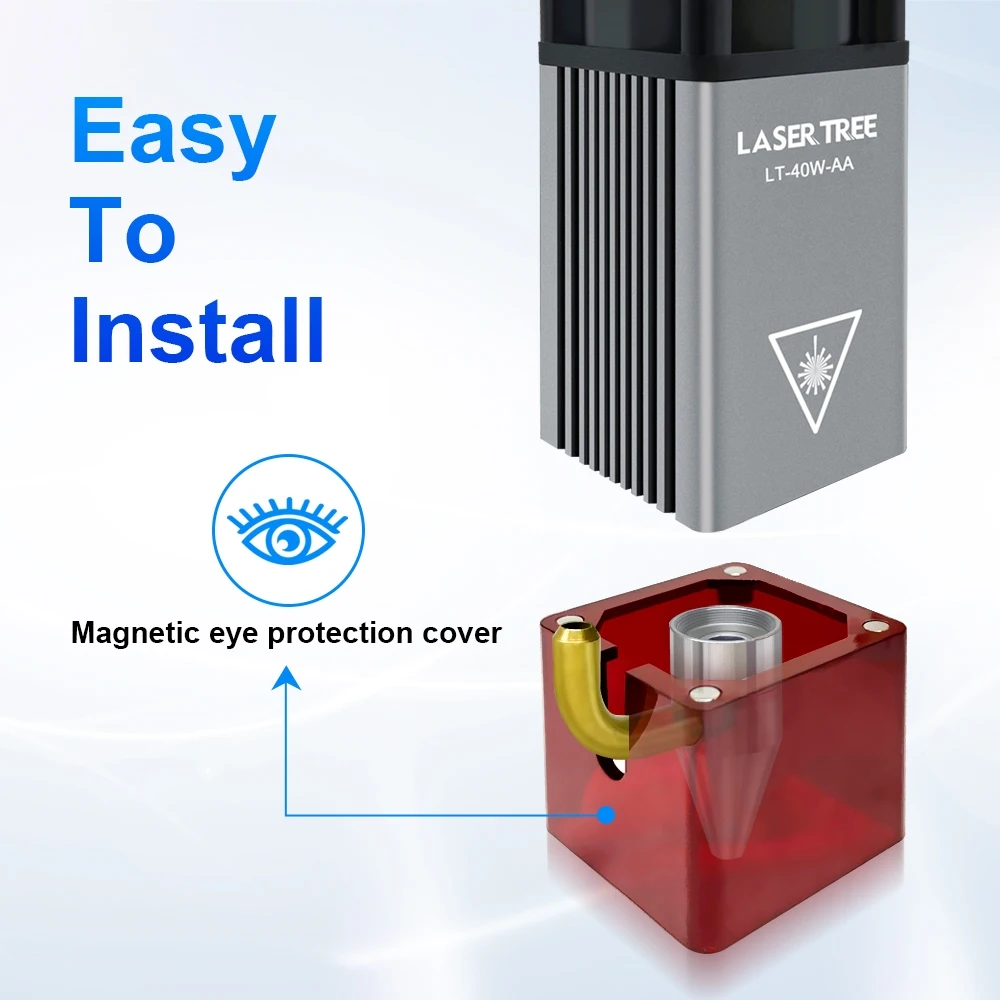

Magnetic Eye Protection Cover
Easy to remove and install
Beam Compressed Spot
More Precise with 5W Compressed Spot
LT-40W-AA Cutting & Engraving for Material
Test Data Reference
Reference settings for cutting
For example, if you want tocut 4mm plywood, the focus fixing plate should choose 5mm.

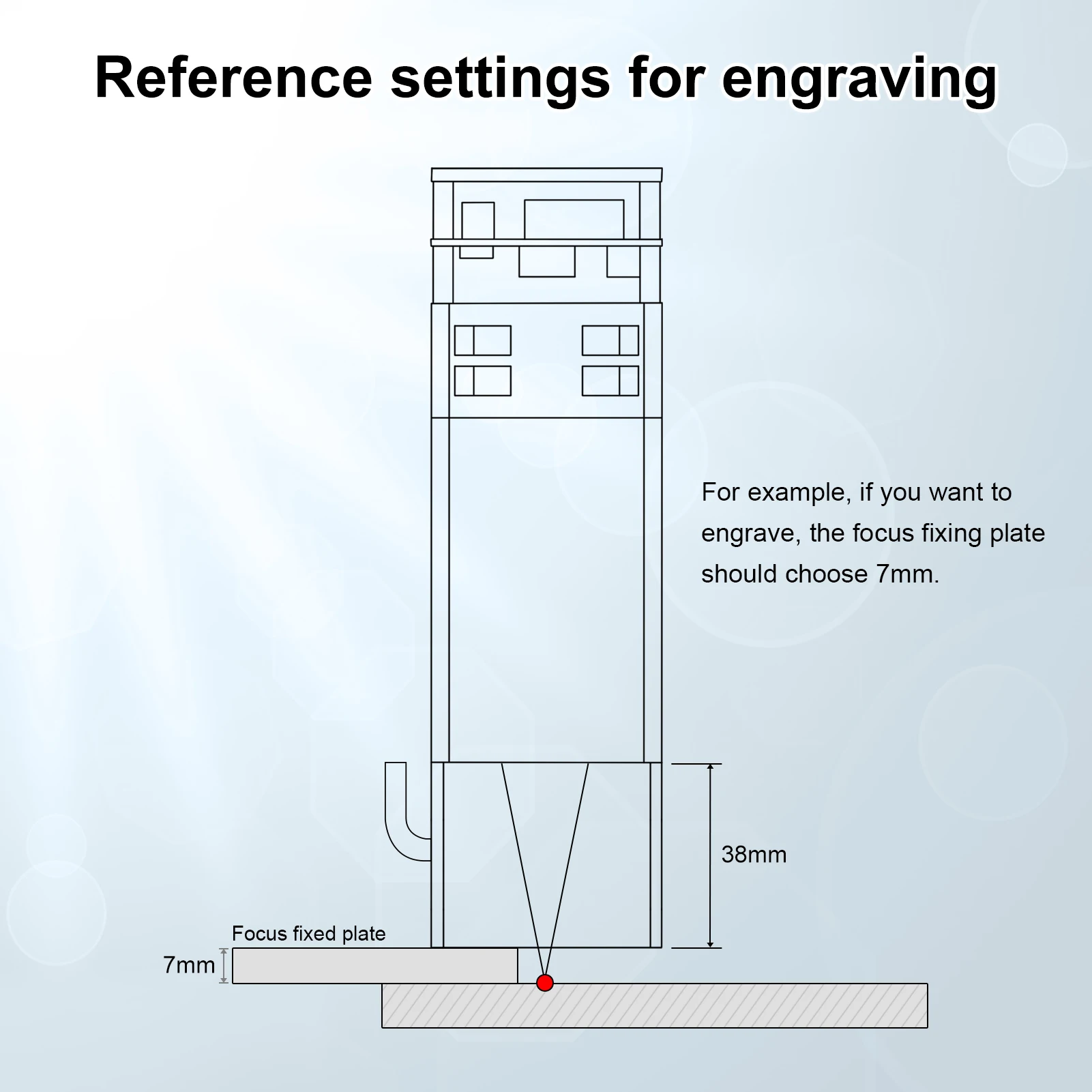

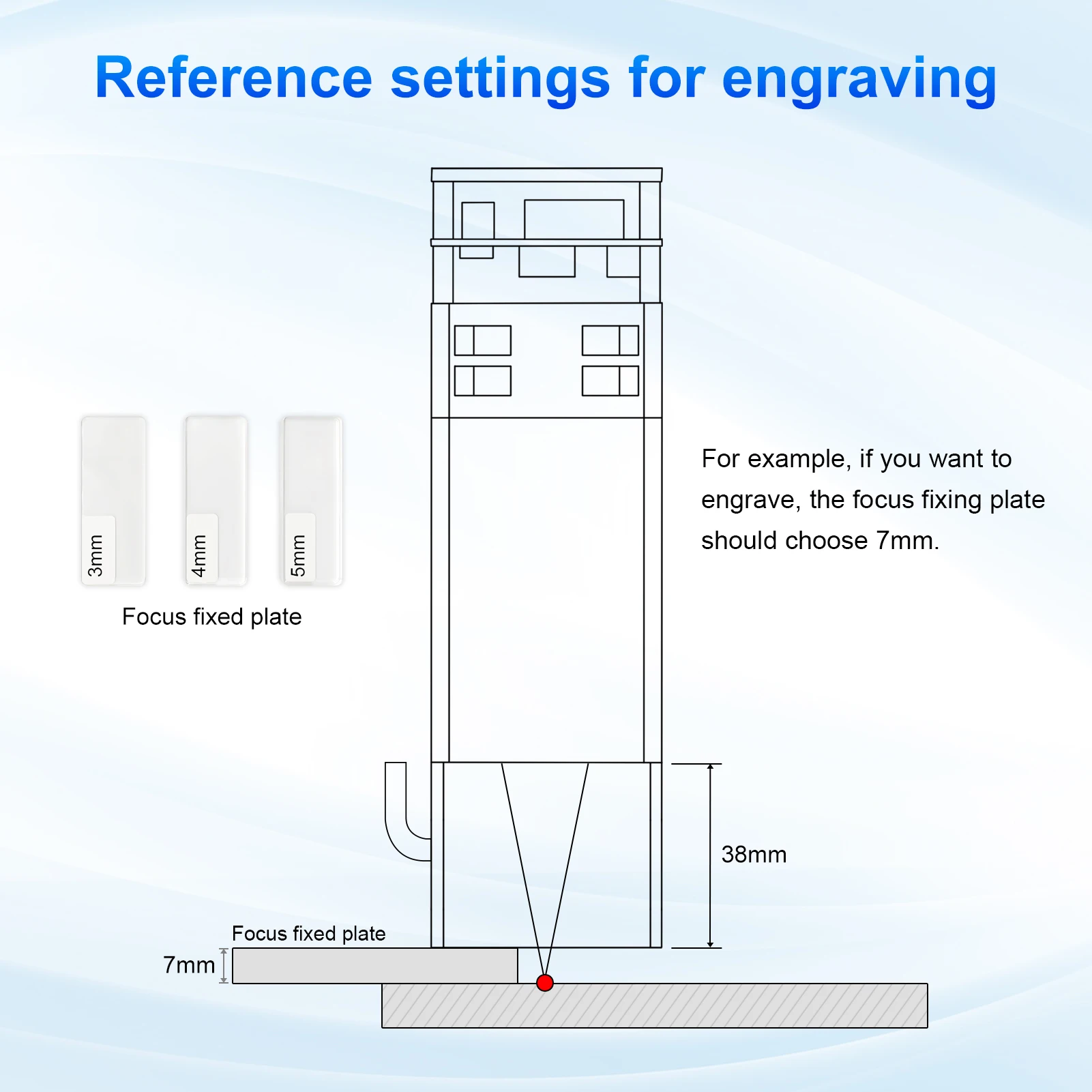

Reference settings for engraving
For example, if you want toengrave, the focus fixing plate should choose 7mm.

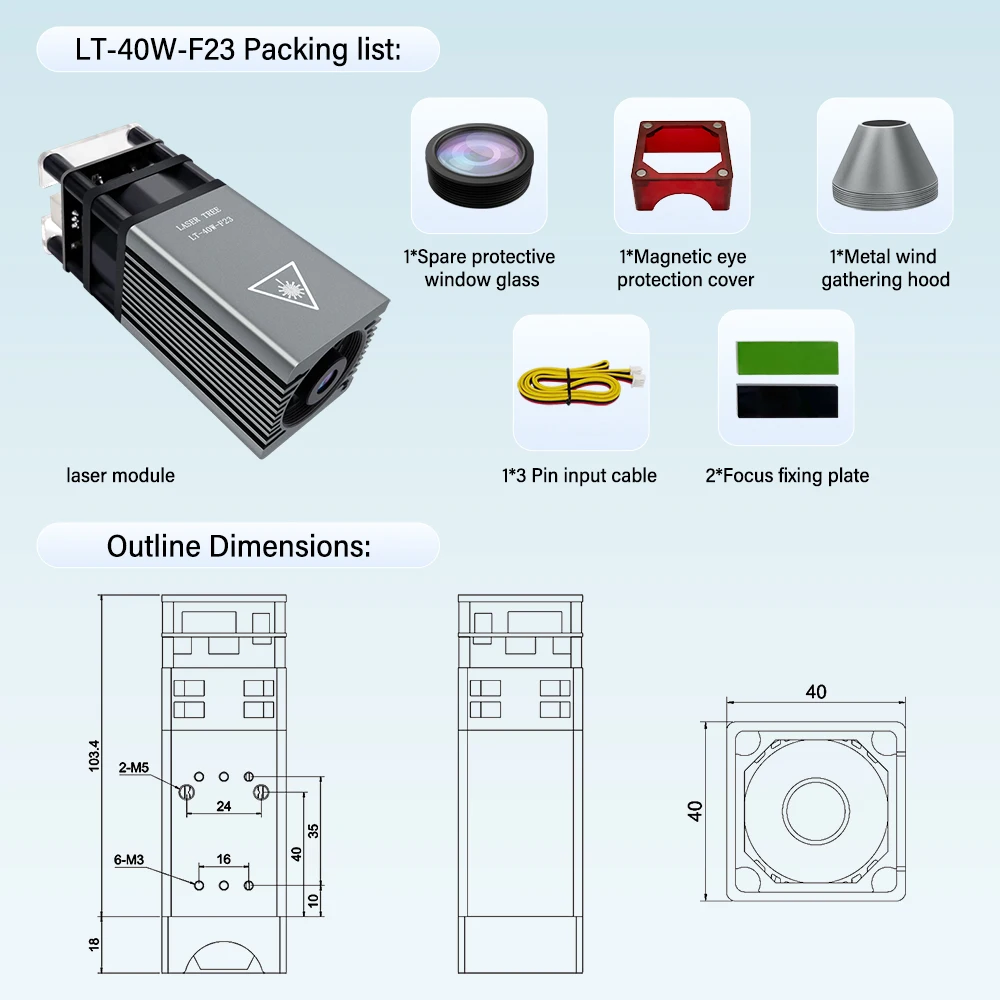

5W Laser ModuleLT-40W-F23:
Product Description
Upgraded Laser Module, LASER TREE 23mm Fixed Focus Balance Engraving and Cutting Head, Laser Engraver Module 5W Optical Power with Metal Wind Gathering Hood, Suitable for Laser Engraver Machine
Product Features:
1.Engraving Mirror Stainless Steel, no need to Paint Black.
2.Very Fast Engraving Speed: 23mm focal length, engrave 304 stainless steel at speeds up to 800mm/min.
3.Excellent Cutting Ability: Cutting 4mm thick plywood by one pass at a Speed of 80-100mm/s.
4.Magnetic eye protective cover: It allows you to see the laser module in action without the need for eye protection and is easy to disassemble without screws.
5.Metal cutting air outlet: Which does not generate heat and can resist flames.
Specification:
Material: Aluminum alloy
Effect Output Power: 40W
Output Optical Power: 5W
Electric Power: 12V 1.8A(1.5A-2A)
Focus Length: 23mm
Interface: XH2.54-3P socket
Power Adjustable: Support 5V PWM modulation
Function: Engraving/Cutting
Module Size: 40*40*121mm
Module Weight: 240g
Cutting Through 4MM Bass Plywood By One Pass

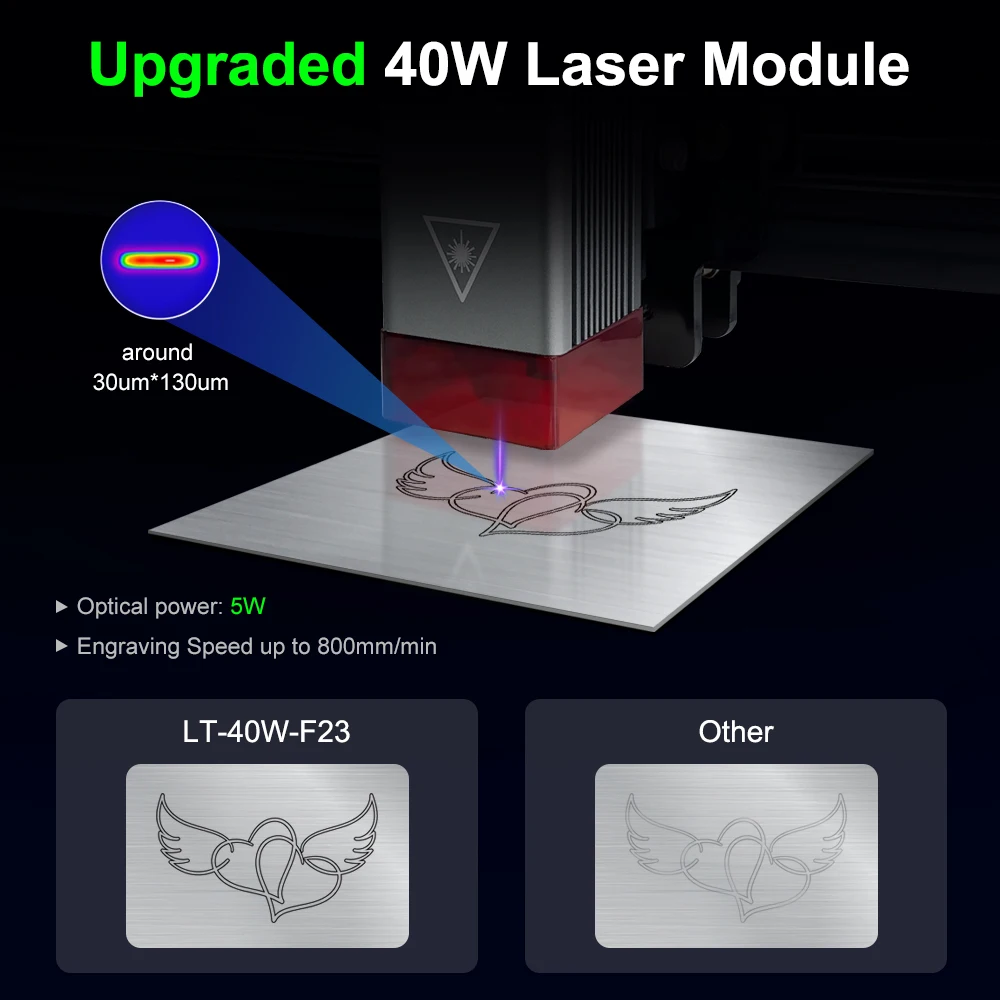

Upgraded 40w Laser Module
>Optical power: 5W
>Engraving Speed up to 800mm/min
Metal Wind Gathering Hood Design
Prevent Flames from Burning

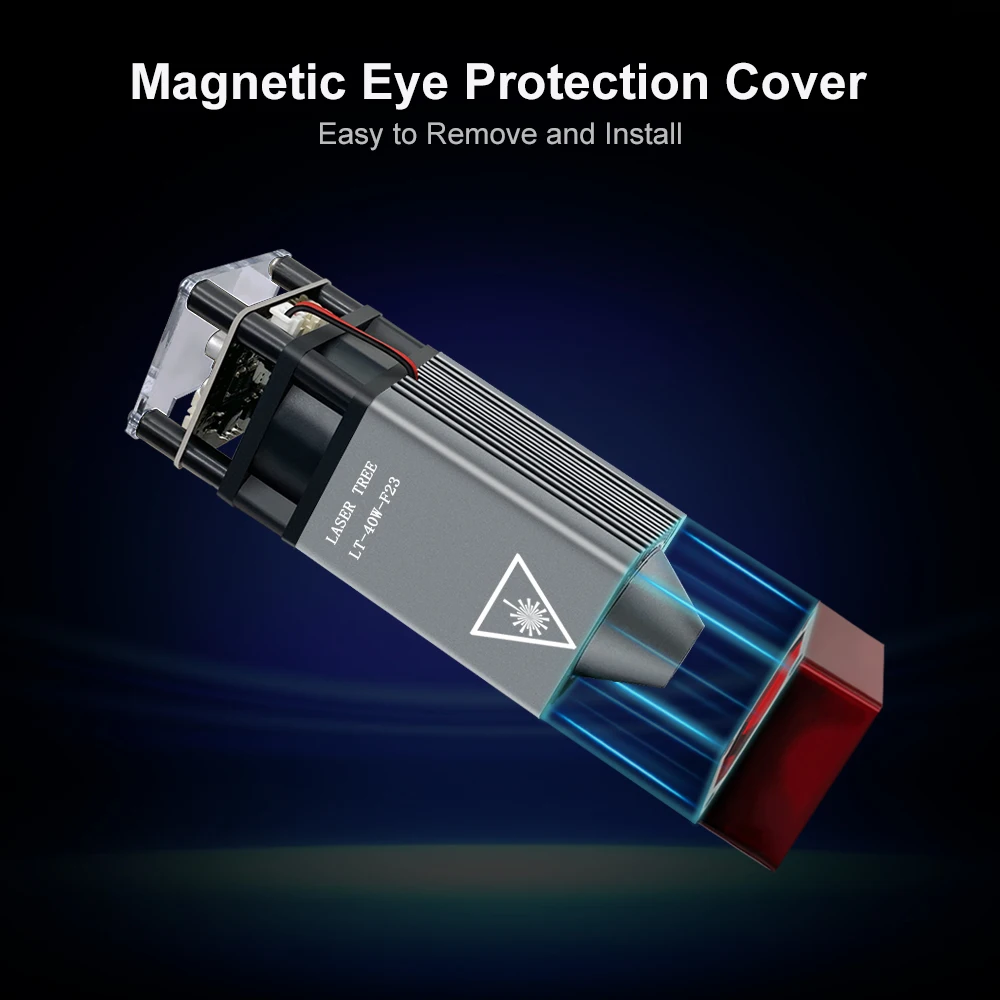

Magnetic Eye Protection Cover
Easy to Remove and install
Ultra-Fast Engraving on Stainless Steel-800mm/min
Note:
If you need the instruction manual, please contact us, thank you!
m***m –
Very good, answered my expectations, I will post some tests later, ………………….
Color: 80W-AA-PRO-KIT-12V Ships From: brazil
А***в –

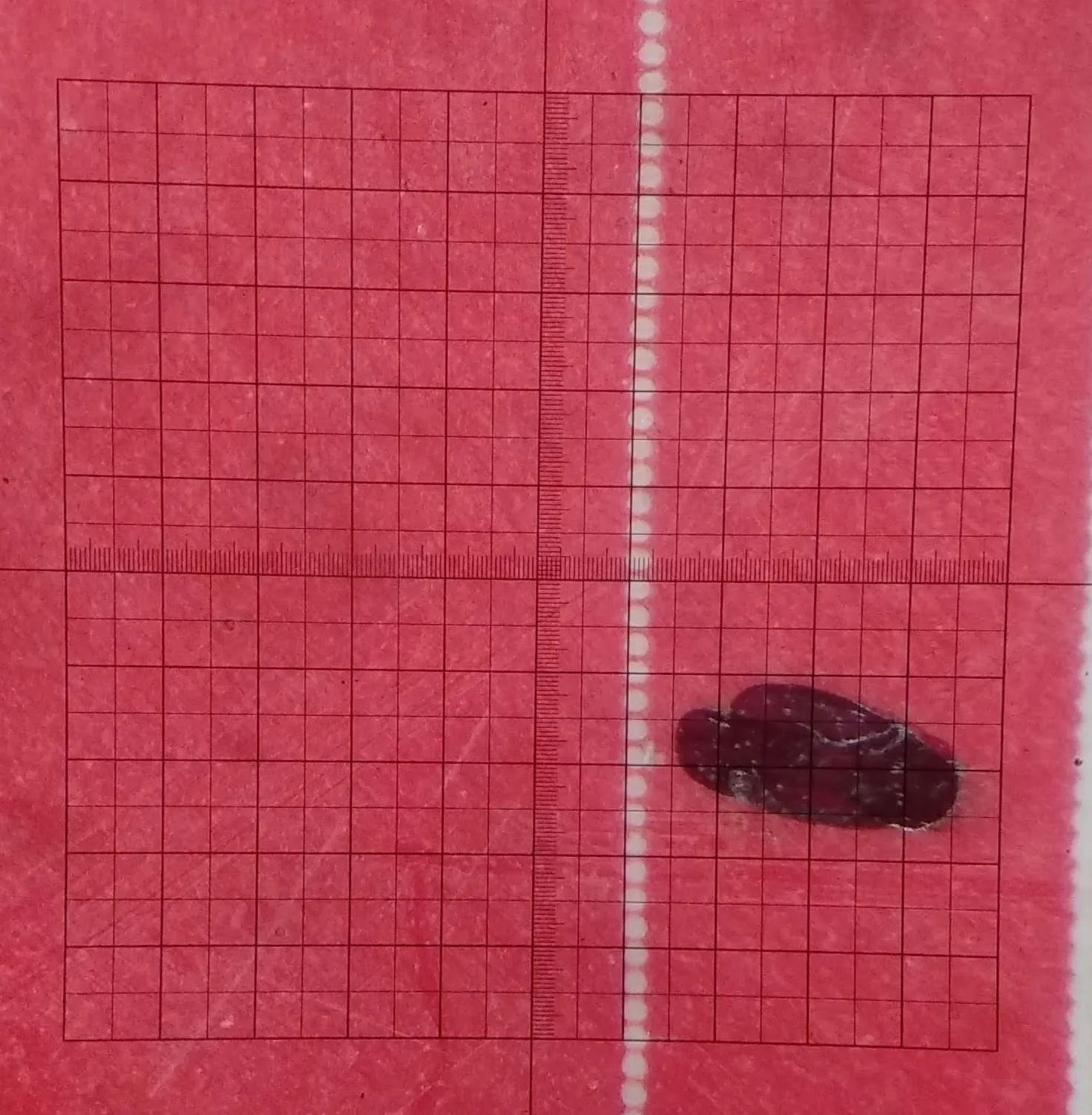

Took full whale 80W 24V. All as described. The beam is focused into an almost circular spot with a diameter of about 0.1mm.
Color: 80W-AA-PRO-KIT-24V Ships From: express

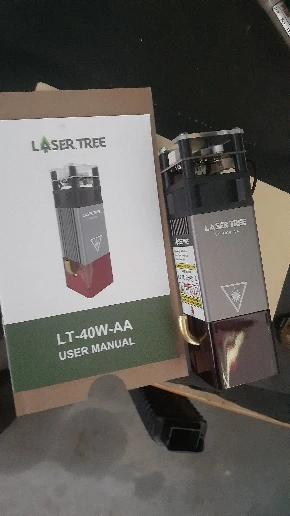

A***s –
Thank you, I’m shocked. It’s a pleasure to open and hold. Connection takes time… Thank you, I’m happy.
Color: LT-40W-AA Ships From: CHINA
A***o –
Amazing quality, I have not tested yet, but it is a great product, I recommend the seller, arrived very well packed, a great purchase.
Color: LT-40W-AA Ships From: brazil
p***r –
Advantage, the head is not very high. Easy connection with the notice found on the site laser Road
Color: 80W-AA-PRO-KIT-12V Ships From: CHINA
AliExpress Shopper –
Pull module, paddle Bulo easily.
For those Koshti for the top) ale more than a cat did not look like him pratsyuvati)
Color: 80W-AA-PRO-KIT-12V Ships From: CHINA
V***o –
What a very nice laser! This product performs very well under all kinds of material. The focus is superb, a very narrow beam that cuts or engraves everything I want with great acracy. I would purchase this product again and in the future I plan to purchase the 80 watt version. Thanks Laser Tree good product! Cheers!
Color: LT-40W-AA Ships From: CHINA
A***a –

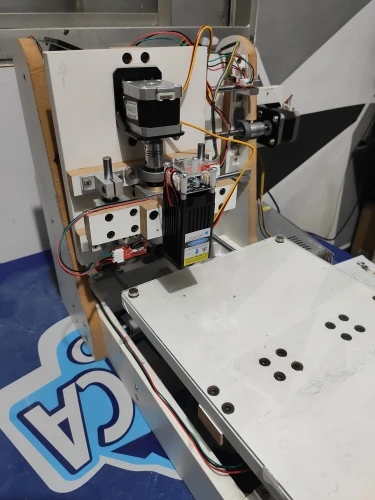

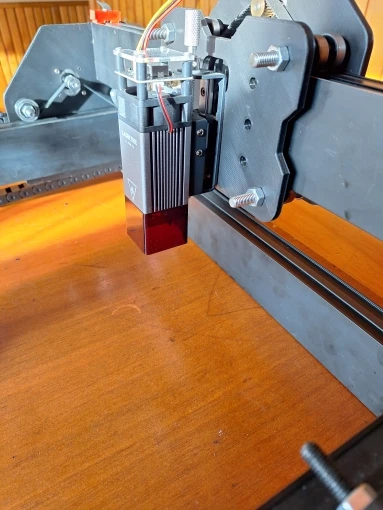

Arrived fast and working perfectly. I tested against a cardboard as I have not yet assembled the CNC machine
