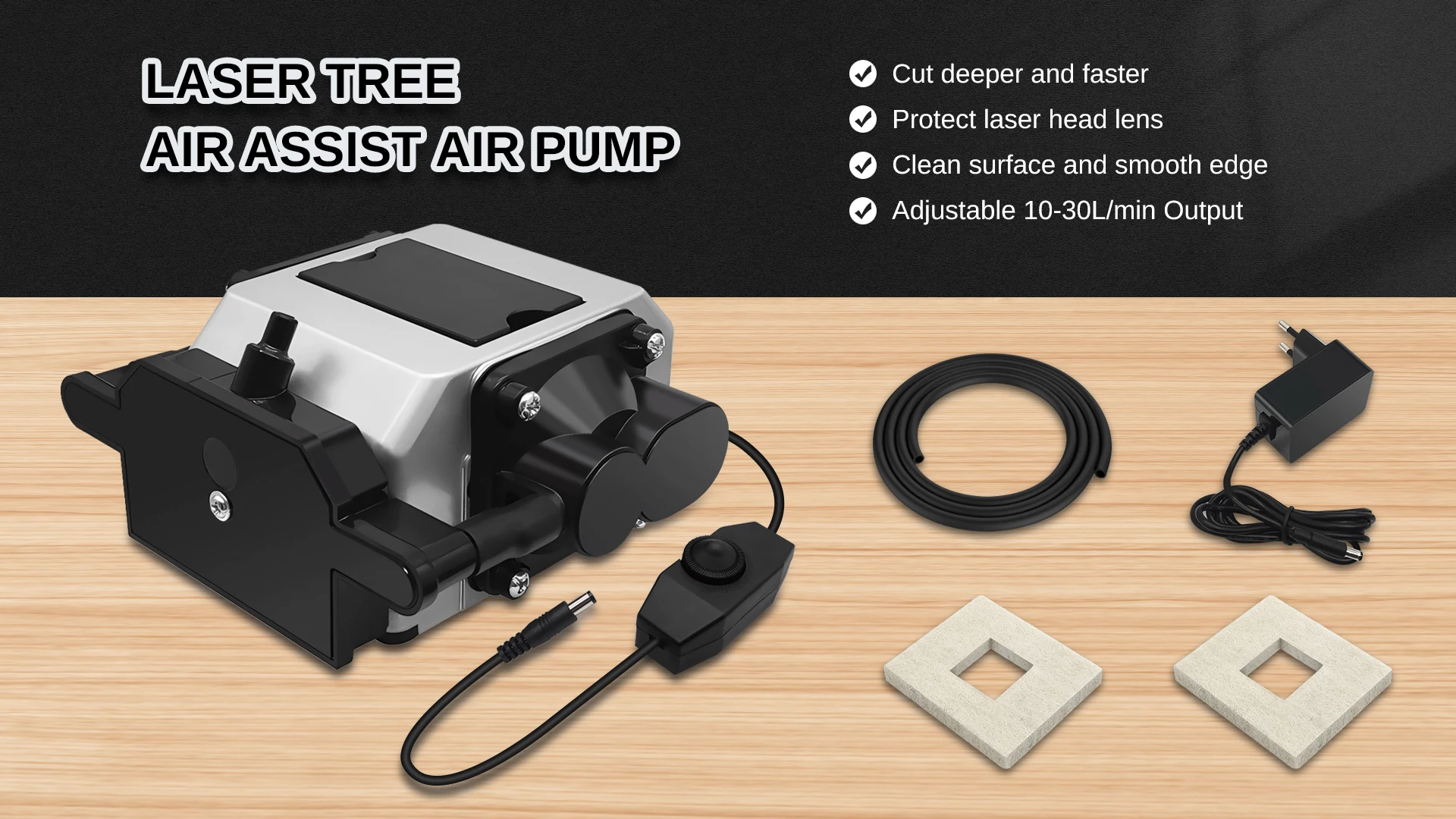

LASER TREE 26L/min Air Pump Metal Nozzle Low Noice High Speed Full Metal Air Compressor for Air Assist Laser Module Wood Tools



1: 110V/220V Air PumpDescription:

The air pump is an essential part of the laser module with air assisted.
It provides a steady high-pressure airflow to blow away smoke and obtain clean-cut edges;
Protecting the laser head’s lens from contamination and extending the laser head’s service life.
In addition, it can improve the efficiency of laser processing and thus save your time.

Features:

1. High-quality materials: metal nozzle, resisting high temperature.

2. Large and steady air output: Adjustable airflow of 0-30L/min, blowing away smoke and residue produced during laser processing, cut deeper、faster and cleaner.

3. Low Noise & Low Vibration: Anti-slip& damping feet keep the body stable and reduce the vibration noise effectively.

4. Rapid Heat Dissipation: Aluminum alloy shell, strong heat dissipation, long lasting and more durable.

5.Wide Compatibility: With two sizes of nozzles (PC6-M8 & PC8-M8)and hoses( φ8x6mm & φ6x4mm), compatible with most of the laser module‘s nozzle interfaces on the market. If it is a special size module air inlet nozzle just need to replace the appropriate air tube and air outlet nozzle.

6. Plug and Play: please select the correct version of EU/US plug.

Specification:

Voltage: 110V/220V

Power: 16W

Exhaust Pressure: 0.03Mpa

Exhaust Volume: 30L/min

Outlet diameter: 8mm

Item Weight: 1.6kg

Item Size: 14.5*13*8cm

Application: Air assist laser module

Stable Airflow Output

High stability design to maintain stable airflow output even if long time working

Large and Steady Air Output

30 L/min, blowing away smoke and residue produced during laser processing, cut faster and deeper

Adjustable Speed Design

Adjustable 0-30L/Min airflow speed

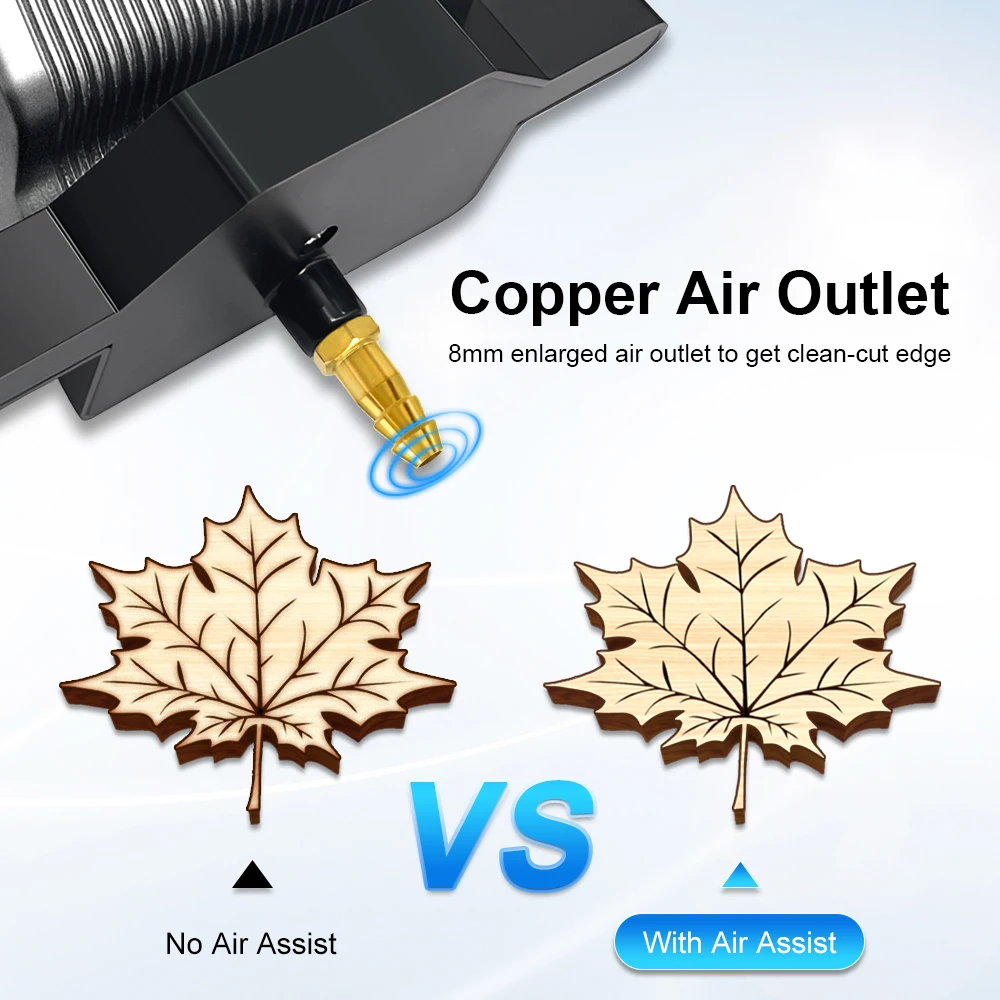

Copper Air Outlet

8mm enlarged air outlet to get clean-cut edge



Low Noise & Low Vibration

Anti-slip& damping feet keep the body stable and reduce the vibration noise effectively

Rapid Heat Dissipation

Aluminum alloy shell, strong heat dissipation, long lasting and more durable

2: LT-AP-MP56 24V (Electromagnetic air pump)Description:

The air pump is an essential part of the laser module with air assisted.
It provides a steady high-pressure airflow to blow away smoke and obtain clean-cut edges;
Protecting the laser head’s lens from contamination and extending the laser head’s service life.
In addition, it can improve the efficiency of laser processing and thus save your time.



Features:

1. High-quality materials: metal nozzle, resisting high temperature.

2. Large and steady air output: Adjustable airflow of 0-30L/min, blowing away smoke and residue produced during laser processing, cut deeper、faster and cleaner.

3. Low Noise & Low Vibration: Anti-slip& damping feet keep the body stable and reduce the vibration noise effectively.

4.Wide Compatibility: With two sizes of nozzles (PC6-M8 & PC8-M8)and hoses( φ8x6mm & φ6x4mm), compatible with most of the laser module‘s nozzle interfaces on the market. If it is a special size module air inlet nozzle just need to replace the appropriate air tube and air outlet nozzle.

5. Plug and Play: please select the correct version of EU/US plug.



Specification:

Air output: ≥26L/min

Voltage：DC24V

Current: 950mA

Pressure: ≥28kPa

Environmental temperature: -20℃-40℃

Environmental humidity: <90%
