LASER TREE K40 40W Optical Power Laser Module with Air Assist Laser Head 450nm TTL Blue Light for Engraver Cutting Wood Tools



Recommend : LT-K1-PRO-30W (30W Laser Engraving Machine)

Recommend : LT-K60 (60W Laser Module)

LASER TREE K40 40W Optical Power with Air Assist Laser Head 450nm TTL Blue Light for CNC Engraver Cutting Wood DIY Tools



LT-K40 (40W+ Optical Laser Module):

Product Features

1. High Power Laser Module— 8-Beam compression technology, 40W+ optical power laser module

2. Powerful Cutting Ability

Cut 20mm bass plywood: 100mm/min, 100% power, by one pass

Cut 30mm black acrylic: 100mm/min, 100% power, by one pass

Cut 9mm MDF: 150mm/min, 100% power, by one passes

3. Professional Air Assist— Blowing through the air nozzle to get clean-cut edges, improve cutting performance



4. Super Fast Engraving Speed— ultra-fast engravingon stainless steel-30mm/s



5. Widely Compatibility— Suitable for Z*aitu,O*tur,Tw* Trees,S*ulpful9, Xtool, A*omstack and other models of DIY laser engraving machines.

Specification:

Material: aluminum alloy

Optical Power：40W

Wavelength: 450nm (±10nm)

Light color: blue

Focus Length: 40mm

Electric power: 24V 6A



PWM Modulation: 0/3-12V 0-5kHz TTL/PWM

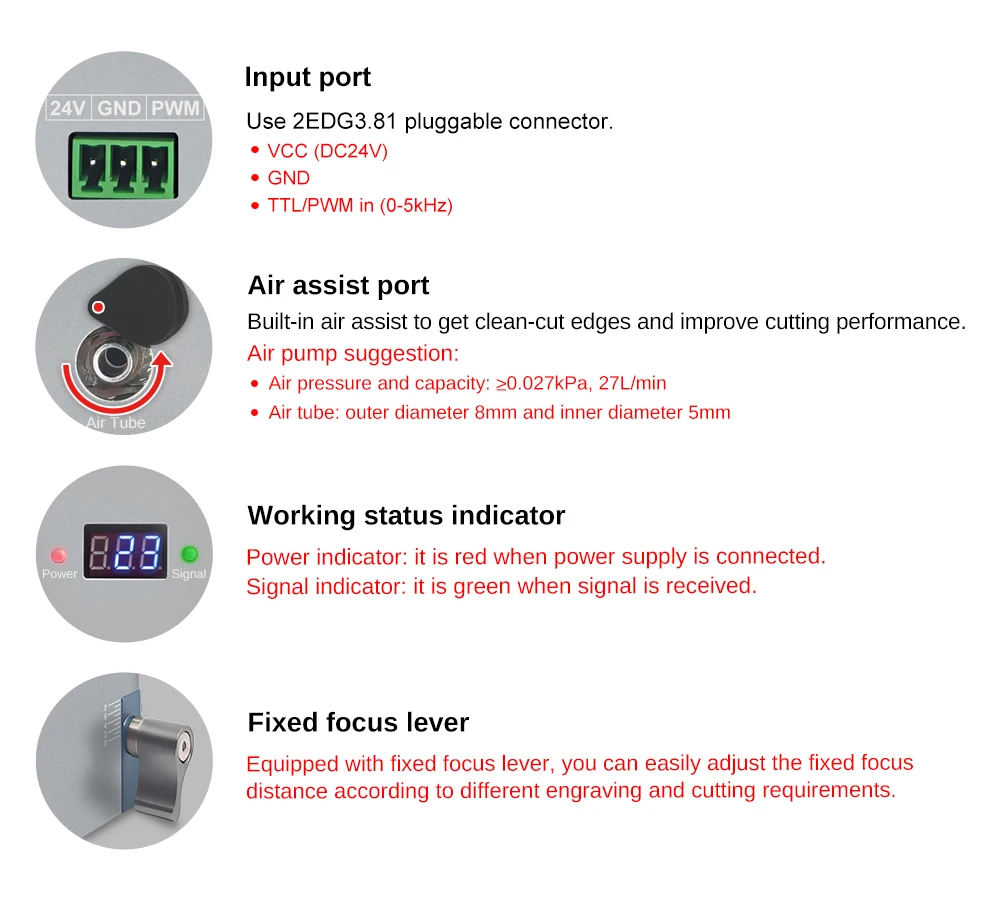

Input port: KF2EDG3.81-3P socket

Laser module net weight: 900g

LASER TREE K40 Laser Module Detail:

Built-in 8pcs 5.5W beam compressed laser diodes

Powerful Cutting Ability Maximum thickness of one-pass cutting

Cut 20mm bass plywood: 100mm/min, 100% power, by one pass

Cut 30mm black acrylic: 100mm/min, 100% power, by one pass

Cut 9mm MDF: 150mm/min, 100% power, by one pass

With Air Assist VS No Air Assist

Built-in air assist airway to get clean-cut edges, improve cutting performance.

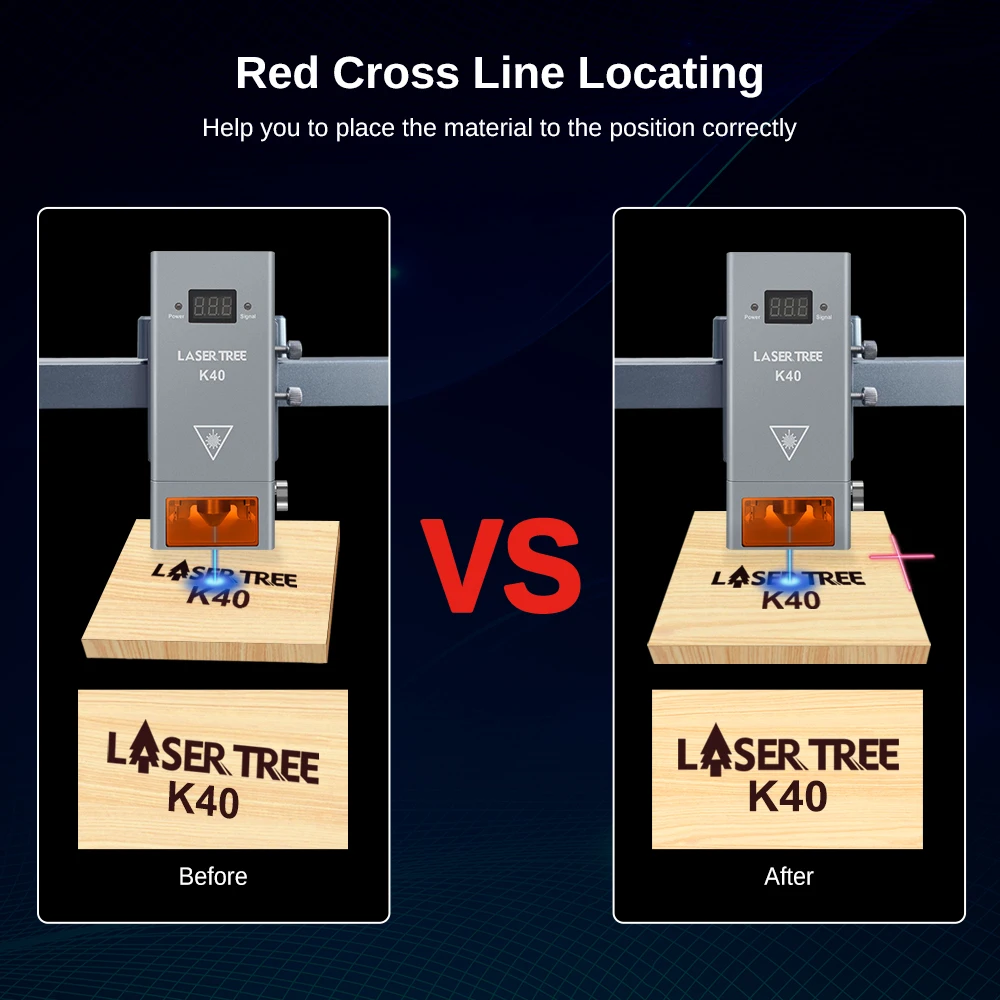

Red Cross Line Locating

Help you to place the material to the position correctly

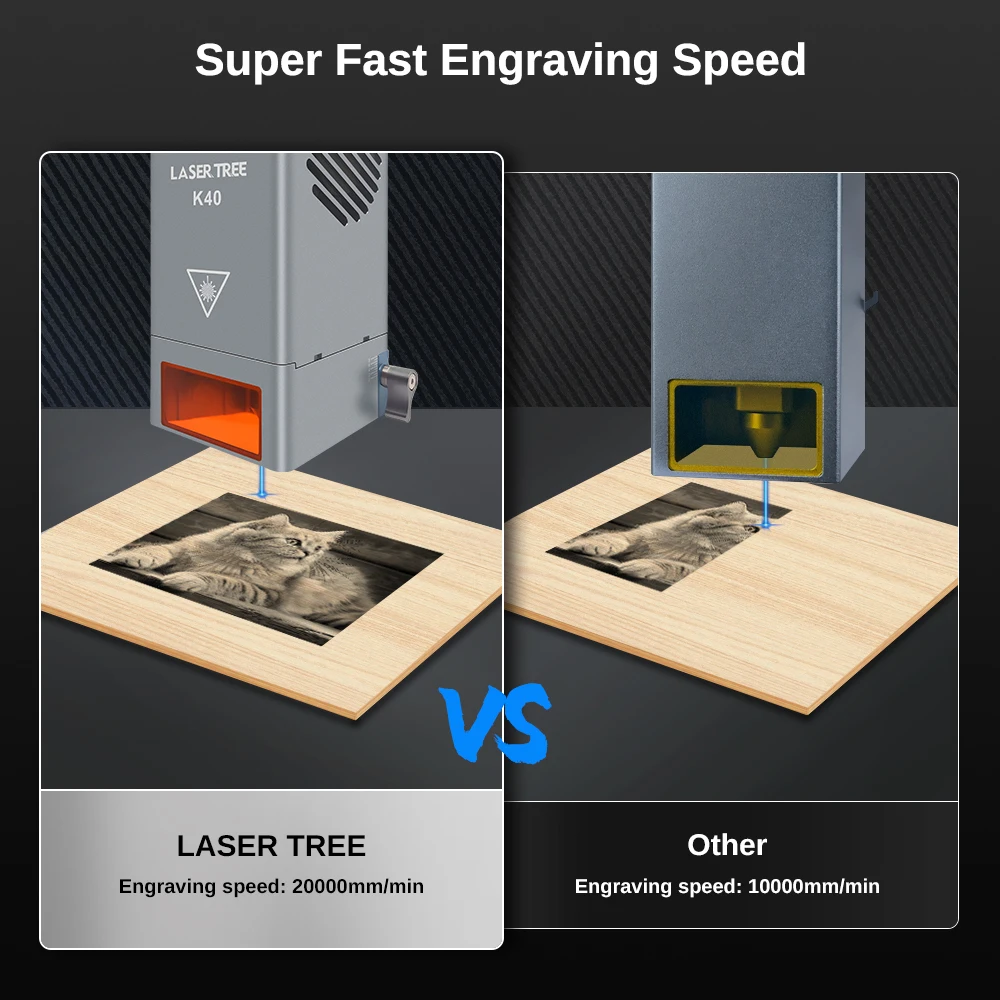

Super Fast Engraving Speed

Engraving speed:20000mm/min

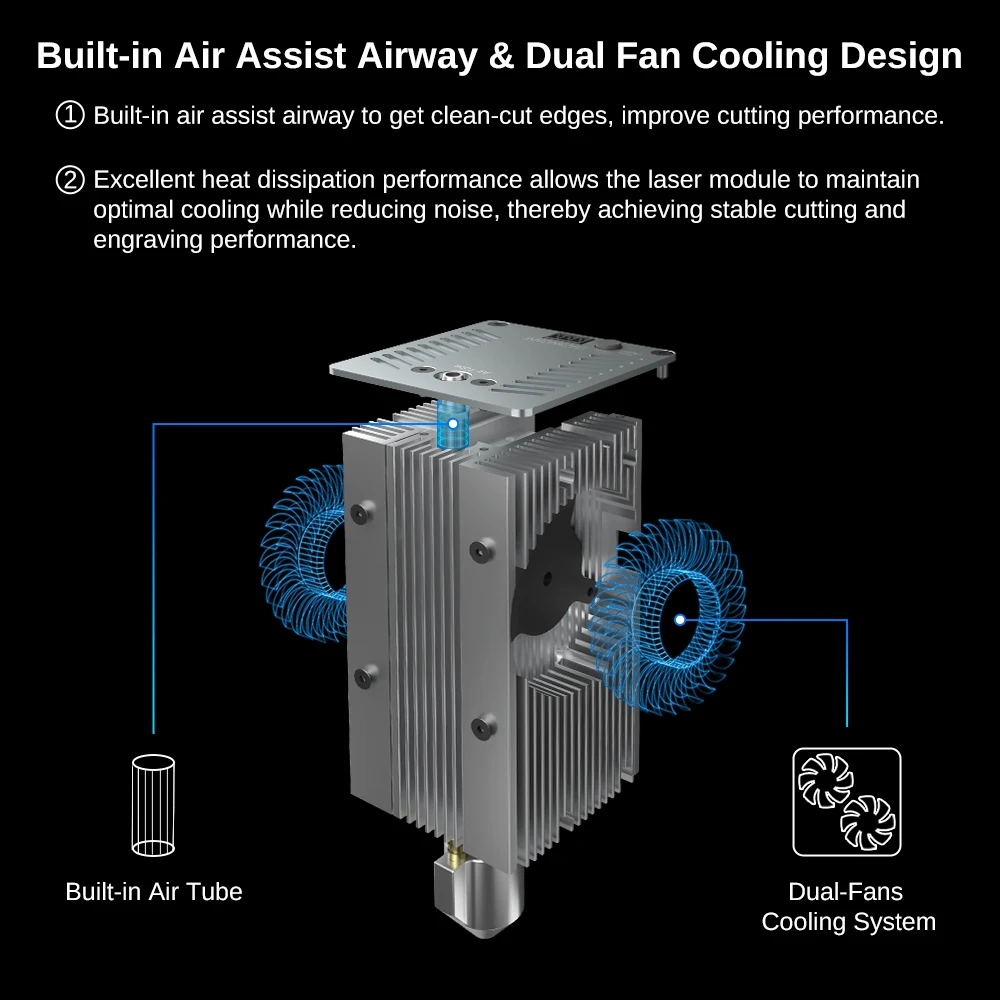

Built-in Air Assist Airway & Dual Fan Cooling Design



Built-in air assist airway to get clean-cut edges, improve cutting performance

Excellent heat dissipation performance allows the laser module to maintainoptimal cooling while reducing noise, thereby achieving stable cutting andengraving performance.

Temperature Display & Alarm Function

Excessive working temperatures can reduce the life time of the laserhead at an accelerated rate.

When the working temperature of laser module over 55°C, it willsound an alarm through the buzzer.

Easy to installation

① Integrated dovetail guide rail design, the guide rail length is 115mm, ensuring that the laser head can move smoothly, making it easy to adjust the height and focus position.

②In order to improve the compatibility to different laser engraver machine, K40 provide a solution by sliding plate with multi holes for installation compatibility.

Copper Core Protection Lens.

Easy to clean and replace when the lens is contaminated or dusty.

Laser View Window

Anti-blue light view window with optical glass material, protective your eye from blue light, no fear of fiames.

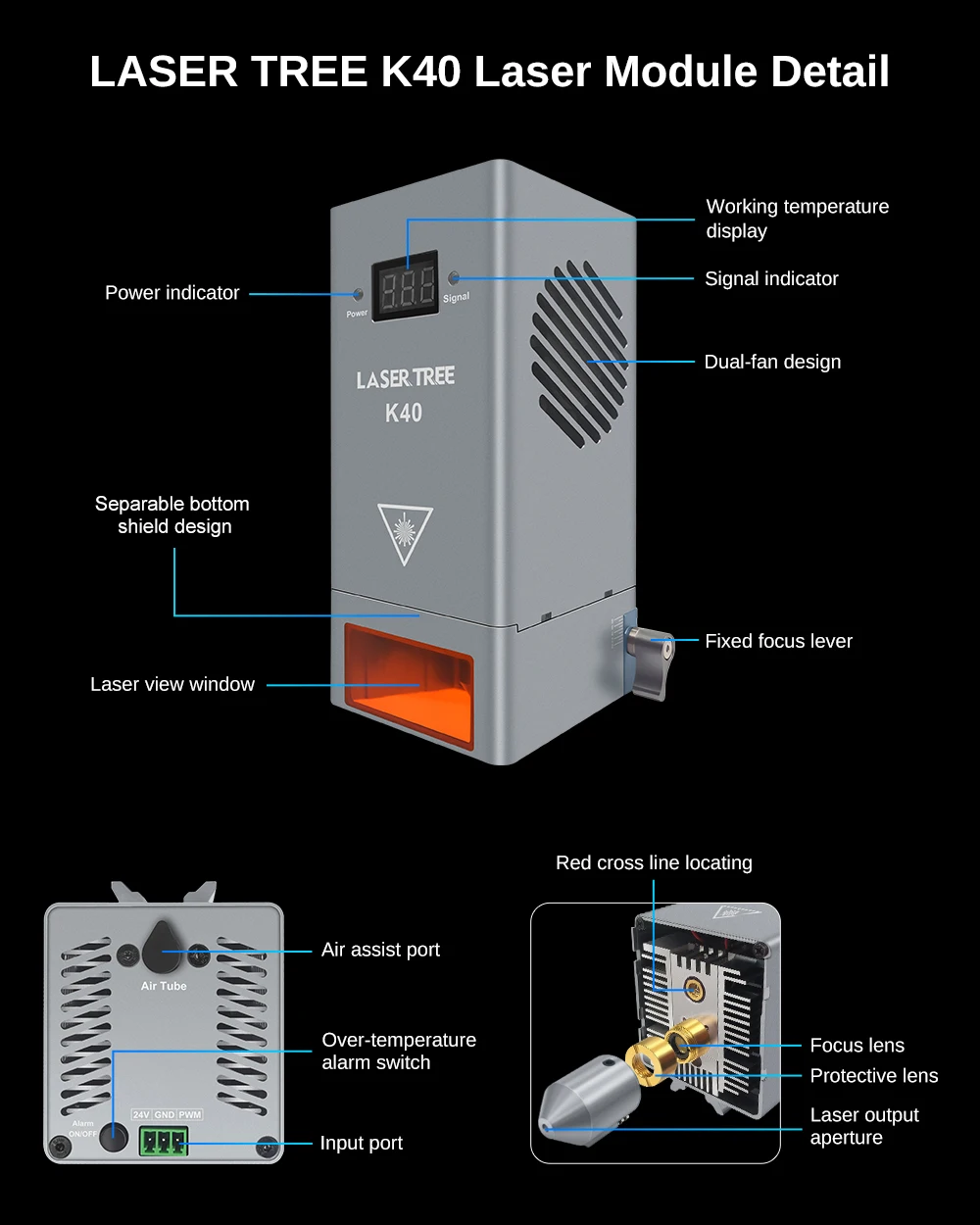

LASER TREE K40 Laser Module Detail

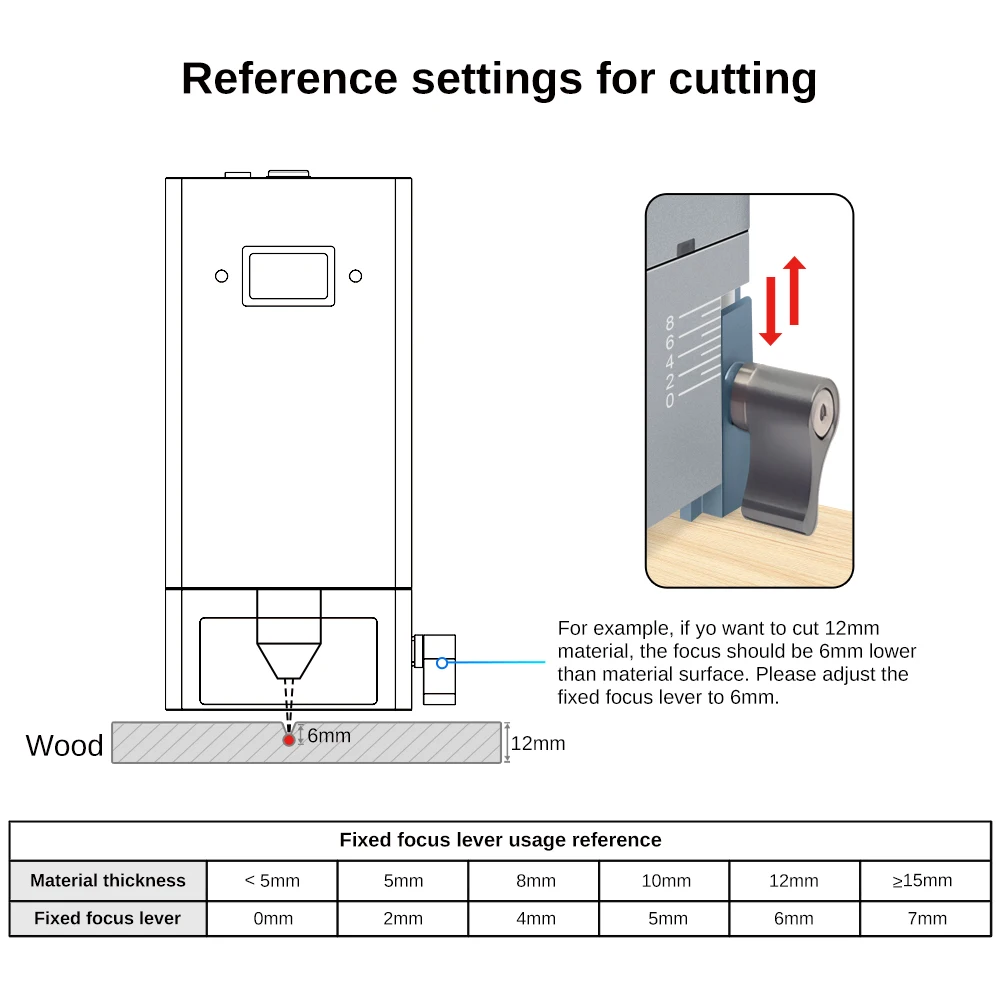

Equipped with fixed focus lever, easy to set the focus

Focus bar design makes it easy to set the focus of the module.

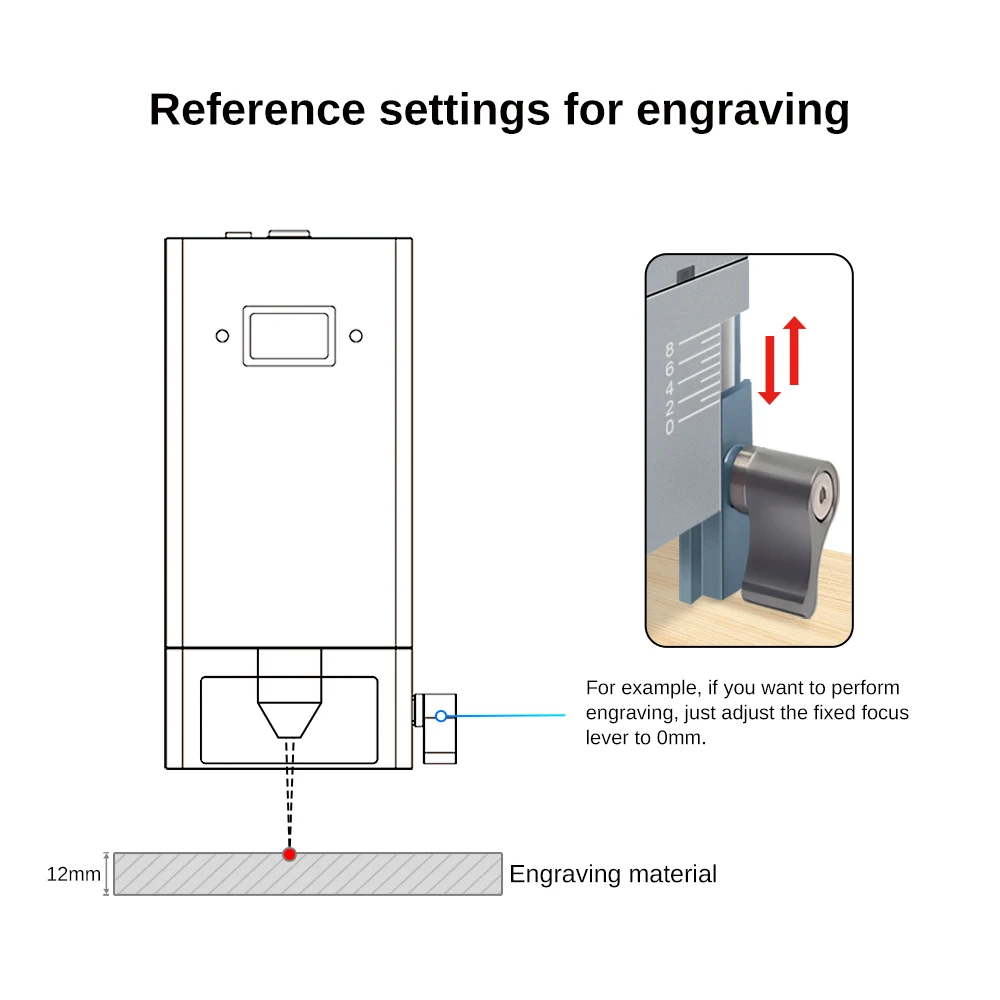

Reference settings for engraving

LT-K40&LT-K30&LT-K20:

40W/30W/20W Optical Power with Air Assist Laser Head
