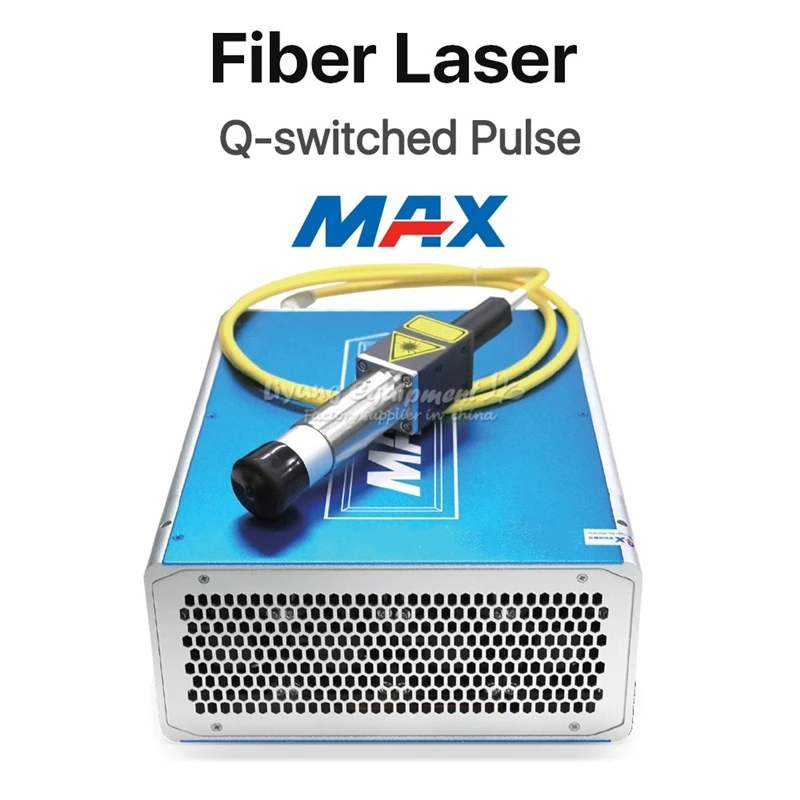

MAX Fiber Laser Marking Machine 20W 30W 50W Fiber Laser Source Module GQM 1064nm

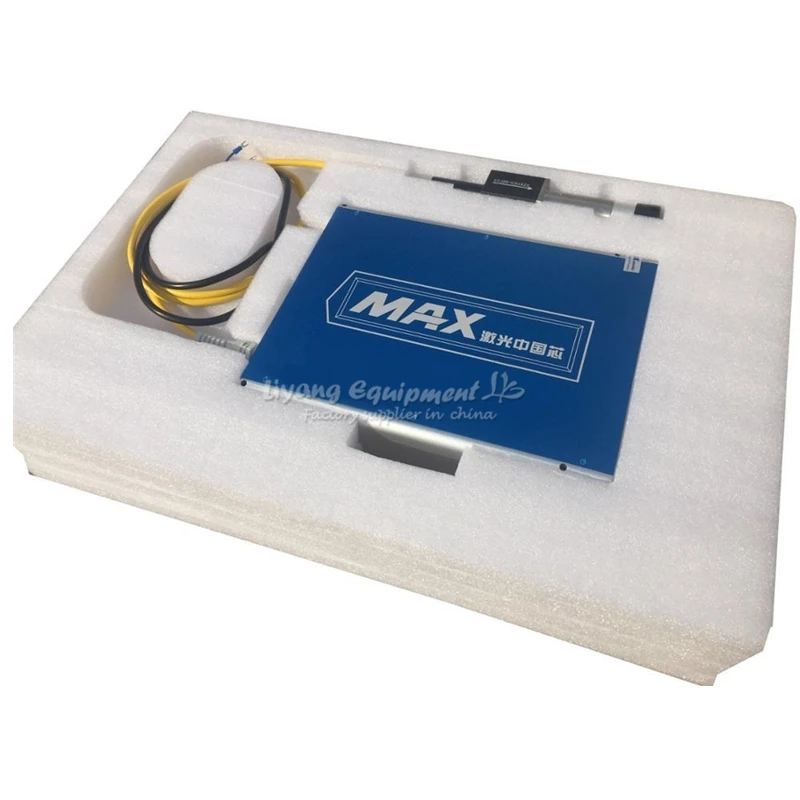

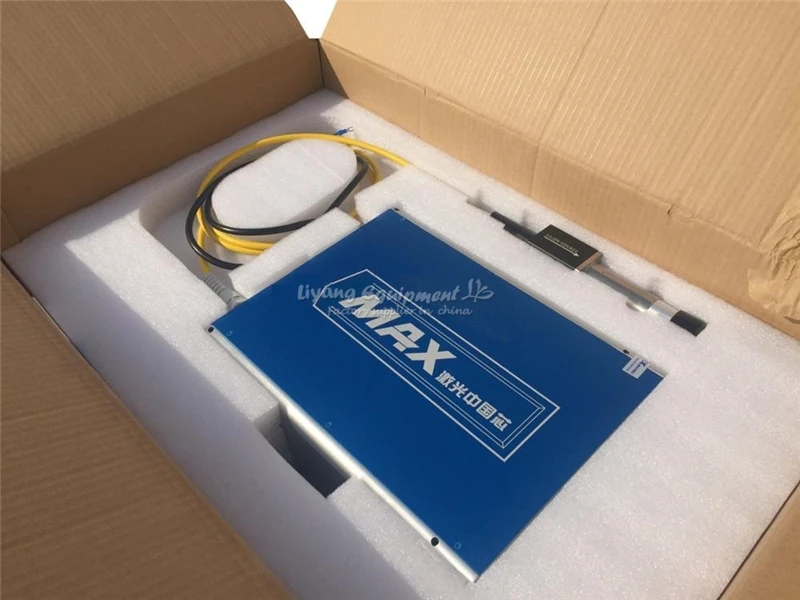

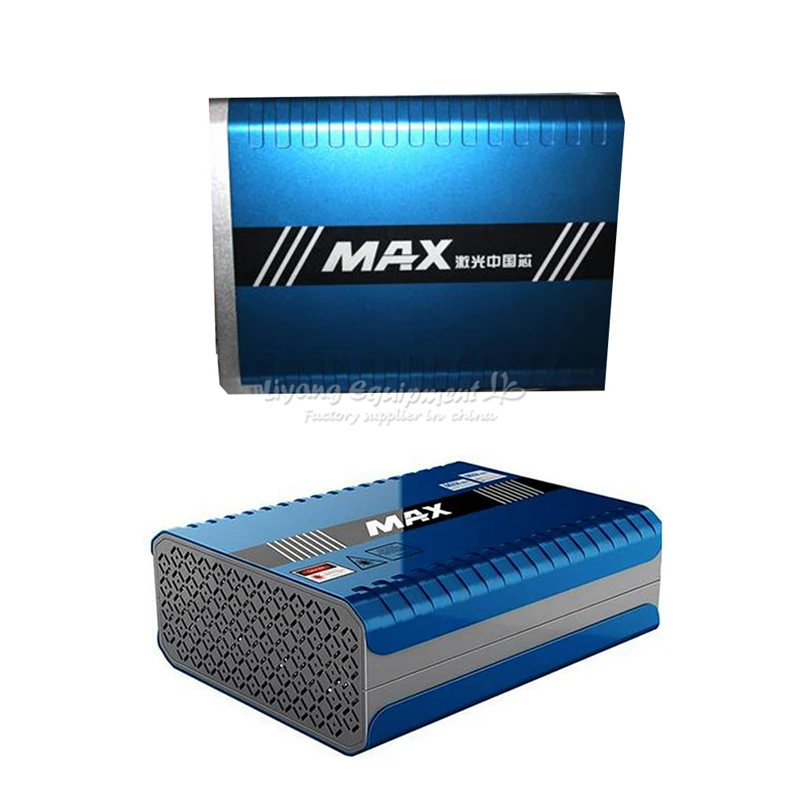

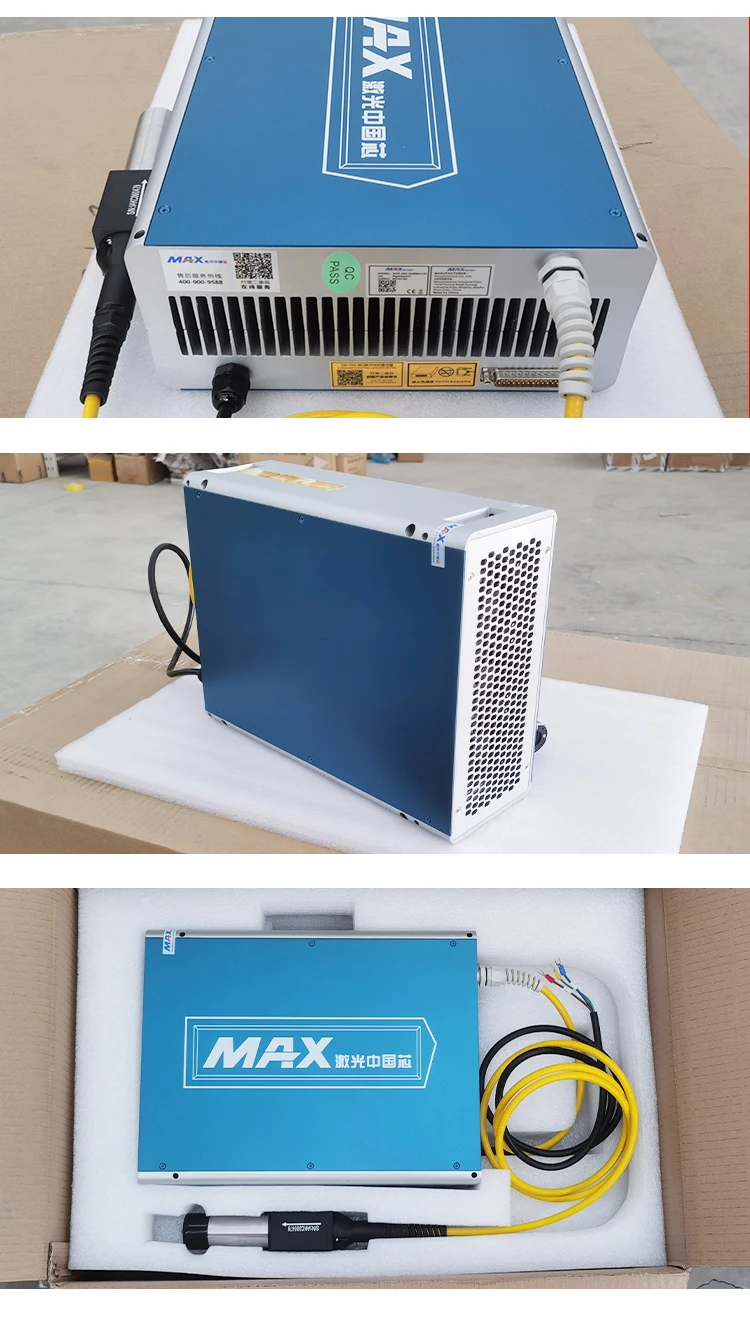

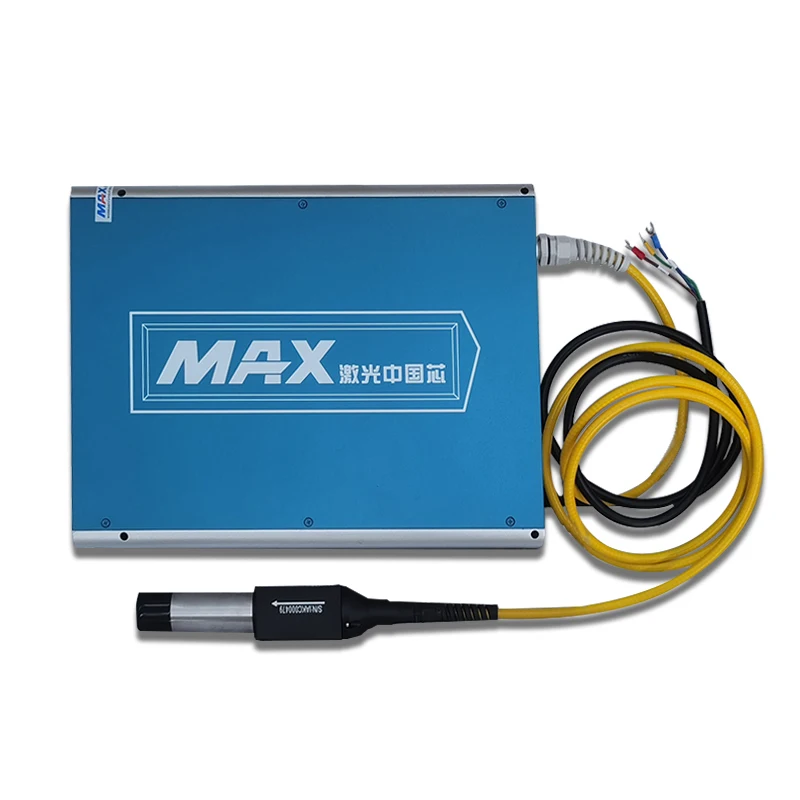

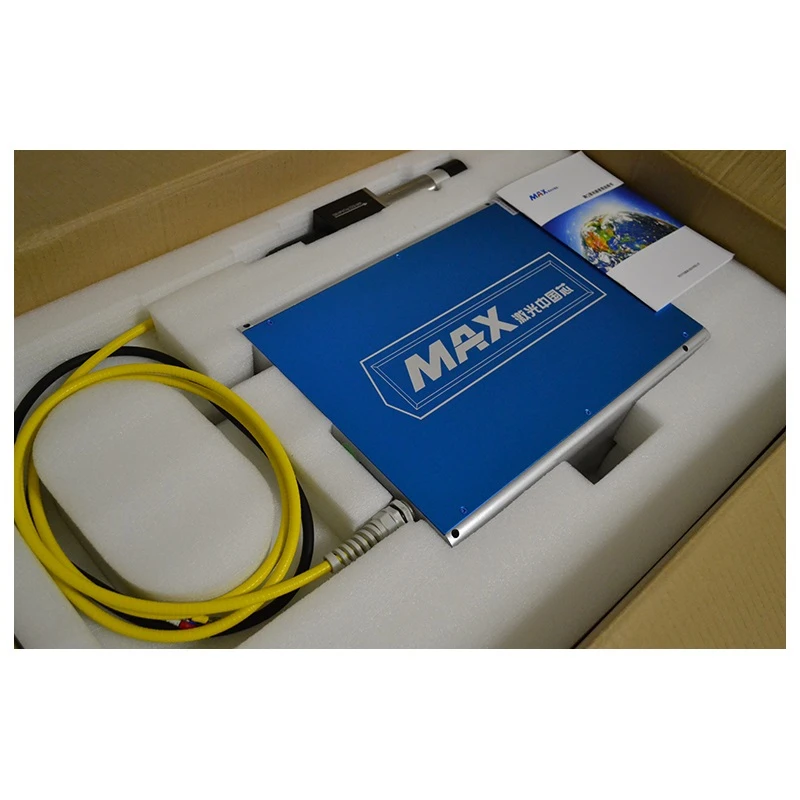

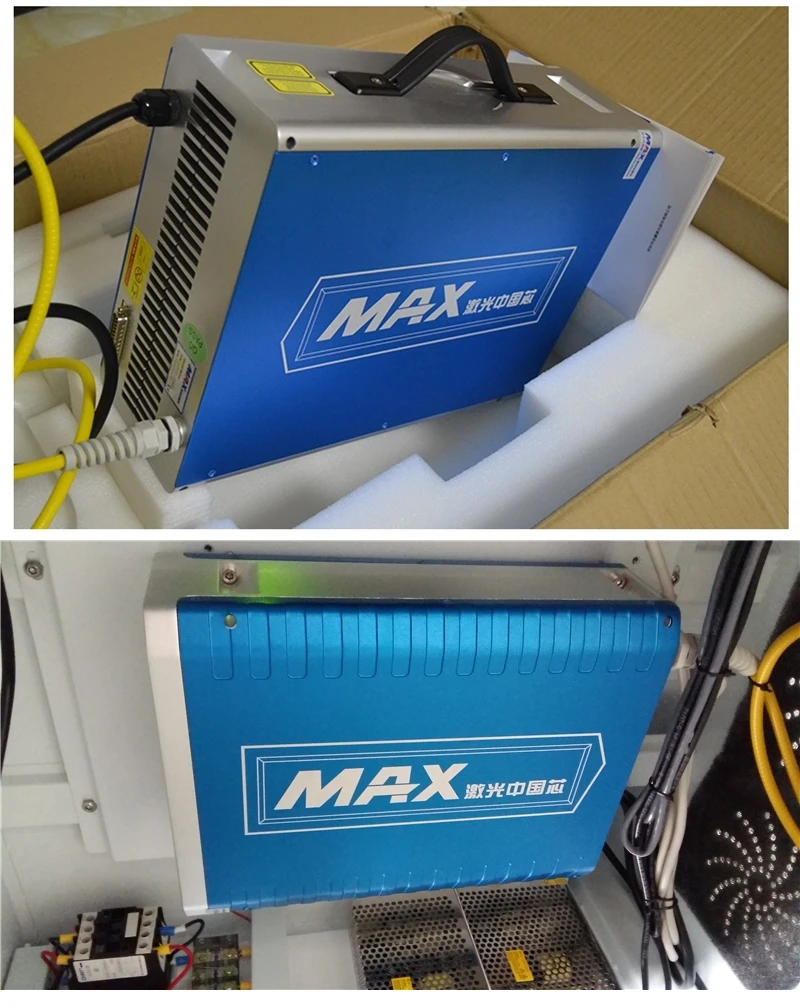

Original MAX Brand 20W 30W 50W Power Q-switched Pulse Fiber Laser source Module GQM 1064nm High Quality for Laser Marking Machine DIY Or Parts Replacement

Quality:

Model:20W>20L>20X

Model:30W>30L>30X

Model:50W>50X

Customer can choose suitable model to buy based your general budget.

Q-Switched Pulsed Fiber Laser Series are maintenance-free fiber lasers based on the Q-switched technology and MOPFA. These lasers deliver light centered at 1064nm and guided to the work piece via a flexible metal-sheathed fiber cable. It provides a set of pulse durations, repetition rates and peak powers. The optical head may be equipped with an opto-isolator, that makes it possible to mark directly on non-metallic materials (plastic, wood, paper, etc.) and some metal with low reflectivity.

• High beam quality fiber output.

• Superior reliability, long lifetime.

• No shadow or virtual open circuit phenomenon when processing on special materials.

• Universal DB-25 interface.

•

Technical Parameters

NO.	Characteristics	Test Conditions	Min.	Typical	Max.	Unit
1	Mode	Pulse
2	Polarization	Random
3	Beam Quality M⊃2;	Pout=Pnom	1.1	1.3	1.6
4	Center Wavelength	Pout=Pnom	1055	1064	1070	nm
5	Spectrum Width(3dB)	Pout=Pnom		5	10	nm
6	Average Optical Power(Pnom)	MFP-5W	4.5	5	5.5	W
		MFP-10W	9.5	10	10.5	W
		MFP-20W	19.5	20	20.5	W
		MFP-30W	29.5	30	30.5	W
		MFP-50W	49	50	51	W
7	Power	Range	10		100	%
8	Single Pules Energy	MFP-5W		0.45		mJ
		MFP-10W		0.56		mJ
		MFP-20W		0.67		mJ
		MFP-30W		1		mJ
		MFP-50W		1		mJ
9	Optical Pulse Width(FWHM)		90	100	110	ns
10	Pulse Repetition Frequency (PRF.)	MFP-5W	10		30	KHz
		MFP-10W	22		50	KHz
		MFP-20W	30		60	KHz
		MFP-30W	30		60	KHz
		MFP-50W	50		80	KHz
11	Output Power Stability	Pout=Pnom			5	%
12	Beam Diameter	1/e2	6	7.5	9	mm
13	Beam Ellipticity				90	%
14	Delivery Cable Length		1.9	2.5	3	M
15	Laser Startup Time	Pout=Pnom, 10%~90%	110		140	us
16	Laser Shutdown Time	Pout=Pnom, 10%~90%	110	150	150	us

Applications of Laser Marking:

Widely used for all metal marking, some plastic and parts of stone engraving.

Ceramic, plastic keys, metal and non-metallic

material marking

Graphic engraving

Special materials processing, etc.

Questions usually been asked by the customers

1) Does the laser have “auto verification” mode in which it can diagnose itself for possible problems?

=> It has a protection software inside.

2) Can an abrupt electricity cut damage the laser? Is it necessary to connect the laser to electricity via UPS?

=> an abrupt electricity cut won’t damage the laser, our laser has been tested in this way for many many times. Not necessary to connect to UPS.

3) Is the laser filled with neutral gas (we are thinking about the risk of opening it by the customs at the border)?

=> No neutral gas, it’s safe.

4) Can anything bad happen to the laser if it is scanned by X-ray on the border?

=> Please don’t worry, our laser has been sold to many countries, it very safe. Because there is no dangerous materials in it that will lead to fire or explosion.

5) Does the laser have a CE certificate necessary to be sold to European Union?

=>Yes

6) What is the lifetime?

The lifetime of the lasers are 100,000 hours, the lifetime of the pump diode is 100,000 hours.

Routine maintenance and matters needing attention

1.When laser working, don’t touch or hit the moving table;

2. Laser source and optical lens are fragile, should be handled with great care and avoid vibration;

3. When a malfunction occurs in the machine, work should be stopped immediately and handled by a professional staff member;

4. Pay attention to the switch ON/OFF order;

5. Pay attention to keep indoor and machine surface clean and tidy

General Warranty

All products are warranted by MAX against defects in materials and workmanship for the period of time as set forth on the applicable purchase order or in the specifications starting with the date of shipment. Max also warrants that this product will meet applicable specifications under normal use.

MAX shall,at its option, repair of replace any product that proves, in the reasonable opinion of MAX, to be defective in materials or workmanship during the warranty period. All products repaird or replaces under warranty are only warranted for the remaining up-expired period of time in the original warranty for the particular defective product. MAX reserves the right to issue a credit note for any defective products that have proved defective through normal usage.

Warranty limitations

Products, parts(including fiber connectors)or equipment which have been tampered with are not covered by this warranty.

1. Be tampered with ,opened, disassembled, opened, or modified by persons other than MAX personnel.

2. Misused, neglected, or damaged by accident, used in applications which exceeds their specifications or rating.

3. Outsied of environmental specifications for the products.

4. Used with buyer software or interfacing.

5. Improperly installed, maintained or otherwise abused or used other than in accordance with the information and precautions contained in this User’s Manual.

6. It is the customer’s responsibility to understand and follow operating instructions in this User’s Guide and specifications prior to operation-failure to do so many result in voiding this warranty.

7. Accessories and fiber connectors are not covered by this warranty.

Important

Buyer must claim under the warranty in writing no later than 31 days after the claimed defect is discovered. This warranty does not extend to any third party, including without limitation Buyer’s end-users or customers, and does not apply to any parts, equipment or other products not manufactured by MAX.
