Since air transport does not support sending liquid lubricants, the gift has been cancelled.
Packing Quantity:

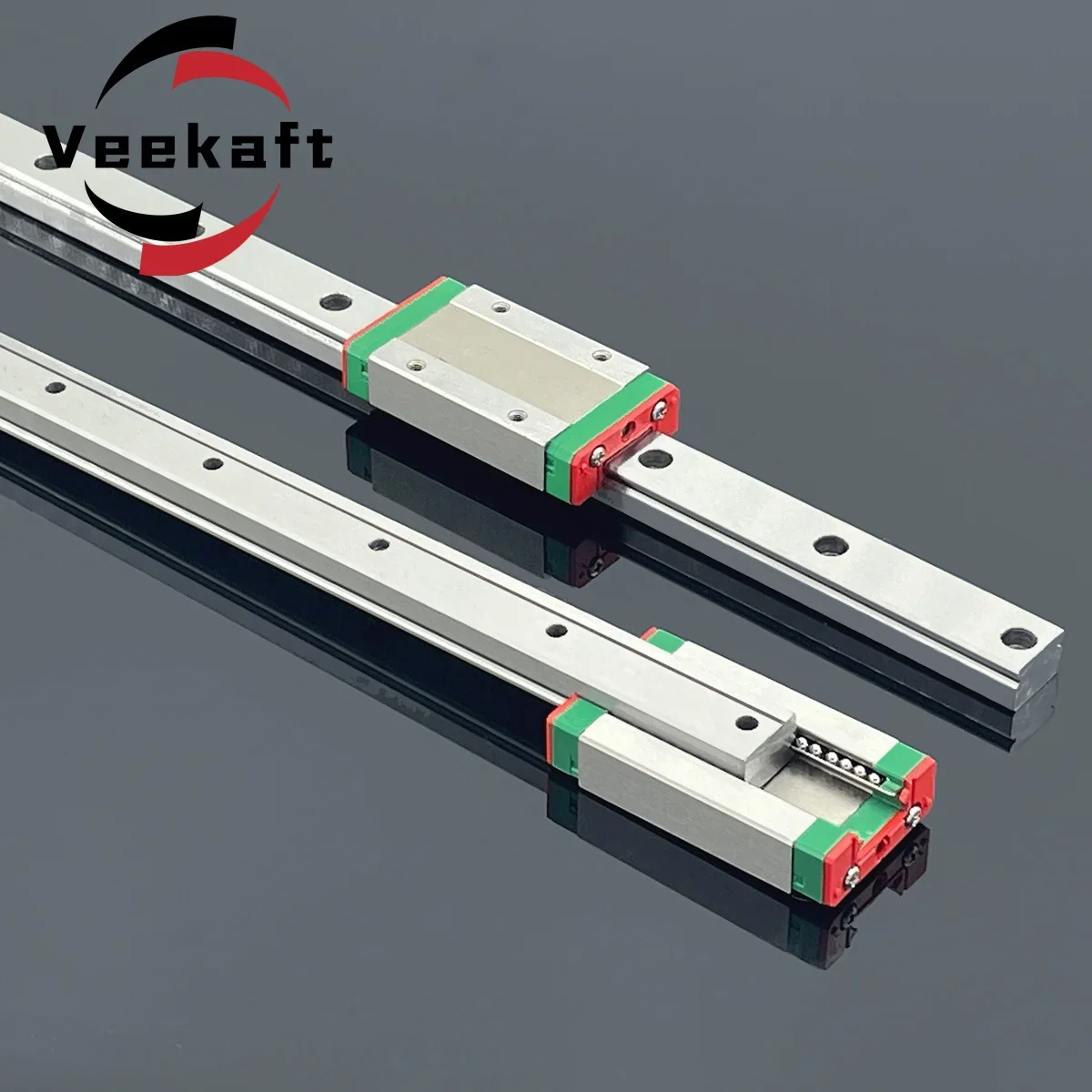

1 set= 1 pc MGN12H/C(block)+1 pc guide
If you choose single 1 MGN12C or 1 MGN12H,
the actual quantity will be 1 block (do not include the guide).
* The guide rail and the slider are Class C, we think it is not necessary to provide additional steel balls, because the precision size of the steel ball may not match the size of the slider steel ball, such as -2μ -4μ ± 0 +2μ, which may shorten the slip The useful life of the block.
* If you need additional steel balls, we can give them away for free. Operation method: place an order and leave a message, by default, a steel ball with a tolerance of ±0 will be provided. (Polish warehouse does not participate)
The slide block preload is ZF (normal clearance)/Z0 (no preload)/Z1 (light preload)
The pre-tightening force of ZF-Z0-Z1 increases successively,
Z0/ZA is shipped randomly and the price is the same.
When the slider is vertical,
ZF can slide under the gravity of the slider.
Z0 can slide under thrust.
This is only a rough description, not rigorous, without considering factors such as lubricating oil, it can only be used as a reference. (Considering that some buyers use this as a standard for the quality of the slider)
We recommend that most 3D printers or light desktop devices use ZF/Z0 preload
Z1 is only suitable for occasions where accuracy and life are required.
We also provide nickel-plated rails/chrome-plated rails/blackened rails/44C martensitic stainless steel rails, as well as stainless steel 440C sliders/plated sliders
If you are interested in them, please contact us.
D***a –
product came as expected, quick delivery and good quality. happy with the purchase.
Color: MGN12H Ships From: CHINA Guide Length: 250mm
A***o –
Rails look good for the price, but they don’t come prelubed, and they need some cleaning+lubing before being used
Color: MGN9C Ships From: CHINA Guide Length: 400mm
j***s –
Conforming annunce
cor: MGN12H Envio de: CHINA Comprimento de guia: 350mm
P***s –
seems good quality not tested yet
Color: MGN12H Ships From: CHINA Guide Length: 350mm
I***N –
Very fast shipping the product arrived well, The Wrap arrived a little damaged but the rail in perfect condition
Color: MGN15H Ships From: CHINA Guide Length: 550mm
R***r –
Excellent
Color: MGN9H Ships From: CHINA Guide Length: 100mm
V***- –
Just super, ordered separately carriage. And the kit came right as I needed!
Color: MGN15H Ships From: China Guide Length: 300mm
R***z –
The product arrives in perfect conditions
Ships From: CHINA Guide Length: only 1pc MGN block Color: MGN12C
U***r –
well packaged
Ships From: CHINA Guide Length: 300mm Color: MGN12H
S***z –
I arrived all well wrapped, it was what I expected
Ships From: CHINA Guide Length: 350mm Color: MGN9H
A***. –
Arrived well packed in the box, came these black pieces in case you need to remove the cart from the rail, it is as you need… I recommend ..
Ships From: CHINA Guide Length: 400mm Color: MGN12H
P***s –
Fine delivery. Works excellently
Ships From: CHINA Guide Length: 100mm Color: MGN9H
P***i –
100% OK
Ships From: CHINA Guide Length: 650mm Color: MGN15C
m***d –
perfect. this was 200mm which is good. quality seem good as well. I will be buying a larger one soon since everything went smoothly
Ships From: CHINA Guide Length: 200mm Color: MGN12H
K***k –
Super product. Meets my expectations 100%
Ships From: CHINA Guide Length: 550mm Color: MGN15H
