Ortur Aufero Laser Module Laser Head Laser Engraving Machine 10W 450nm 20000MM/MIN Wood Marking Cutting Tools Acrylic

Features

Widely Compatible with Ortur Laser Engravers: Ortur 10W Optical Power Laser Module is compatible with Ortur Laser Master 2, Ortur Laser Master 2-S2, Ortur Laser Master 2 Pro, Ortur Laser Master 2Pro-S2, Ortur Laser Master 3 Laser Engravers,Aufero Laser Master 2,Aufero Laser Master 1. Unleash your creativity on hundreds of materials, including acrylic, metal, wood, stainless steel, glass,ceramics, cylinders, leather, food, paper, fabric and more.

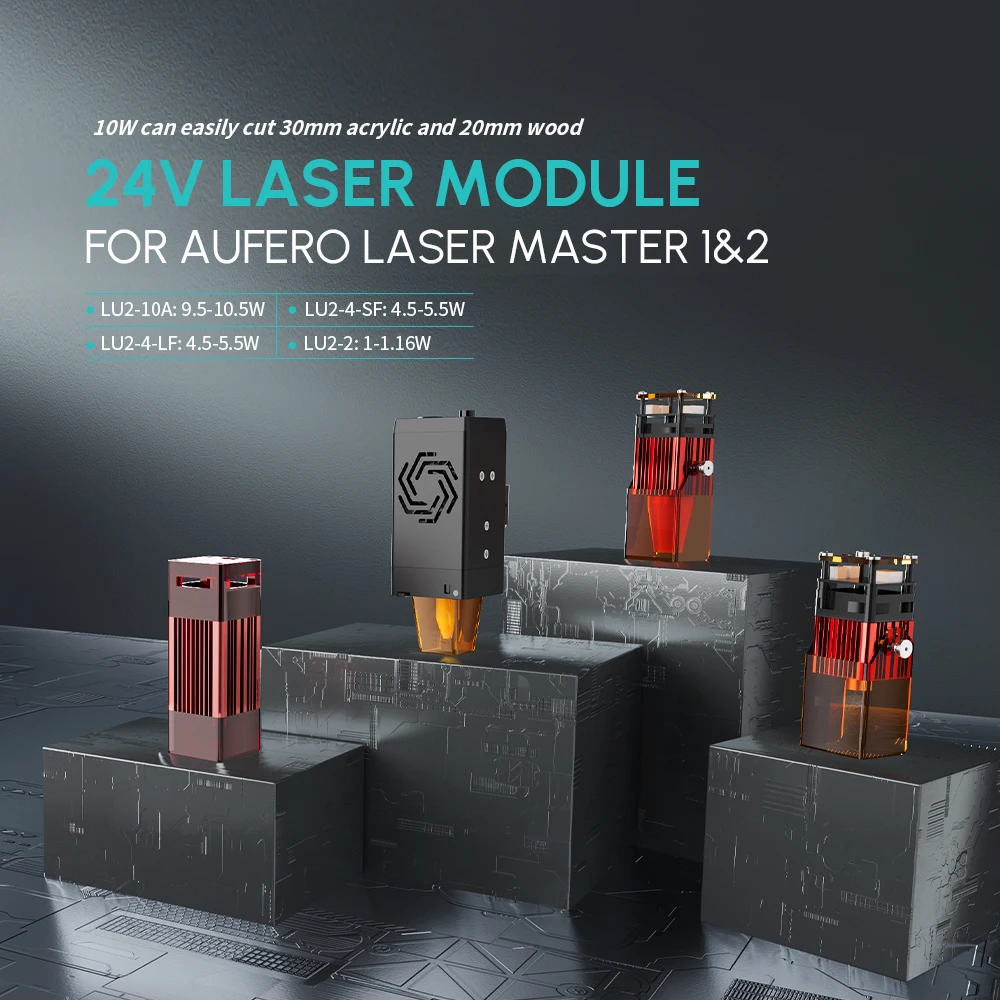

LU2-10A Fixed Focus Laser Module for Ortur Aufero

True 10W Output

The 3rd Beam Combining Technology With Double Compression Spots

5.5W Laser 1+5.5W Laser 2+Light Combing Lenses

Focus Light 0.05X0.1mm

Engraving Speed:5000-20000mm/min
Wavelength: 445±5NM

Laser Power: Electric Power 40W

Optical Power 10W

LU2-2 Fixed Focus Laser Module

It has a smaller Luminous Cavity, so it’s lower power but high cost-effective, also has a smaller Focal Spot.

Optical Power: 1,000-1,600mW

Voltage: 5-6V

Electric Current: 1.1-1.35A

Wavelength: 445±5NM

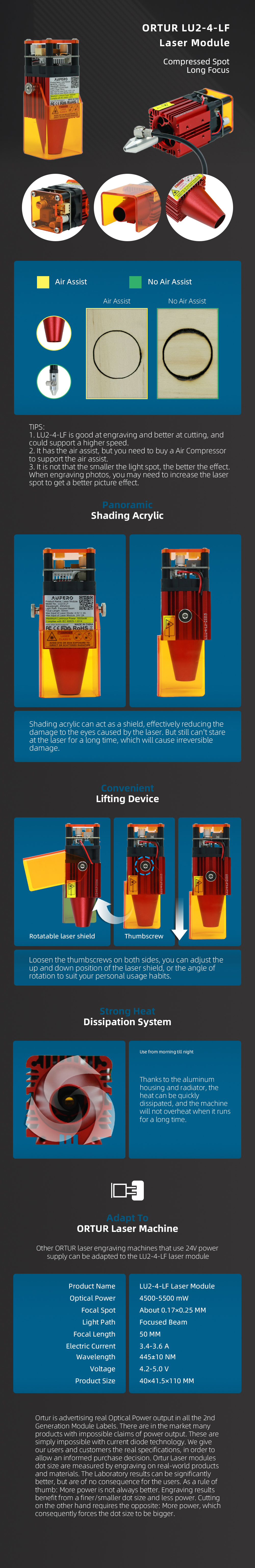

LU2-4-LF Optically Compressed Laser Module

It has a longer Focal Length, so it has a longer Depth of Field, but a bigger Focal Spot.

Optical Power: 4,500-5,500mW

Voltage: 4.2-5.0V

Electric Current: 3.4-3.6A

Wavelength: 445±5NM

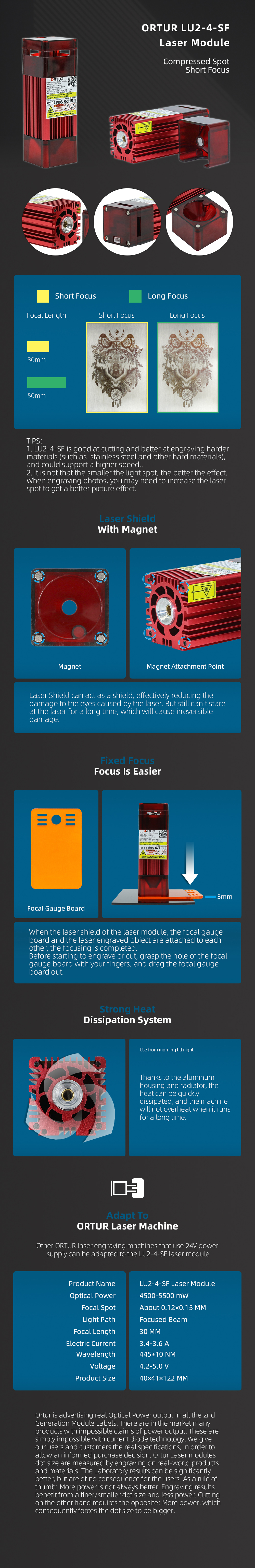

LU2-4-SF Optically Compressed Laser Module

It has a shorter Focal Length, so it has a smaller Focal Spot, but shorter Depth of Field.

Optical Power: 4,500-5,500mW

Voltage: 4.2-5.0V

Electric Current: 3.6-3.8A

Wavelength: 445±5NM

TIPS:

LU2-10A: More Powerful Engraving with True 10W Output Power -Aufero LU2-10A is newly upgraded with a 10W laser module, which makes the cutting speed up to 15,000 mm/min. The compressed point is 0.05mm x 0.1mm.The optical power reaches to 10W. It can cut 30mm acrylic and 20mm wood. At the same time, the laser module of the engraving machine has a built-in air-assist interface, which is designed for cutting.

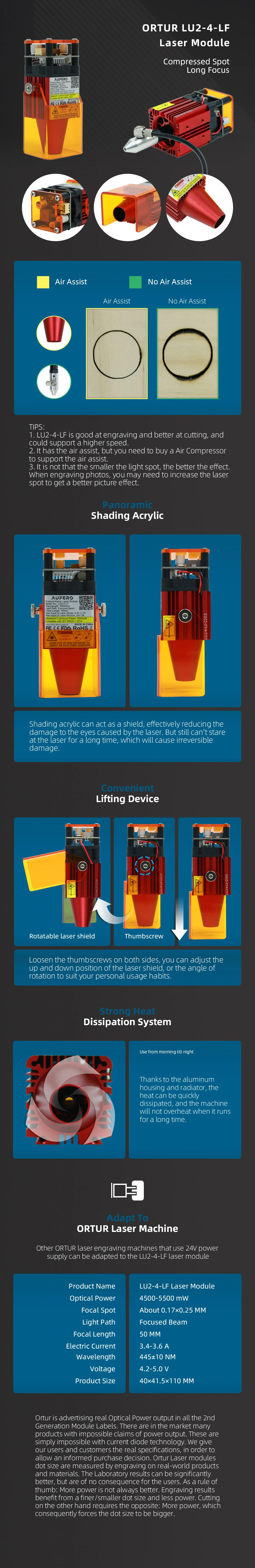

LU2-4-LF long focus laser module of the Aufero laser engraver has a real luminous power of 4,500-5,500mw and 0.17 x 0.25mm focal spot. With high power and a long depth of field, it is good for engraving and cutting.

Note: The module can work with an air compressor (not included in the package) for enhanced performance. Aufero recommends an air source with a flow of ＞40ml/min.

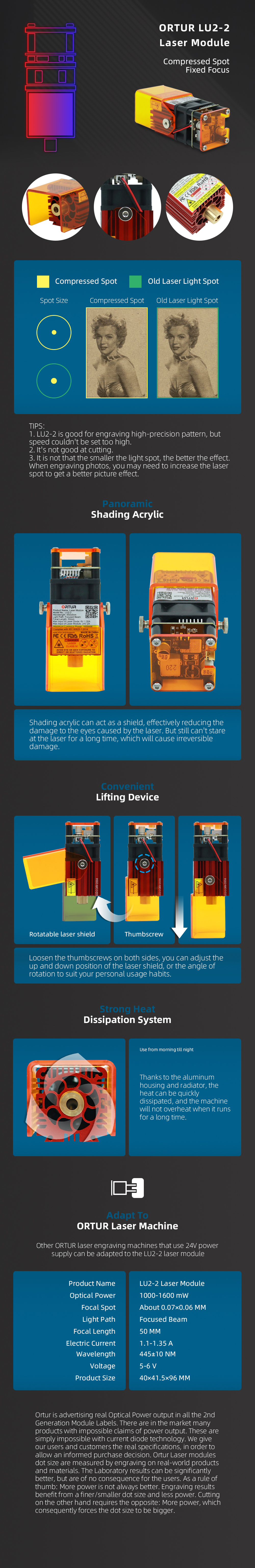

LU2-2 fixed focus laser module of the Aufero laser engraver has a real luminous power of 1,000-1,600mw and 0.07 x 0.06mm focal spot, perfect for engraving high precision patterns.

LU2-4-SF short focus laser module of the Aufero laser engraver has a real luminous power of 4,500-5,500mw and 0.12 x 0.15mm focal spot. With high power compressed spot, it is good at cutting and better at engraving hard materials.

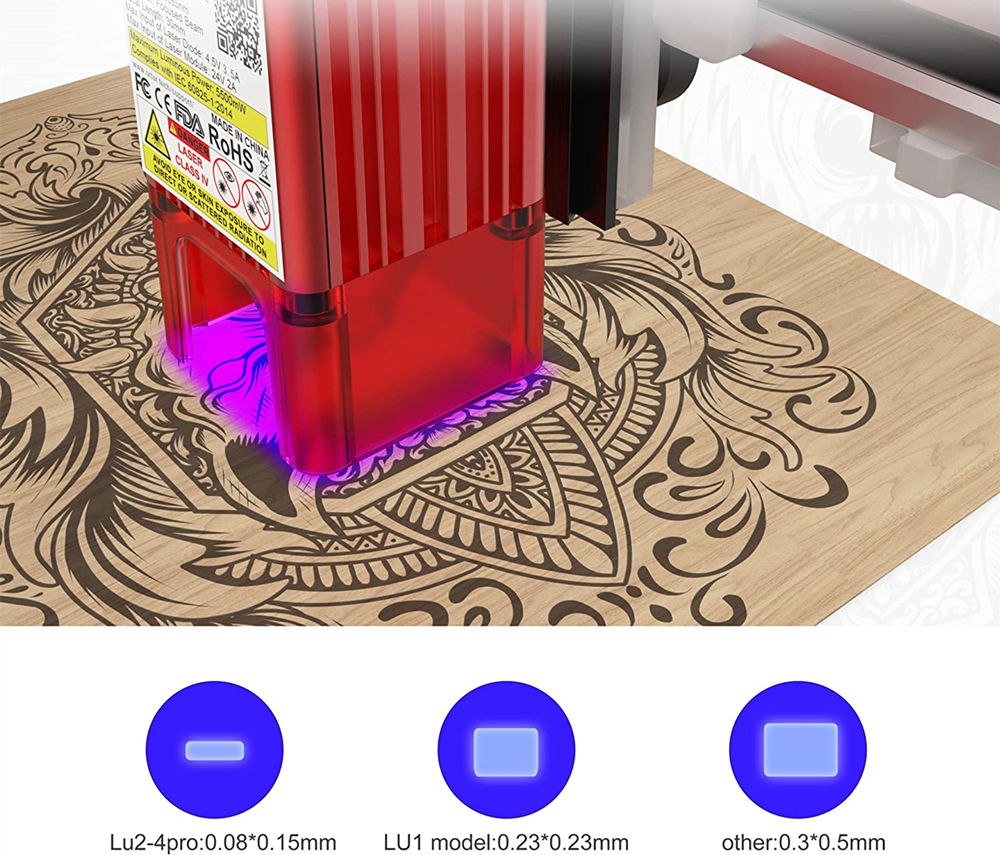

It is not that the smaller the light spot, the better the effect. When engraving photos, you may need to increase the laser spot to get a better picture effect.

The competitors may falsely promote the power of similar laser modules as 40W or even 60W, please take care.

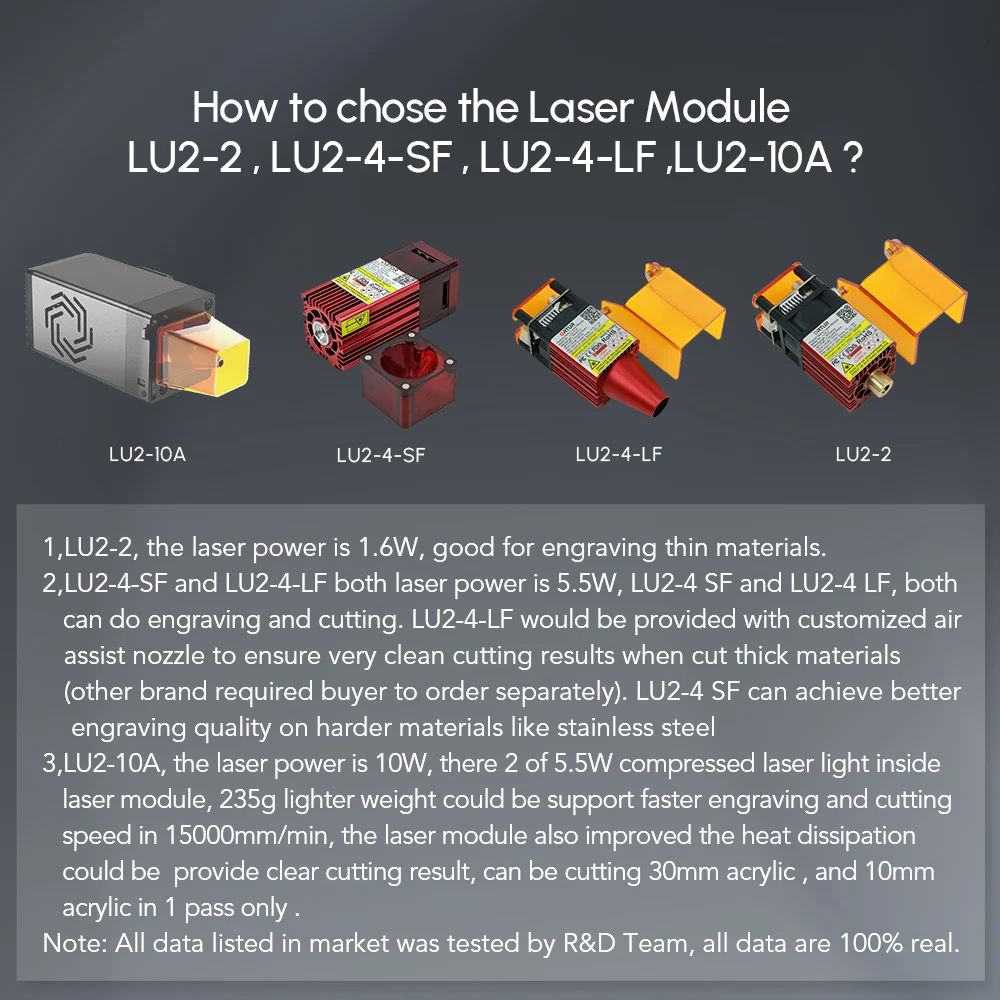

Why Chose LU2-10A?

1. with Air-assist: Blowing through the air nozzle, which improves cutting performance and reduces burn marks.

2. Super fast engraving speed: 304 stainless steel, ultra-fast engravingon stainless steel-30mm/s.
3. Remarkable cutting ability: Cutting through 8-10mm thickness plywood by one pass at speed of 1.5mm/s.
4. Fixed focus laser head: suitable for three-axis engraving machine, easy to install.
5. Original diode: Original diode, high quality, 20,000 hours life time!
6. Strong compatibility: Suitable for various types of laser cutting machines and engraving machines.
7.Blue laser module with air assist, high speed, high stability, excellent cutting effect, bright blue light, easy positioning when engraving.
8.Easy to assemble,small, compact, convenient and easy to install.

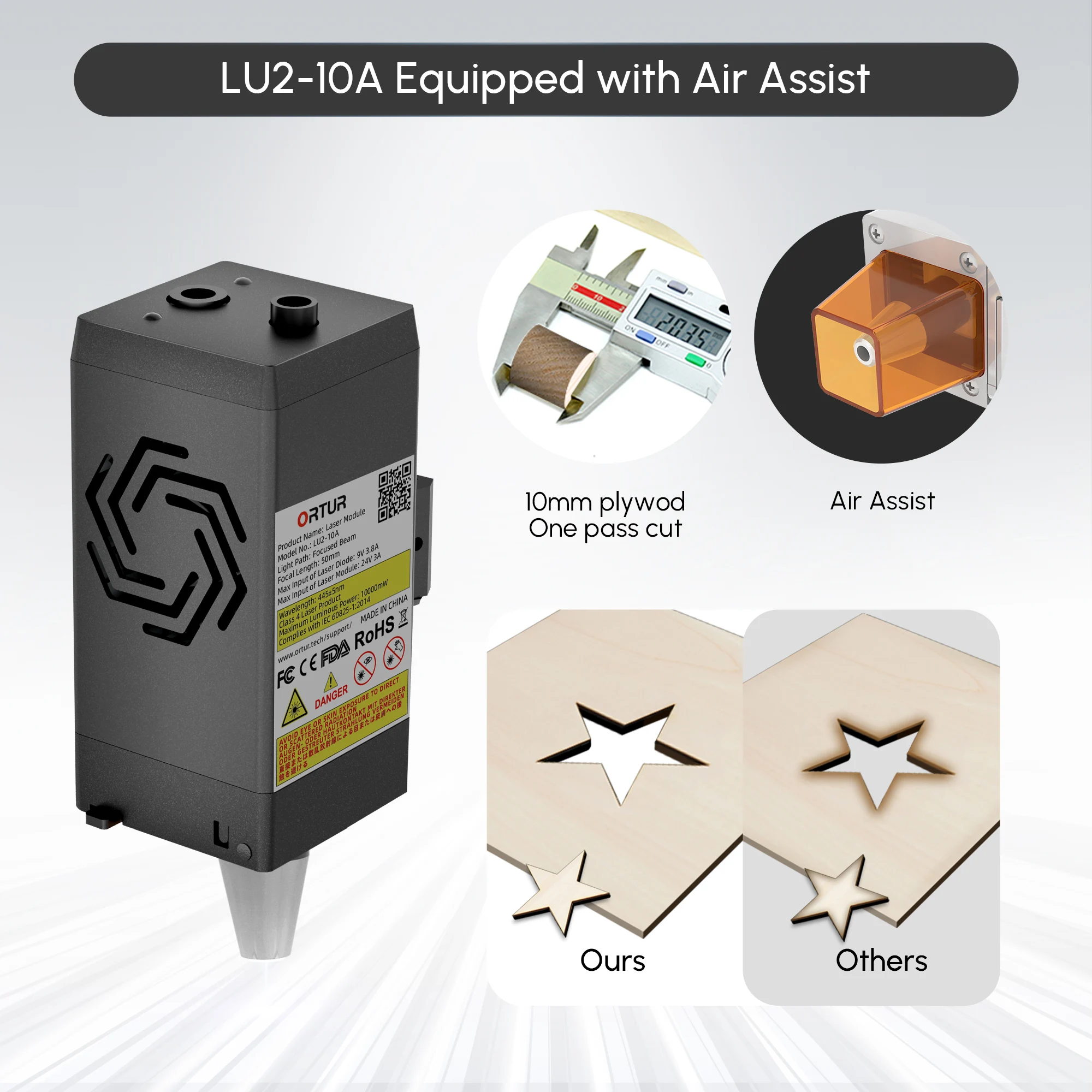

Air assist system: When performing laser cutting jobs, an air assist system blows air through the air nozzle, enhancing the cutting performance and reducing the burn marks. You can remove the air assist nozzle when you are doing non-cutter jobs.This laser kit only comes with an air assist nozzle, to make full use of the air assist feature, you may need to prepare an air assist pump and air tube yourself.

Laser protective cover: It can effectively filter blue light and can work without wearing goggles. We recommend using this form for engraving.

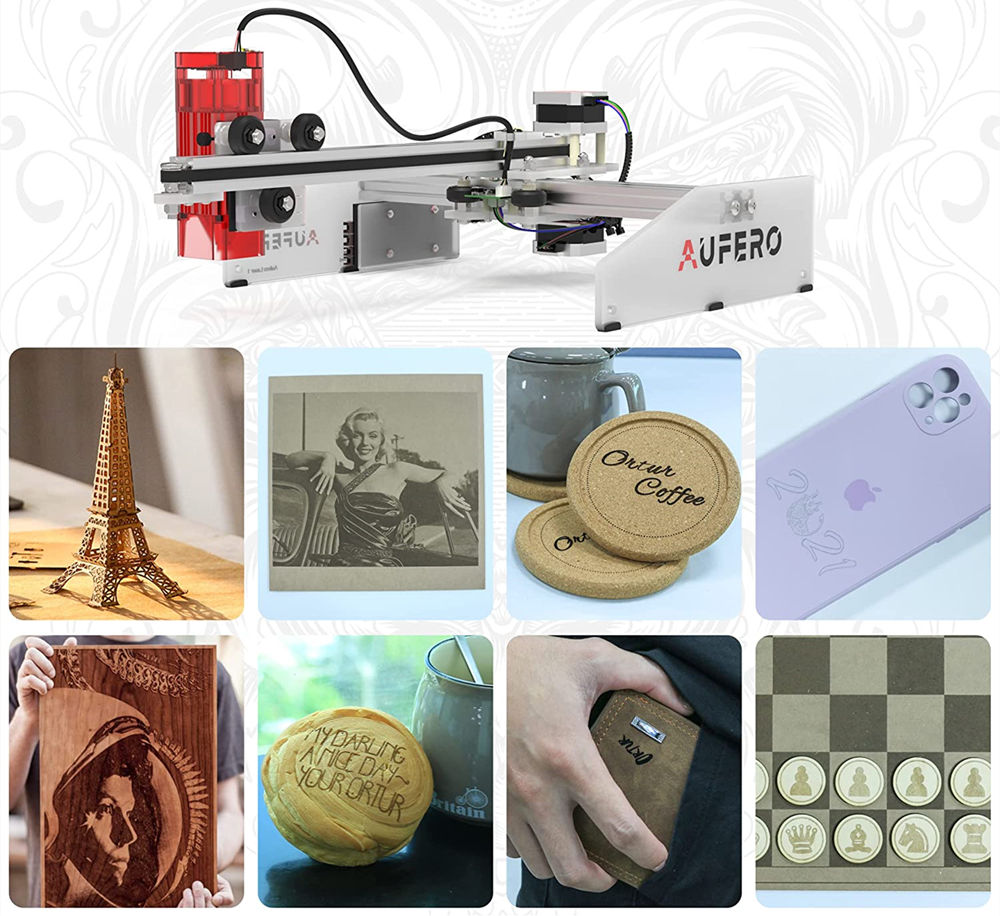

Applicable materials: Ceramics Bone MDF Coated glass Black acrylic Plywood Brushed stainless steel Stone Bamboo Leather Rubber Alumina Solid wood, etc.
