Product Specification
Model ：C40-EAIR/C80-EAIR
Heatsink Material：Aircraft Aluminum + Brass Shell
Luminous Color：Blue
Cooling Mode：Temperature sensor intelligent control + 10000 rpm 40mm cooling fan
Dimension ：4x4x12 CM
Can Cut/Engrave : MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum/PVC
Module Input：40-80W
Optical power output ：4.5-5.8W/9.5-11.8W
Wavelength ：450nm
Beam Shape ：0.08X0.08mm

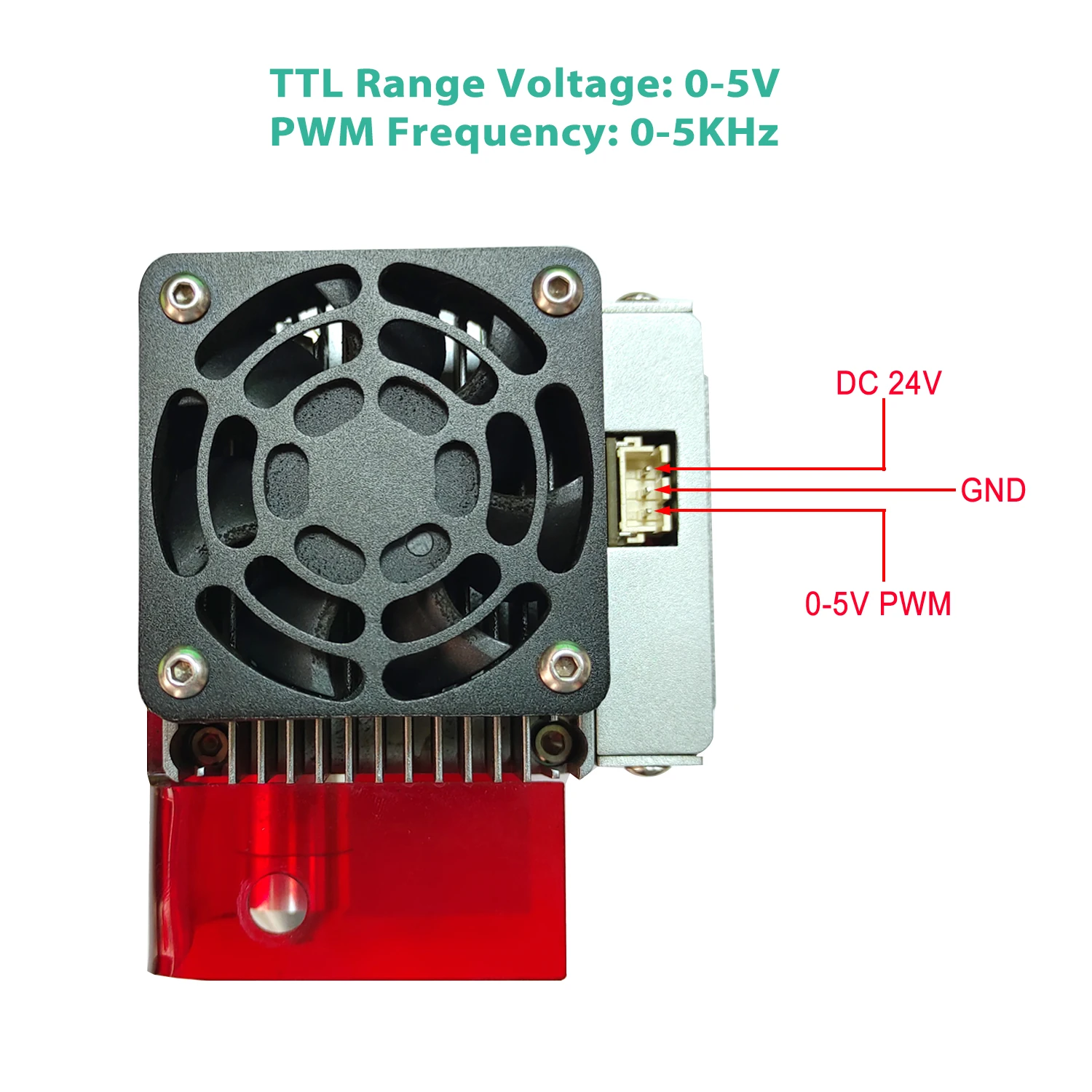

TTL&PWM Modulation：YES, Compatible with Both TTL & PWM Modulation
PWM/TTL Input ：DC3.3V-12V
Drive Mode：External ACC
Safe temperature range：<60 ℃
Module weight ：200g ( The lighter the weight, the smaller the move inertia, the better the performance )
Life Time：10000 hours
Features
【Wide Compatibility】The attached adapter cable and dovetail slider can help the ZBAITU C80-EAIR laser module to be compatible with most laser engraving and cutting machines on the market, also compatible with other machines that use 12V input voltage, you don’t need to repurchase a laser engraving machine to improve engraving and cutting efficiency, high cost performance;
【Air Assist】ZBAITU C80-EAIR Air assist laser module can blow away scrap and smog during engraving and cutting, boost effect, engraving and cutting more refined, reduces yellow smoky marks on the edges of the cutting line, the most important is to reduce the pollution to the lens to ensure the service life of the laser module;
【High Power】The ZBAITU C80 EAIR laser engraving module has a 10W laser output power, it can quickly engrave metal, wood, leather, glass, and acrylic etc. The C80 EAIR laser cutting machine module is also excellent on cutting function, it can cutting 5mm plywood in one pass;
【Ultra Accuracy】The newest FAC technology compresses the laser point of the ZBAITU C80 EAIR laser module to 0.08mm, the lines for engraving and cutting are finer, fine cutting lines can effectively reduce the burn marks left during cutting, making your creations quality is higher, details are impeccable;
【Eye Protection】A dark red acrylic plate is installed on the ZBAITU C80 EAIR laser module, it can filter the irritation of high-intensity laser to the eyes, protect the eyes from laser damage, you can rest assured to appreciate the engraving process.
ZBAITU C80 80W Laser Module Kit, 10W Optical Diode Laser Module for Laser Engraver Cutter, 10W Laser Head for DIY Metal Wood Leather Acrylic Glass, Compatible Most Laser Engraving Cutting Machine, 12V
