LASER TREE 5W Optical Power Laser Head For CNC Engraver Machine Wood Cutting DIY Tools 450nm TTL/ PWM Blue Light Laser Module



Recommend : LT-K1-MINI-10W (10W Laser Engraving Machine)

Module 1: LT-40W-AA(optical power:5W, Fixed Focus:45mm)

40W Fixed Focus 45mm Laser Module with Air Assist



Product Description:

LT-40W-AA, as a 40W laser module with air assist, can effectively get clean-cut edges, improve cutting performance and increase the service life of lens.



Product Features:

1.Beam compression technology, 5W optical power laser module

2.Excellent Cutting Ability: Cutting 4mm thick plywood by one pass at a Speed of 190mm/s.

3.Very Fast Engraving Speed: 45mm focal length, engrave 304 stainless steel at speeds up to 6000mm/min.

4.Magnetic eye protective cover: Eye protection and easy disassembly.

5.Can be installed on Ato**tack, ZBAIT*, Ortu*, Two Tr**s and other models of DIY laser engraving machines.
For various 12V 3PIN laser engraving machines, plug and play. For 12V 4PIN machines, just use the driver adapter to connect.



Specification:

Output optical power: 5W

Material: aluminum alloy + plastic

Light color: blue

Wavelength: 450nm

Spot form: Punctiform, fixed focus

Input voltage: 12V 1.8A(1.5A-2A)

Interface: XH2.54-3PIN socket

Modulation: 0/3-12V 0-5kHz TTL/PWM (0V off, 3-12V on)

Item size: 40*40*141.4mm

Product weight: 255g

Beam Compressed Spot–30*130um

More Precise with 5W Compressed Spot

Professional Air Assist

Air tube outer diameter: 8 mm; inner diameter: 6 mm

Powerful High Speed Air Assist

Get clean-cut edges and improve lens life and module cutting performance

Cutting Through 4mm Bass Plywood By One Pass

Ultra-Fast Engraving on Stainless Steel-800mm/min



Reference Settings for Cutting

For cutting, the ideal position of the focal point is in the middle of the material, the focal length of LT-40W-AA is 45mm, the length of the air nozzle is 38mm, so the focal point position is 7mm(45-38mm) below the air nozzle.
Cut 4mm plywood, the distance from the air nozzle to the surface of the material should be 7mm-4mm/2=5mm.
Put a 5mm thick focus fixing plate between the nozzle and the board for the best cutting point.

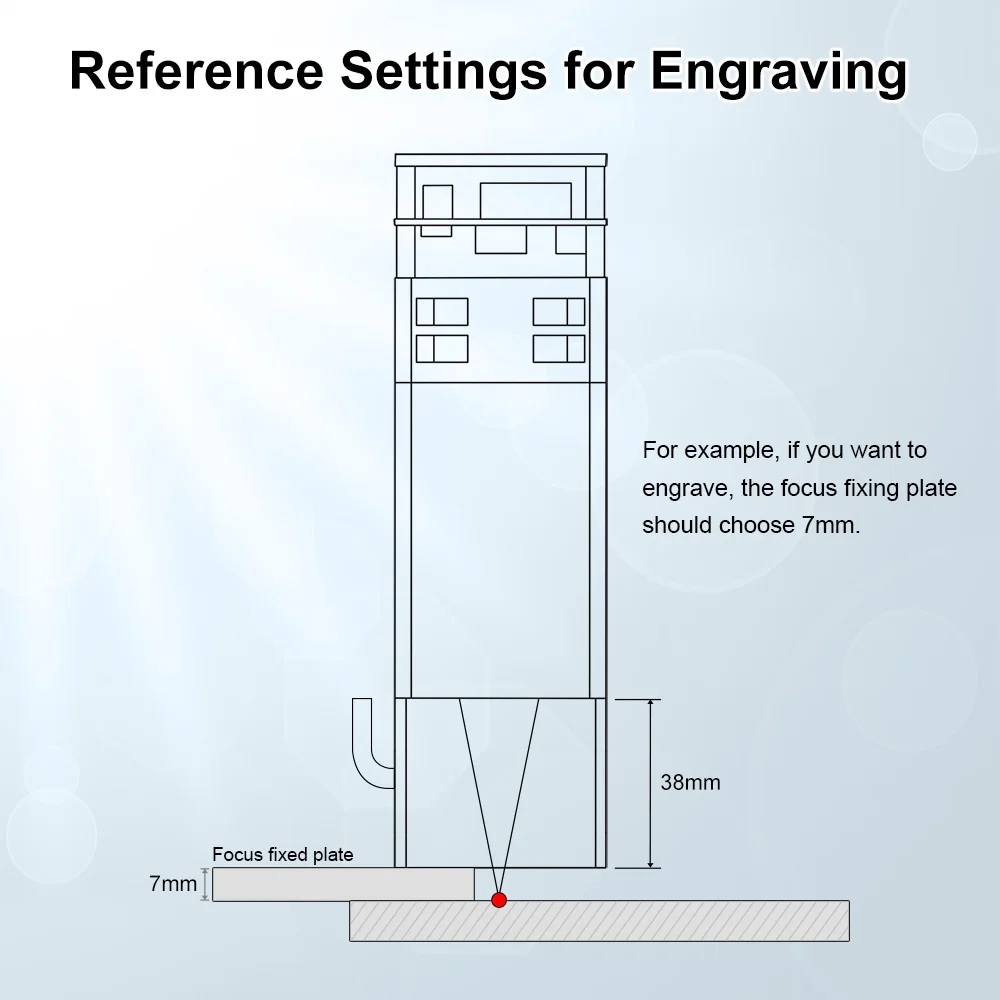

Reference Settings for Engraving

For engraving, the focal point is at the surface of the material, the focal length of LT-40W-AA is 45mm, the length of the air nozzle is 38mm, so the focal point position is 7mm(45-38mm) below the air nozzle.
Put a 7mm thick focus fixing plate between the nozzle and the board for the best engraving point.



Widely Compatible Design

Can be installed on Ato**tack, ZBAIT*, Ortu*, Two Tr**s and other models of DIY laser engraving machines

Package with One More Protective Window GlassConvenient for Maintenance



Module 2: LT-40W-A-GOLD(optical power:5W, Adjustable Focus)Product Description

The Blue Laser Module is designed for CNC mill. With 450nm wavelength, it is an effective tool for laser engraving and laser cutting. they can engrave and cut a variaty of materials.

Features:

Blue Laser Modual — Professional laser head with high speed and high stability. Bright blue-violet light, easy for locating when engraving.

Adjustable Focuse — Adjustable laser head, easy to adjust, ensure engraving with good quality and high efficiency.

Easy to Assemble — Small and compact, engraving material —Wood, leather, bamboo, rubber, stainless steel,etc.



Specifications:

Effect Laser Power: 20W

Material: Aluminum Alloy+Plastic

Light Color: Blue

Wave Length: 450nm

Facula Form: Punctiform, Adjustable Focus

Input Voltage: 12V 2A

Interface Parameter: Support TTL signal controls power

Item Size: 9.5*3.5*3.5cm

Package Size: 14*6.2*6.2cm

Item Weight: 146g

Package List:

1 * Laser Head

1*3pin Cable

LD+FAC+C-Lens

More Precise with 5W Compressed SpotSuitable for Engraving and Cutting

Cutting 5mm Basswood PlywoodBy One Pass
The Best Focus Length For cutting

Focus Length:35mmThe Best Focus Length For Engraving

Focus Length:20mm

Ultra-fast Engraving on Stainless Steel-30mm/s

Widely Compatible Design

Suitable for ATO*TACK, OR&UR laserengraving machine, or other DlY type machines



Module 3: LT-40W-F23(optical power:5W, Fixed Focus:23mm)

40W Fixed Focus 23mm Laser Engraving Head



Product Description

Upgraded Laser Module, LASER TREE 23mm Fixed Focus Balance Engraving and Cutting Head, Laser Engraver Module 5W Optical Power with Metal Wind Gathering Hood, Suitable for Laser Engraver Machine



Product Features:

1.Engraving Mirror Stainless Steel, no need to Paint Black.

2.Very Fast Engraving Speed: 23mm focal length, engrave 304 stainless steel at speeds up to 800mm/min.

3.Excellent Cutting Ability: Cutting 4mm thick plywood by one pass at a Speed of 80-100mm/s.

4.Magnetic eye protective cover: It allows you to see the laser module in action without the need for eye protection and is easy to disassemble without screws.

5.Metal cutting air outlet: Which does not generate heat and can resist flames.



Specification:

Material: Aluminum alloy

Effect Output Power: 40W

Output Optical Power: 5W

Electric Power: 12V 1.8A(1.5A-2A)

Focus Length: 23mm

Interface: XH2.54-3P socket

Power Adjustable: Support 5V PWM modulation

Function: Engraving/Cutting

Module Size: 40*40*121mm

Module Weight: 240g



Metal Wind Gathering Hood



Prevent flames from burning

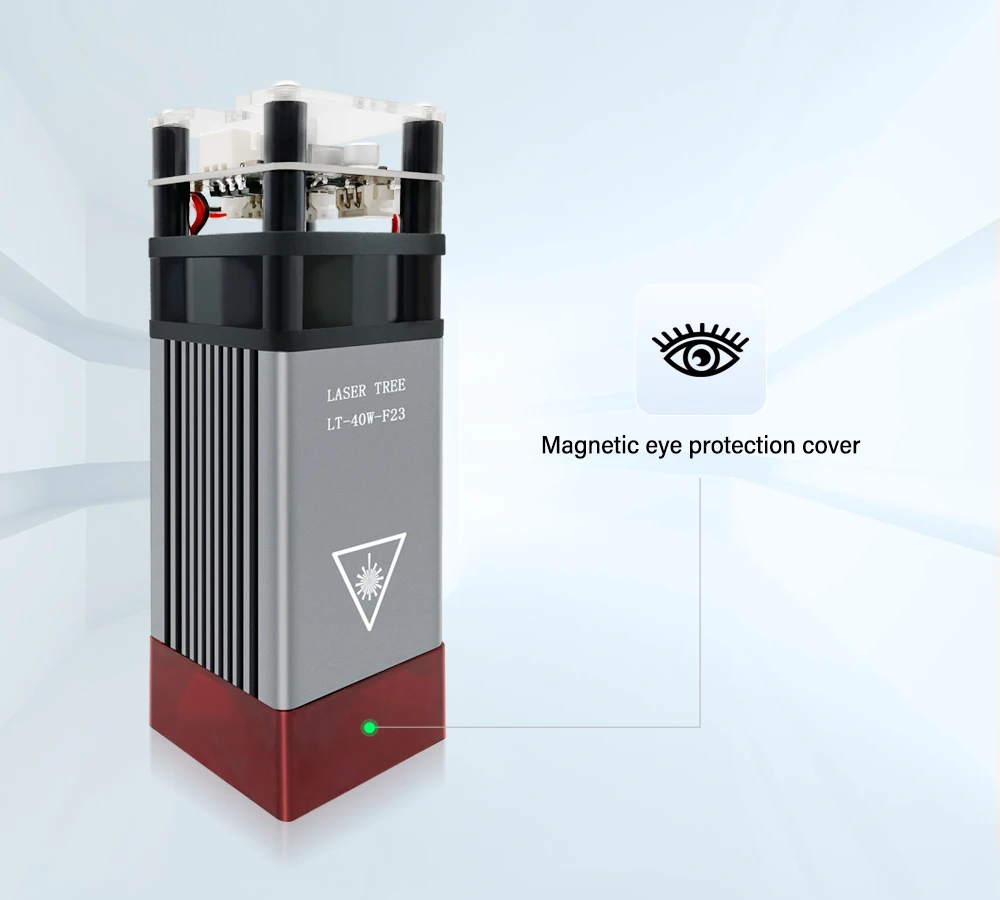

Magnetic Eye Protection Cover



Watch laser engraving without wearing goggles

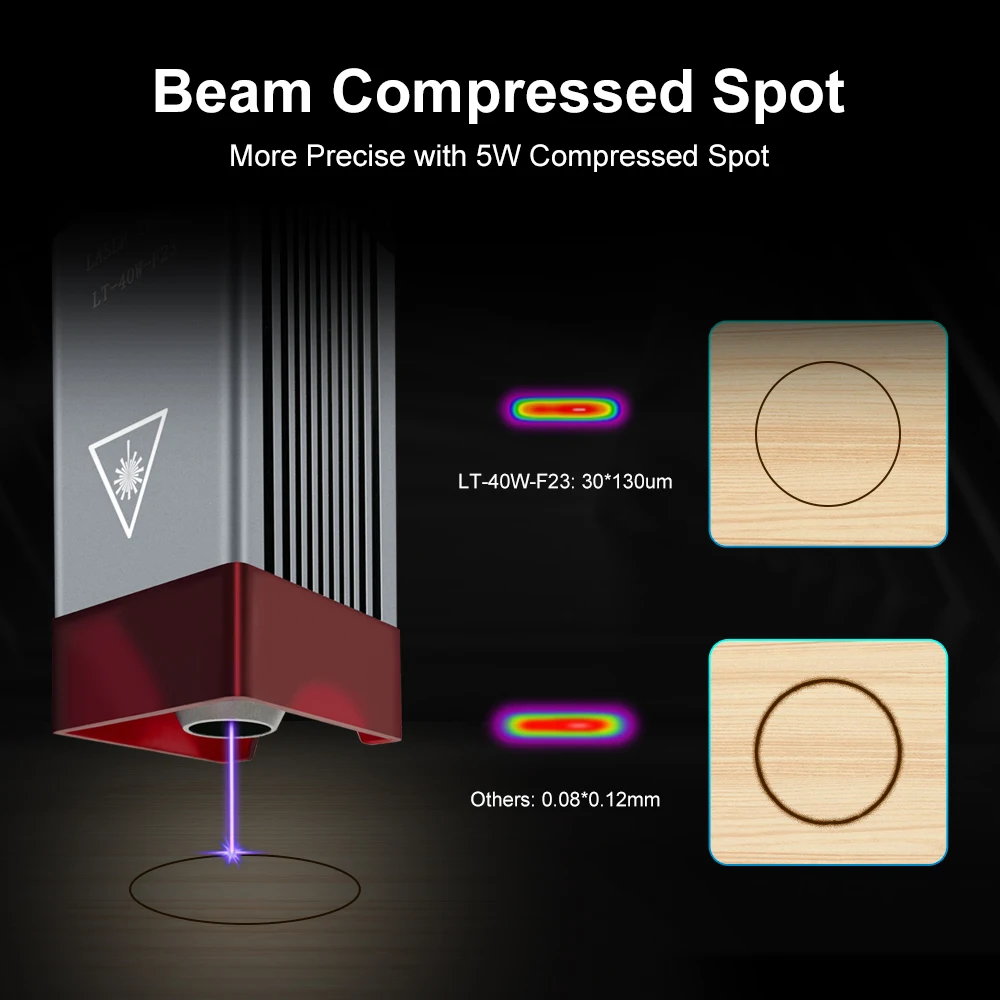

Beam Compressed Spot



More Precise with 5W Compressed Spot



Extreme Engraving



Ultra-fast engraving on stainless steel- 800mm/min

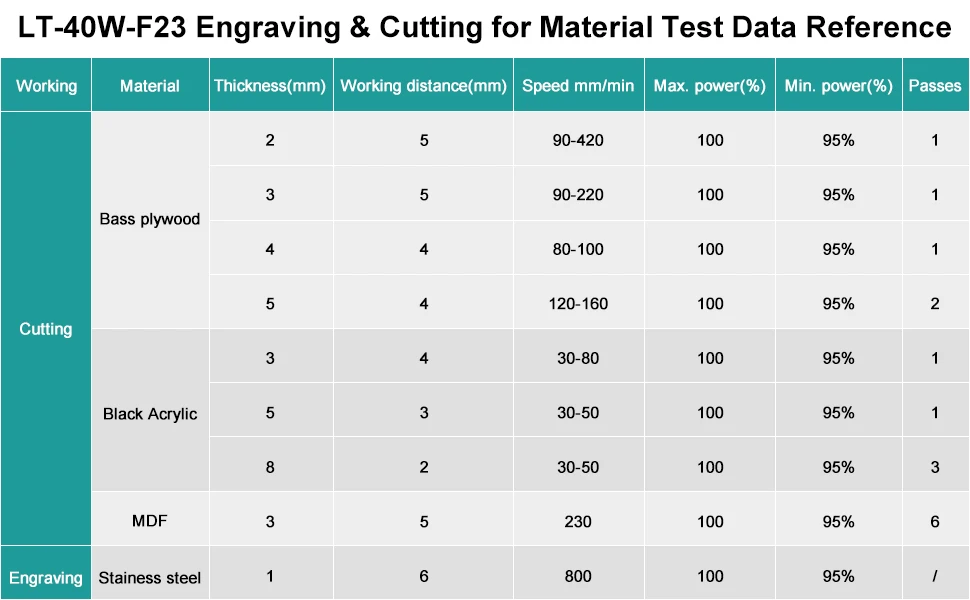

Reference Setting for Engraving

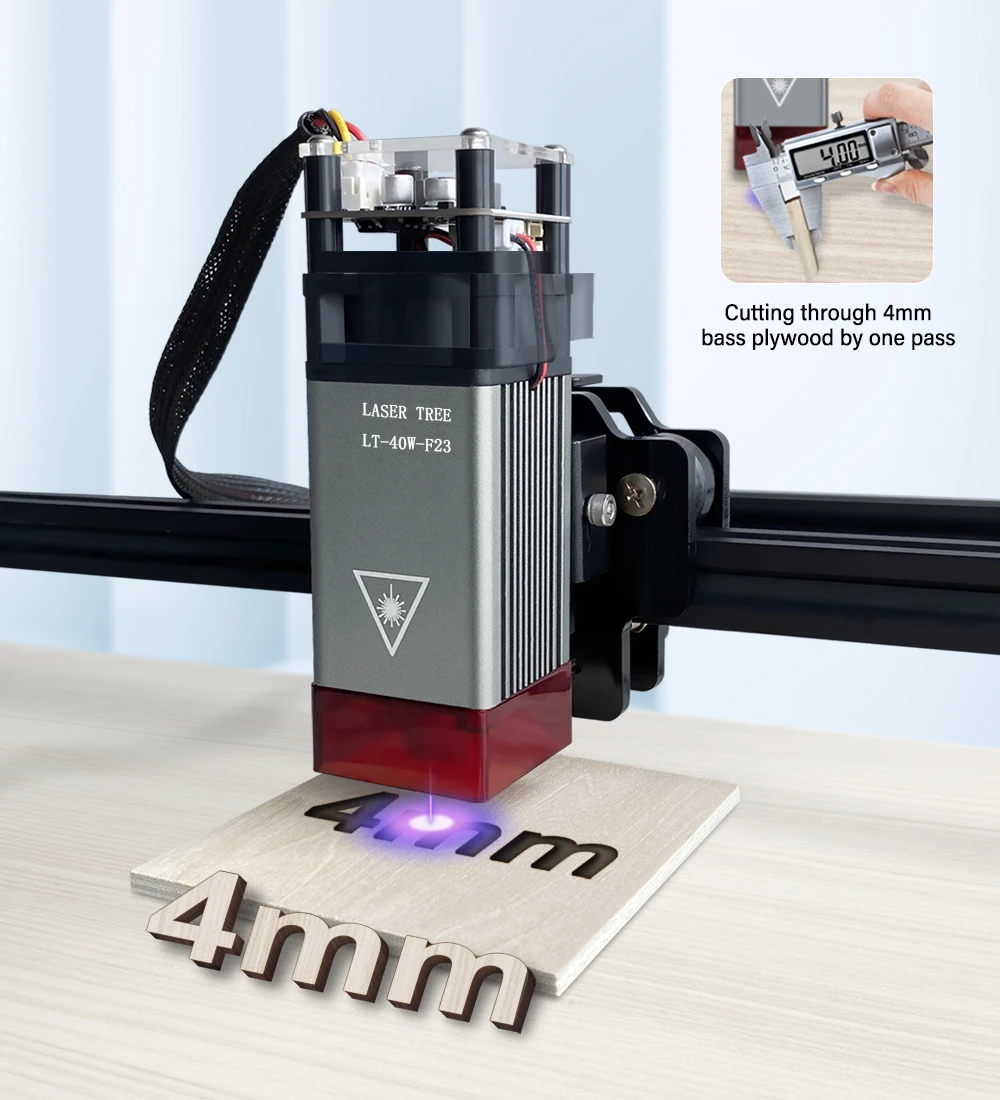

Good for Cutting



Easily create more fabulous works

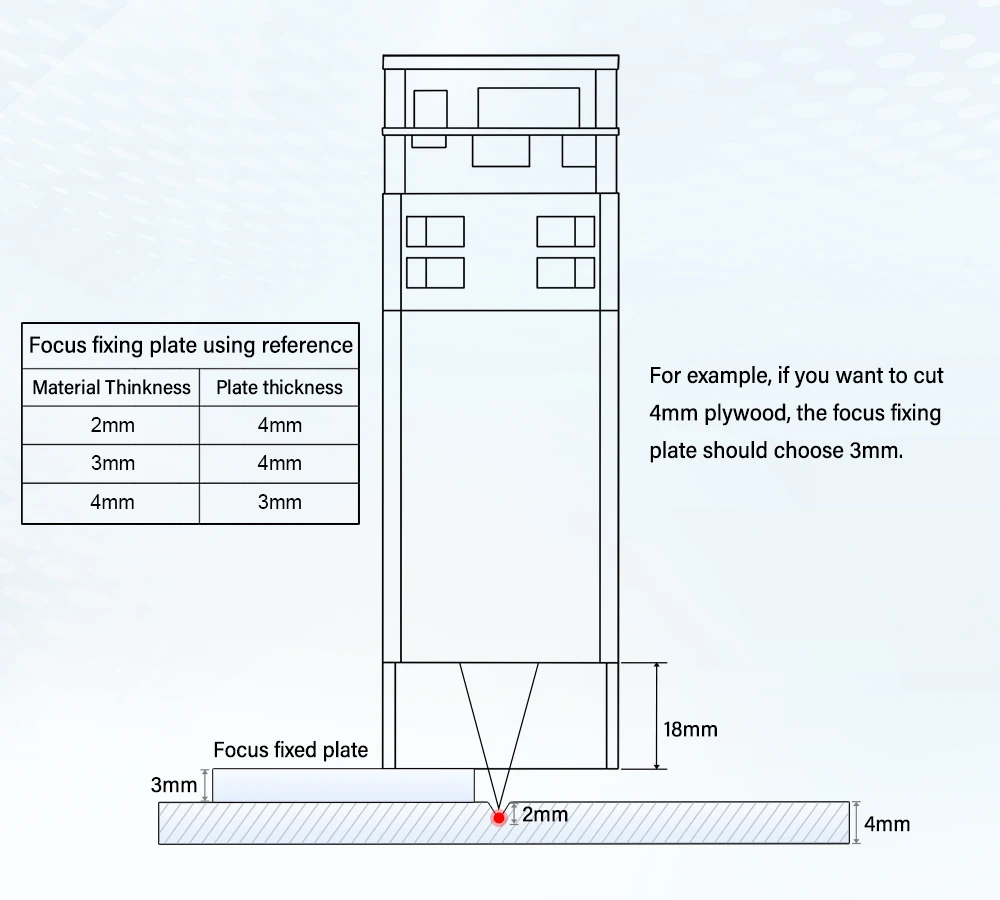

Reference Setting for Cutting



Perfect Detail



Ultimate detail design makes your creation easier



Engraving & Cutting



Various Available Materials
