LASER TREE 30W Optical Power Laser Module with Air Assist 6 Diode Laser Heads for CNC Engraver Machine DIY Cutting Wood Tools
Features:
1. Ultra High Power
LaserTree K30 is a true 30W+ output optical power laser engraving and cutting module. It uses beam compressed technology to combine six 5.5W laser diodes into a powerful laser beam with 30W+ laser power.
2. Powerful Cutting Ability
15mm basswood plywood: 180mm/min, one pass
15mm black acrylic: 35mm/min, one pass
20mm pine wood: 120mm/min, one pass
9mm MDF: 300mm/min, 2 passes
3. Built-in Air Assist Airway & Dual Fan Cooling Design
1>Built-in air assist airway to get clean-cut edges, improve cutting performance.
2>Excellent heat dissipation makes the laser module maintain a stable cutting ability and prolong service life.
4. Working Status Indicator
The electrical connection status can be easily checked by the “Power” and “Signal” LED indicator.
5. Temperature Display & Alarm Function
Excessive working temperatures can reduce the life time of the laser head at an accelerated rate.
LaserTree K30 create a solution with working temperature display,so that you can check the internal temperature of the module easily. When the working temperature of laser module over 55 ℃, it will sound an alarm through the buzzer.
6. Red Cross Line Locating
The working frame can be positioned by red crosshair, it is helpful for improving the convenience of the secondary cutting and engraving as well.
7.Super Fast Egraving Speed
3 times engraving speed compare with 10W laser power module.
8. Copper Core Protection Lens.
Easy to clean and replace when the lens is contaminated or dusty.
9. Laser View Window
Anti-blue light view window with optical glass material, protective your eye from blue light, no fear of fiames.
10. Widely Compatible Design

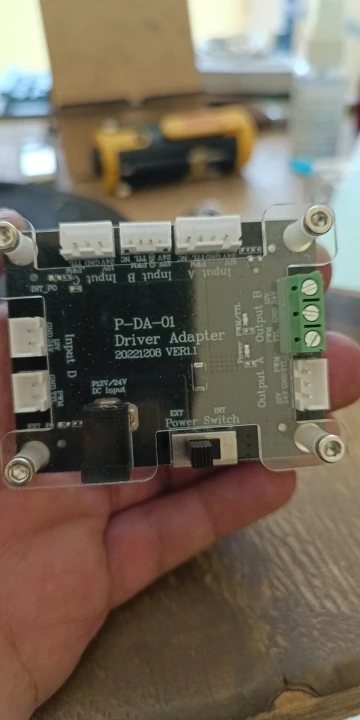

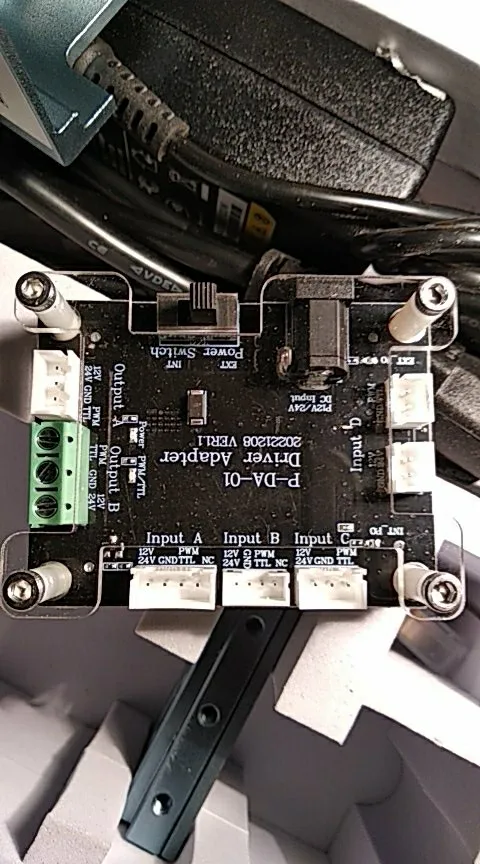

In order to improve the compatiblity to different laser engraver machine, K30 provide a solution by adapter board for electric compatibiliy, and sliding plate with multi holes for installation compatibility.
LT-K30 laser module can be installed on Z*aitu,O*tur,Tw* Trees,S*ulpful9, Xtool, A*omstack and other models of DIY laser engraving machines.
(please contact us if you are not sure about compatibility)
With Air Assist VS No Air Assist
Powerful Cutting Ability
15mm basswood plywood: 180mm/min, one pass
15mm black acrylic: 35mm/min, one pass
20mm pine wood: 120mm/min, one pass
9mm MDF: 300mm/min, 2 passes
Working Status Indicator
Power indicator: it is red when power supply is connected.
Signal indicator: it is green when signal is received.

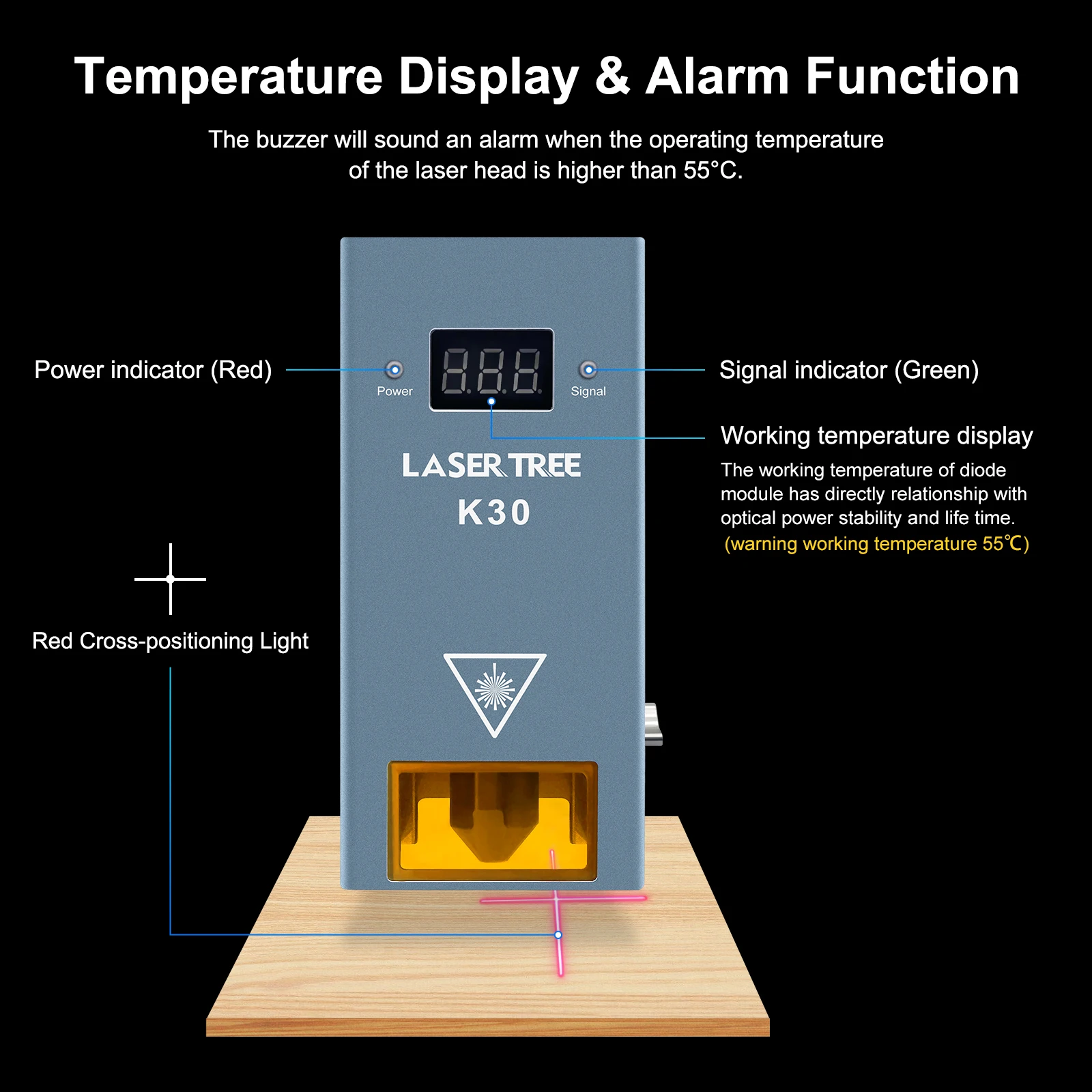

Temperature Display & Alarm Function
1>The buzzer will sound an alarm when the operating temperature of the laser head is higher than 55°C.
2>Use in high temperature environments can affect the long term life of the laser head.(Suggested environmental temperature <35C.)
Red Cross Line Locating
The working frame can be positioned by red crosshair, it is helpful for improving the convenience of the secondary cutting and engraving as well.
Super Fast Egraving Speed
3 times engraving speed compare with 10W laser power module.
K30W Metal Engraving
Super powerful laser beam oxidizes the metallic surface in an instant, bringing vivid colors to the engraved metal.
40mm Fixed Focus Laser Module
1>Anti-blue light view window with optical glass material, protective your eye from blue light, no fear of fiames.
2>Equipped with fixed focus lever.
Easy-to-change Protection Window Design
1>Copper Core Protection Lens.
2>Easy to clean and replace when the lens is contaminated or dusty.
Easy to set the focus
Focus bar design makes it easy to set the focus of the module.
For Engraving
Please make the focus locate on the engraving material surface.
For example, if you want to perform engraving, just make the focus on the engraving material surface and adjust the fixed focus lever to 0mm.
For Cutting
Please make the focus locate lower than the cutting material surface.
For example, if you want to cut 10mm material, the focus should be 4mm lower than material surface, please adjust the fixed focus lever to 4mm.

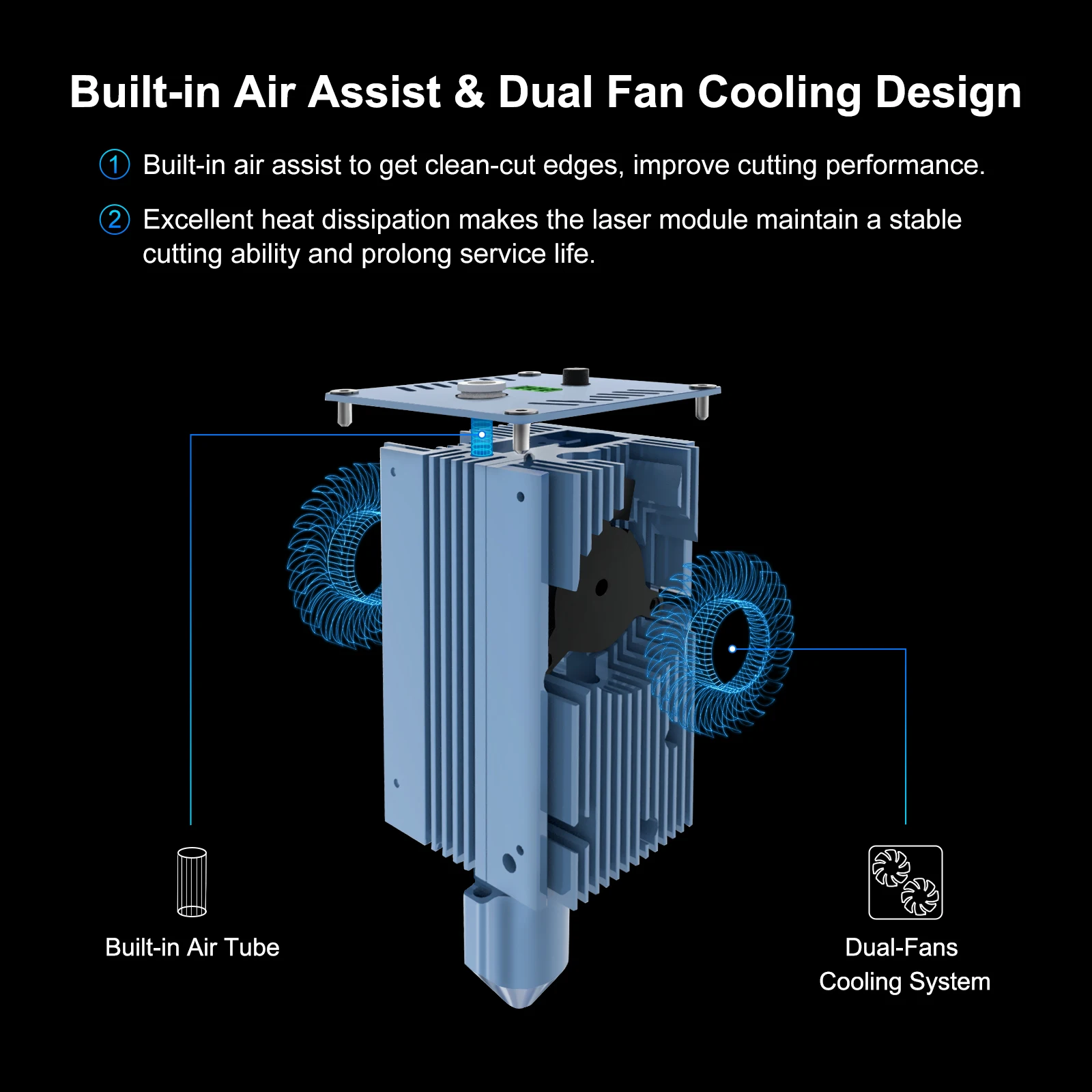

Built-in Air Assist & Dual Fan Cooling Design
1>Built-in air assist to get clean-cut edges, improve cutting performance.
2>Excellent heat dissipation makes the laser module maintain a stable cutting ability and prolong service life.
Lens Maintenance
When the laser module is not used for a long time, please ensure that the lens is not polluted by dust.
When you replace the air nozzle, please ensure that your operation will not pollut the lens. Finger prints or dust on the lens will weaken the output power of the laser module, or even damage the lens.
When you find the cutting ability decreases, the lens might be not clean. Please use a clean alcohol swab to clean it according to the following figure.
a***e –
Arrived very fast, excellent power to undertake in the laser cutting.
Color: LT-K30-US Ships From: CHINA
P***L –

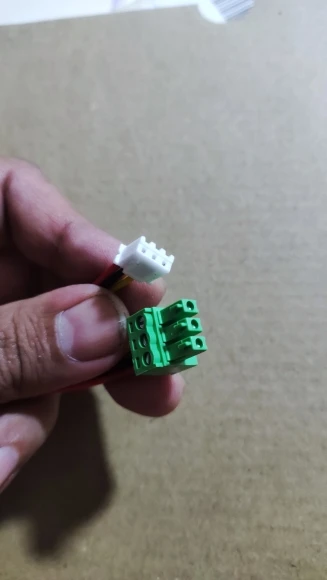

Good deal with the seller, the product arrived in less than a week, being me from peru; Only recommendation fix on the connector of your drivers, in my case there was one of 6 holes, that didn’t fit in, but it was my fault
Color: LT-K30-EU Ships From: CHINA
M***o –
Arrived my K30 I had a little lock problem, but the very attentive seller sent me another one that arrived before the stipulated deadline, now just test
Color: LT-K30-EU Ships From: brazil
AliExpress Shopper –
The product is beyond praise! checked it works perfectly
Color: LT-K30-EU Ships From: express
p***r –
Very fast delivery, very well packed. She arrived in perfect condition. Connected, proven works as it should. Small size but does a beautiful job. The big downside is the loud fans from cooling, after prolonged work they are simply cumbersome.
Color: LT-K30-EU Ships From: Poland
M***a –
Product of excellent quality, I am satisfied
Color: LT-K30-EU Ships From: brazil
h***y –
Super beyond Knife expectations, a save time on 3 mm plate cutting time, compatible installation. With my existing material thank you.
Color: LT-K30-EU Ships From: Poland
i***s –
Very good product! Indication laser engravers Brazil.
Color: LT-K30-EU Ships From: brazil
C***s –
The product arrived without polemma the poblema and that I lost a lens in less than 5 days, use air assistant for everything and did not understand what happened, I have a 19 watt module and I never spoil the protective lens of the laser, unfortunately with this K30 gave ESSS polemma, I still think it was a manufacturing defect, as it does not justify having happened in such a short time
Color: LT-K30-EU Ships From: brazil
I***i –
Everything came right and very fast. Indication of the channel “laser engravers Brazil”. I recommend it.
Color: LT-K30-EU Ships From: brazil
AliExpress Shopper –
The laser module really is very good, a little heavy for high-speed recordings but acceptable.
The only problem, it is slinding plate that comes with the kit has a great gap between the two pieces that takes the module out of the exact 90 degrees!
Really good crap machining.
Color: LT-K30-EU Ships From: brazil
l***r –
Everything working. Let’s the guarantee and time of that. If I have problems I will complain and put it here.
Color: LT-K30-EU Ships From: brazil
j***v –
The product is powerful, and it complies with the cut date of your page, apart I bought a 30L air pump, it seems that it needs a 50L/min because it leaves marks on the cuts, only as an improvement could he say that the focal length should be greater, the rest is perfect so far
Color: LT-K30-US Ships From: CHINA
j***o –
Great product super fast delivery
Color: LT-K30-EU Ships From: brazil
С***а –
I got everything except a spare lens.. So I understood them. Deliberately do not put or pull the lens out of the kit. And still the weight does not match the box.. The box is 3.8 but actually 2.6…. I hope the laser is not fake and will last a long time…. The delivery is generally Super👍For 3 days to Voronezh. But the box is damaged by the wrinkle is very normal so the angle!!! 100% dropped her.. Shipping cdek .. Courier to door.
Color: LT-K30-EU Ships From: express
Б***ч –
Sent the order on time, as I understand from the warehouse in Russia. Replaced them with a 10-Cotton module. The food was served on the marterine (standard twotrees). While I like everything, we will continue to test. In the photo plywood 4mm. 1/2 variety.
Color: LT-K30-EU Ships From: express
I***a –
I haven’t tested it yet, I’m going to test it today
Color: LT-K30-EU Ships From: brazil
