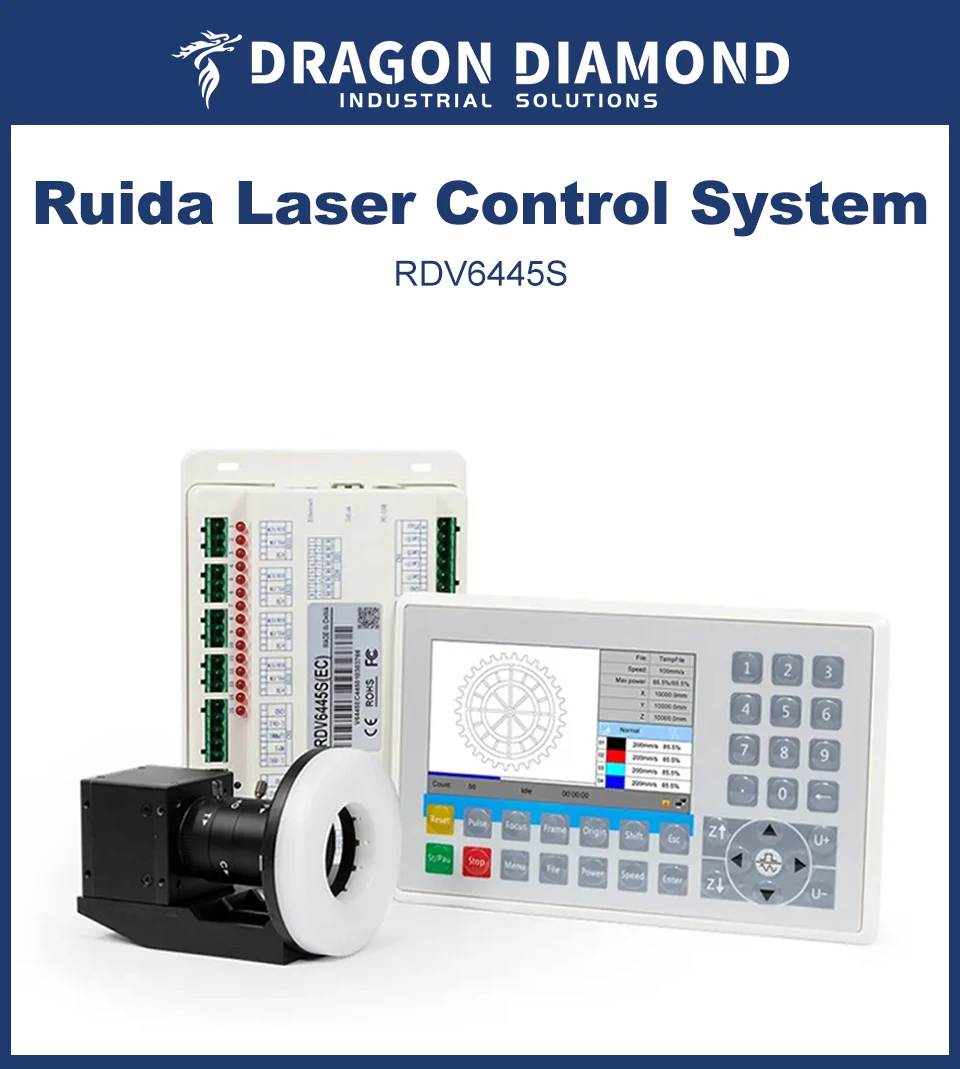

Ruida RDV6445S CCD Visual Camera RDVision Control System Controller For Co2 Laser Cutting Engraving Machine Upgrade RDC6445S

Ruida RDV6445S CCD Visual Camera RDVision Control System Controller For Co2 Laser Cutting Engraving Machine Upgrade RDC6445S

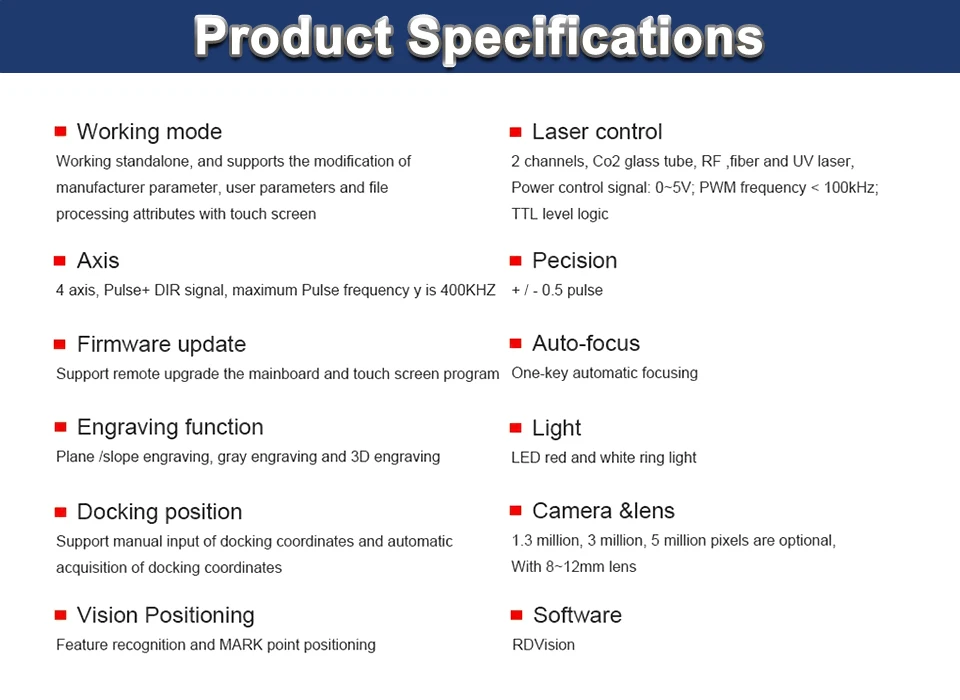

Technical Parameters:

● Laser control signal, and provide adjustable analog voltage, adjustment range is 0~5V.
● PWM frequency is between 2KHz to 50KHz, the duty cycles is from 1% to 99%.
● Pulse + dir and +/-pulse are available, pulse effective edge can be set, the maximum pulse frequency is 500KHZ.
● Linear /circular/B Spline interpolation precision is +/-0.5 pulse
● Image process speed＞25 frame/s
● Position & identification time of single image is less than 50ms
Introduction:
RDV6442G vision cutting system is based on the RDV644XG motion control platform.Combined with advanced graphic image identification and positioning algorithm, especially developed for the automatic identification laser cutting field. This product can be selected the color camera with 2.0 mega pixels.
Application Area:
Visual positioning, trademark cutting, image analysis
Functions:
● Feature image positioning
● Mark point positioning
● Contour identification and cutting
● Ethernet data transmission with data safety verification to ensure the data accuracy when at high speed data transferred.
● Various signals and sizes operation panels for selection.
● Self-adaption identifying path planning

Focus on non-metal cutting, suitable for leather, fabric, sign and 3C application fields.
