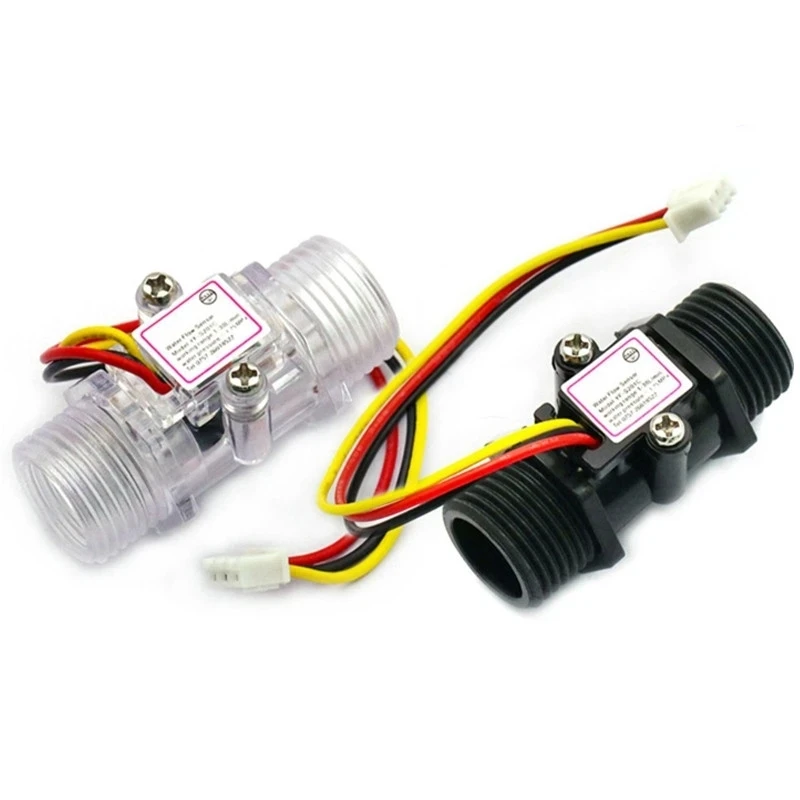

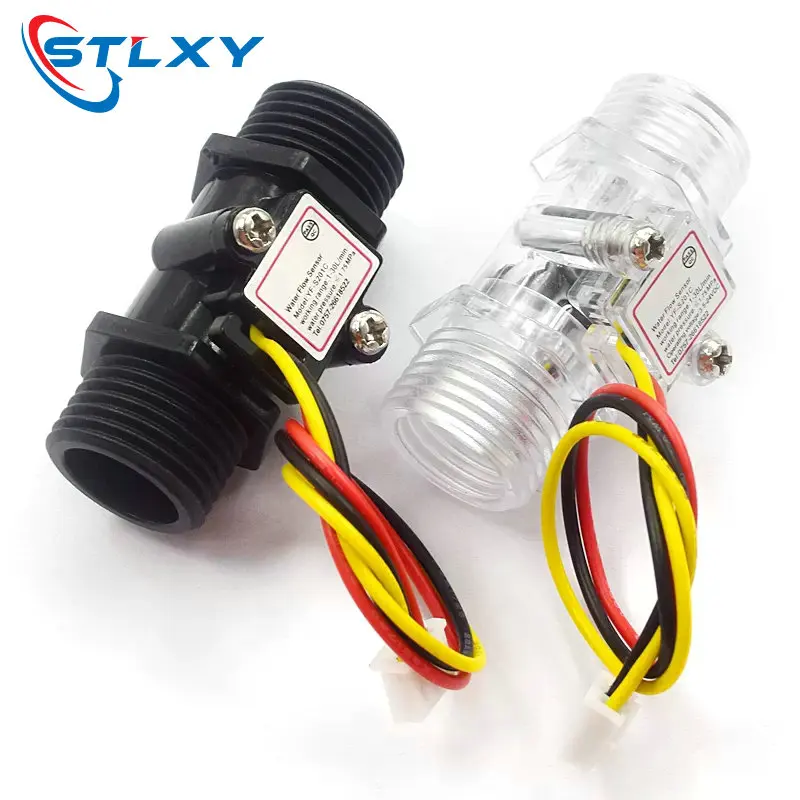

Water Flow Sensor Switch G1/2



G1/2 Plastic Water Flow Sensor meter Turbine Hall Flowmeter for Arduino Easy to Measure Water / Flow Rate

Description:

Water flow sensor is mainly consists of plastic valve body, rotor assembly and Hall Current Sensor

Can use for Water heaters, credit card machines, water vending machine, flow measurement device.

Inlaid with stainless steel impeller shaft, durable wearable

Seal Ring with the upper and lower force structure never leaks

Mounted vertically, should not exceed 5 degrees inclination.Temperature of Medium should not exceed 120°C

Specifications:

Material: Plastic / monocrystalline

Color: Transparent

Working voltage: DC 5～15V

Maximum operating current: 15 mA (DC 5V).

Working voltage range: DC 5~15 v.

Load capacity: ≤ 10 mA (DC 5V).

Work temperature: ≤ 80°C

Work humidity range: 35%~90%RH (no frost)

Allowing pressure: pressure 1.75Mpa

Storage temperature: -25~+80 ° c

Save humidity: 25%-95%RH

Flow Range: 1-30L/min

Insulation resistance:> 100MΩ

Accuracy (in 1 ~ 30L MIN): ± 10%

Flow pulse characteristics (5xQ): Q = L / Min ± 3%

Output pulse duty cycle: 50% ± 10%

External threads: Approx. 1/2″

Interface Type:1/2″(1/2″ Tubing)

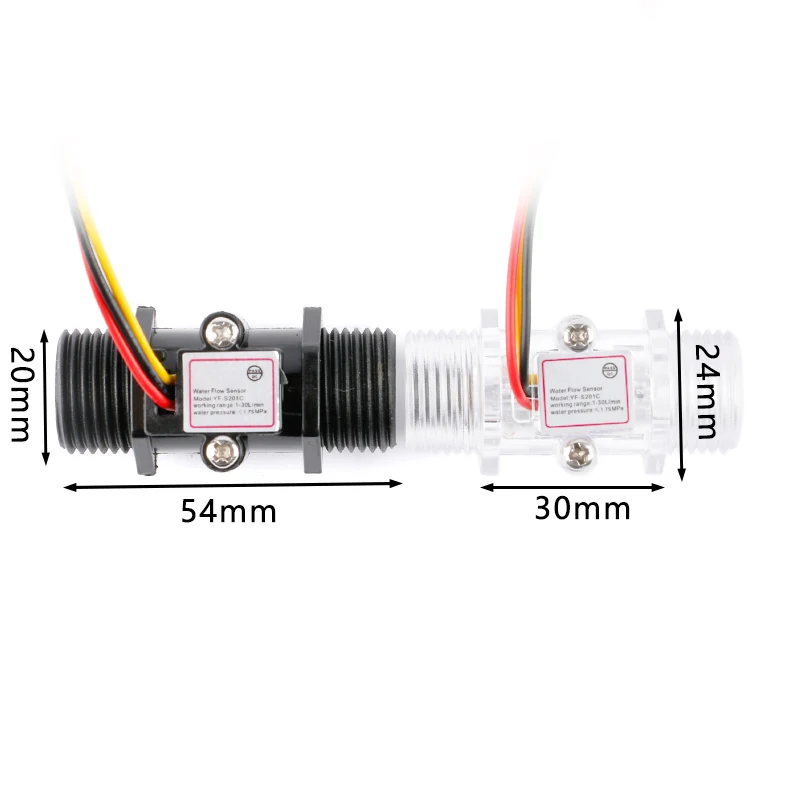

Dimension:54 x 29mm/2.13 x 1.14″(L x W)

Quantity: 1 Pcs

Connection mode: Red positive(IN), black negative(GND), yellow signal output(Out)

Note:

1.Transition: 1cm=10mm=0.39inch

2.Please allow 0-3cm error due to manual measurement. pls make sure you do not mind before you bid.

3.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package Include:

1PC x Water Flow Sensor G1/2″ Fluid Flow Meter Water Control Transparent Enclosure
